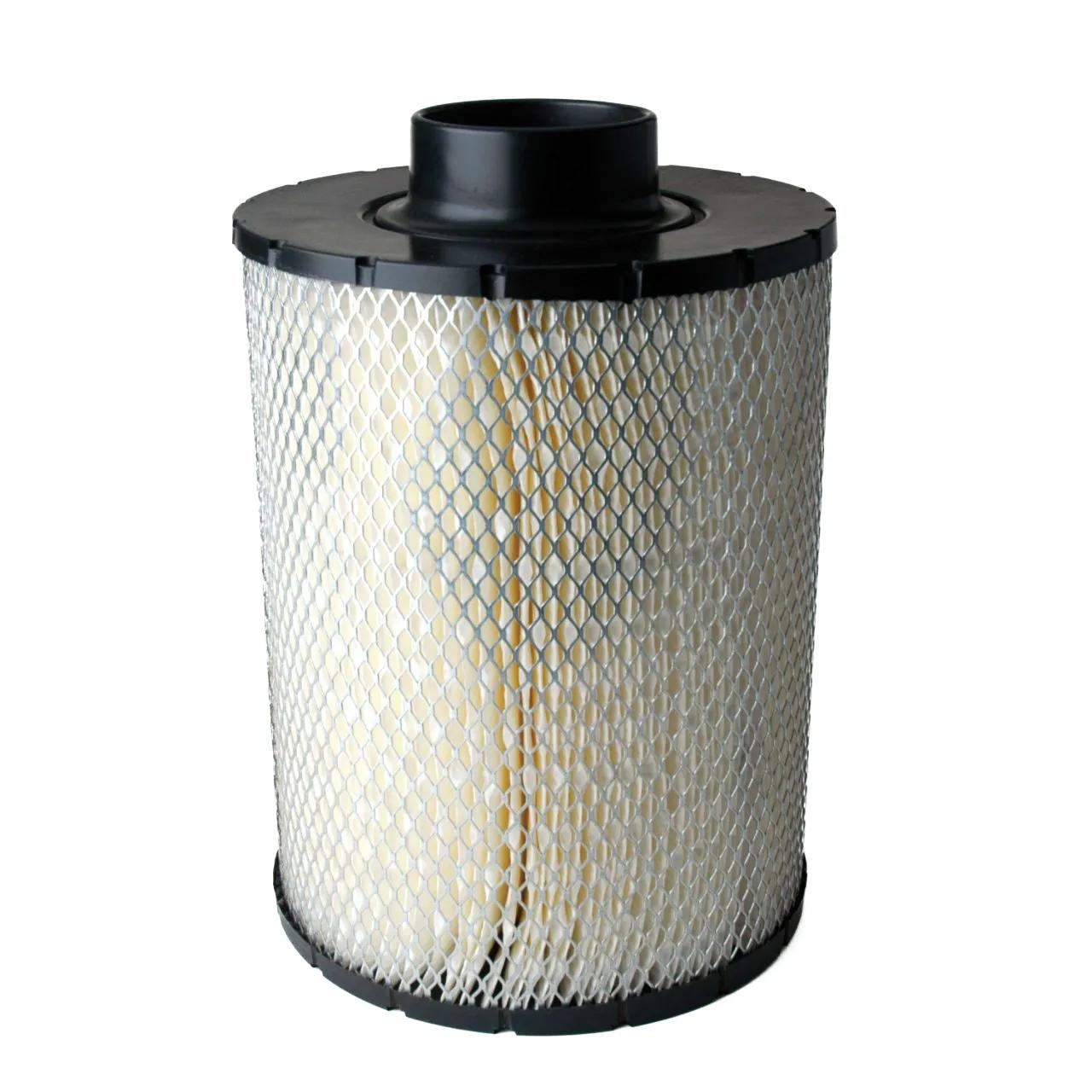

Air Filters L: 10,98 in
#DONB085001
Specifications
| Diameter | 8.5 in (215.9 mm) |
| Diameter Range | 8 to 9 in |
| Efficiency (Percent) | 99.9 Percent |
| Efficiency Test Std | ISO 5011 |
| Family | ECB |
| Length | 10.98 in (278.9 mm) |
| Outlet Diameter | 3 in (76.2 mm) |
| Rated Flow High Range | 388 cfm (11 m³/min) |
| Rated Flow Low Range | 275 cfm (7.8 m³/min) |
| Rated Flow Mid Range | 335.49 cfm (9.5 m³/min) |
| Restriction HR | 7.99 IN H2O |
| Restriction HR (Metric) | 203 MM H2O |
| Restriction LR | 4.02 IN H2O |
| Restriction LR (Metric) | 102 MM H2O |
| Restriction MR | 5.98 IN H2O |
| Restriction MR (Metric) | 152 MM H2O |
| Standard Length | 10 to 11 in |
| Style | Round |
| Type | Primary |
Interchanges & Equivalent parts:
3I0001, AH1136, CA6817, LAF5807, PA2815, SVGAH1136, 140-2660, 16061230J, 2191-B085001, 3905326, 39824115, 46634, AF2038, AH1136FLG, DN B085001, DN B085001, DONB085001, SEFB851, 01402660, 121803, 1402660, 191803, 28174300, 288048001, 3789733, 546634, 57056, 6634, 88634, 89216, 94634, AHR81136, DNB085001, LA1712, WGA1136, WGA1136, 3905326, SEFB851, DN B085001, AF2038, DONB085001, DN B085001, AH1136FLG, 39824115, 140-2660, 2191-B085001, 46634, 16061230J, SVGAH1136, LAF5807, PA2815, AH1136, CA6817, 3I0001, 88634, 01402660, AHR81136, 288048001, 94634, 546634, 191803, 28174300, LA1712, 3789733, 121803, DNB085001, 1402660, 6634, 89216, 57056, KA150044, KC330006, SL12902, 1532A, HD1910, 20145, AH85001, 810019
