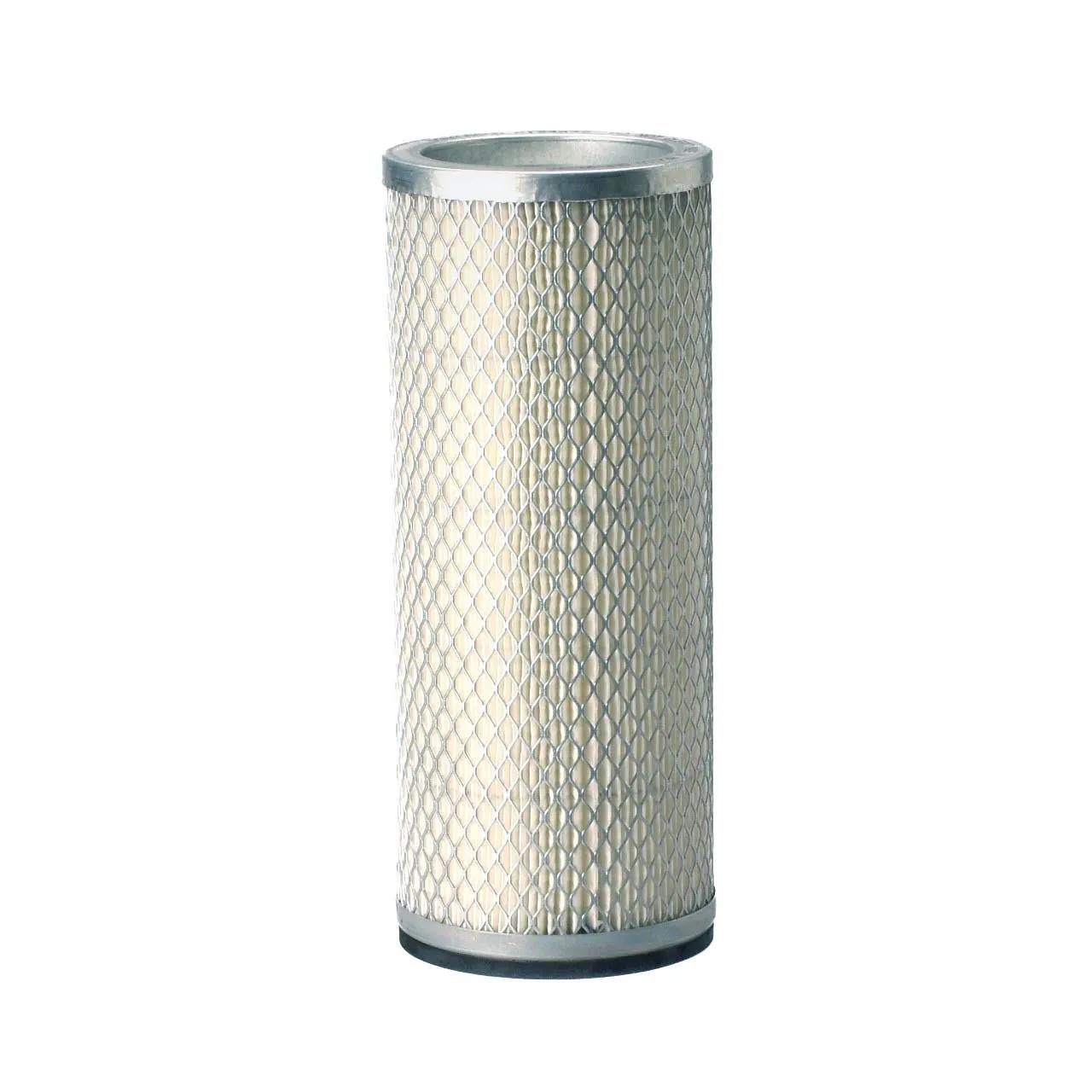

Air Filters L: 11 in, OD: 4,58 in, ID: 3,48 in
#DONP124837
Product Overview
Why Choose Donaldson Safety Filters?
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 4 to 4.99 in |
| Efficiency Test Std | ISO 5011 |
| Family | STB |
| Inner Diameter | 3.48 in (88.4 mm) |
| Length | 11 in (279.4 mm) |
| Outer Diameter | 4.58 in (116.2 mm) |
| Length Range | 11 to 11.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| ARM401 |
| ARM503 |
| PA1967 |
| CFM458 |
| 87386 |
| 87947 |
| 155 |
| 20090 |
| 910016 |
| AF487 |
| AFR8487 |
| CA584SY |
| CA7709SY |
| AF346 |
| A13581 |
| A4837 |
| HDA13581 |
| HDA4837 |
| E731LS |
| SA10437 |
| LA1918 |
| LA458 |
| LA600 |
| LAF503 |
| A466C |
| C1261 |
| EFPA722 |
| MA13 |
| FA162 |
| 2386 |
| 2947 |
| 124837 |
| 70053N |
| A43066 |
| AF2245 |
| AF3066 |
| HDA5073 |
| SL8870 |
| SFA0758S |
| 2701300 |
| 250D44 |
| 42947 |
| 207002080 |
| 72163296 |
| 1219 |
| 93947 |
| 451878 |
| 93386 |
| 30003627 |
| 537989 |
| P534844 |
| 1105718C1 |
| 634270C1 |
| 643270C1 |
| A47136 |
| A47138 |
| 3I0187 |
| 9Y6809 |
| 7212483700 |
| AP503HD |
| PMA503HD |
| AZA374 |
| AZA374T |
| 850 |
| 850AIR |
| AF850 |
| 72162546 |
| FLI6562 |
| 71909135 |
| 9576P124837 |
| DNP124837 |
| AHI1051 |
| FC403 |
| G124837 |
| ADG672 |
| HD7645 |
| 178011140A |
| 4238411 |
| 502828 |
| AT31227 |
| X4158656 |
| X4224553 |
| 980702C1 |
| 1142150310 |
| 1142150311 |
| 1142150311NT |
| 9142151771 |
| AR27823 |
| AR51923 |
| AT21337 |
| AT27823 |
| AT34895 |
| AT43963 |
| AT39121 |
| 110571BC1 |
| 3819807021 |
| EF777 |
| 21002 |
| SS032 |
| 303002136 |
| 300521505 |
| PA850 |
| QSA584SY |
| SFA368 |
| TM112 |
| 686720 |
| 25 |
| 2VMH5 |
| CH12257 |
| LAF22086 |
| A2922C |
| A466CF |
| A466CC |
