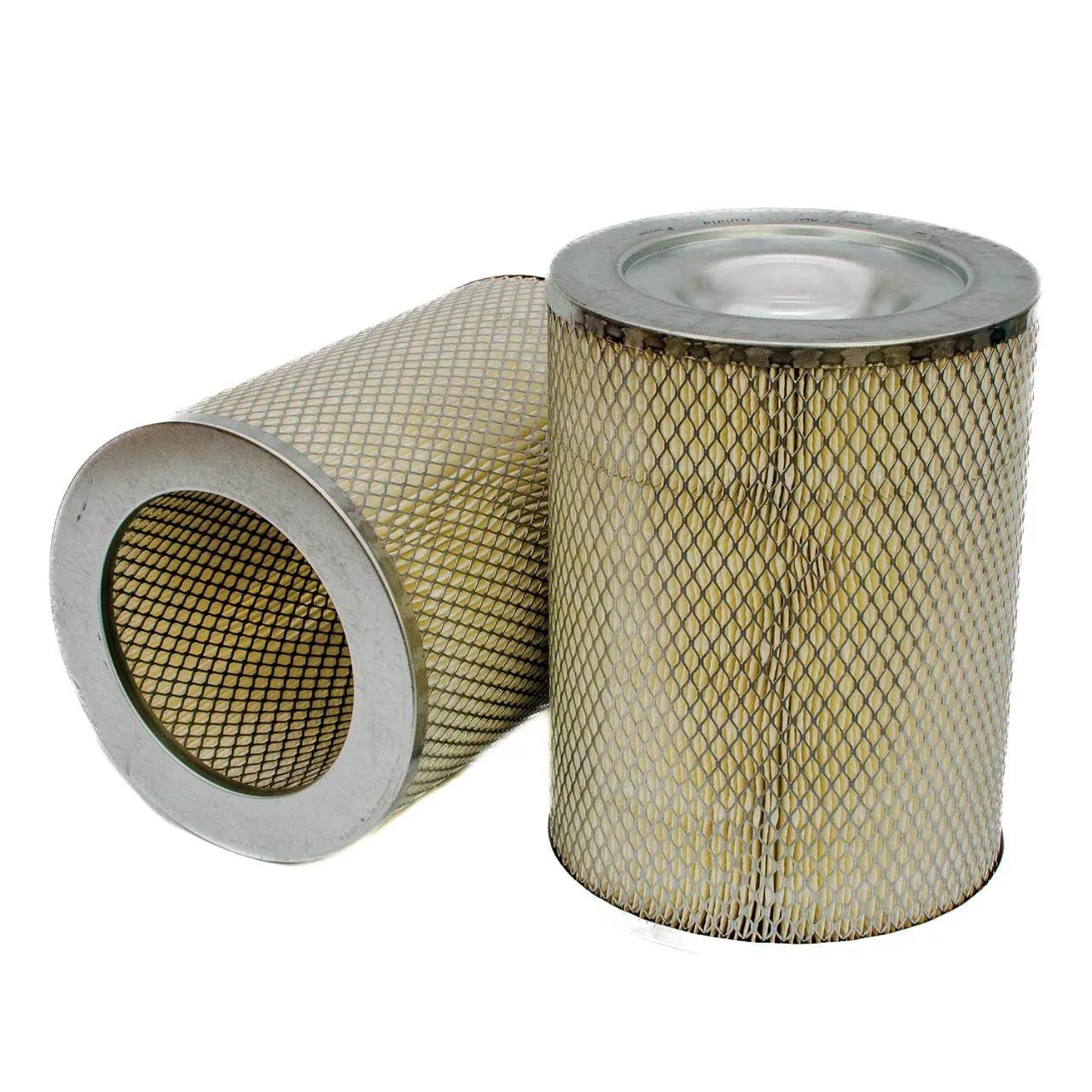

Air Filters L: 11 in, OD: 8,41 in, ID: 5,78 in
#DONP181071
Product Overview
AIR FILTER, PRIMARY ROUND
Features & Benefits
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.53 in (13.5 mm) |
| Diameter Range | 8 to 8.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Family | SBG |
| Inner Diameter | 5.78 in (146.9 mm) |
| Length | 11 in (279.4 mm) |
| Outer Diameter | 8.41 in (213.5 mm) |
| Length Range | 11 to 11.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| ARM101066 |
| ARM811 |
| ARM811K |
| 121950 |
| PA1614 |
| PA1614OPC |
| LL1614 |
| CFM111 |
| 87066 |
| AF66 |
| LAF66 |
| 3038 |
| 6038 |
| 1003 |
| 40089 |
| E1003 |
| 100003 |
| AF349 |
| AF349M |
| FA1066 |
| AFR8349 |
| CA225 |
| GA28 |
| GA28M |
| AF109 |
| A2523 |
| HDA1066 |
| HDA2523 |
| SA10299 |
| KC225014 |
| LA111 |
| LA15 |
| A695 |
| LAF668 |
| LAF66A |
| LAF66B |
| FA126 |
| 2066 |
| 101066 |
| 70092N |
| 6949686 |
| A42121 |
| AF2063K |
| AF2121 |
| HDA5278 |
| SL6335 |
| SFA1071 |
| U01066 |
| U06271 |
| 42066 |
| DT1066 |
| PC170 |
| A285C |
| A285CL |
| 1093100M91 |
| 71136161 |
| 113616 |
| 1136161 |
| 11328481 |
| 1132849 |
| 1136191 |
| 1336161 |
| 301799 |
| 3039921 |
| 71132848 |
| 71132849 |
| 1086 |
| 299 |
| 93066 |
| 988 |
| AW035125 |
| PGF17151 |
| PGF17747 |
| E2123 |
| 895985 |
| E230011 |
| E380039 |
| 19870 |
| 853521020 |
| 853521037 |
| P101066 |
| P250532 |
| 1414261 |
| 4502874R91 |
| S0250532 |
| XA83965 |
| 687742 |
| 3I0822 |
| 3R1271 |
| 3R2253 |
| 661433 |
| 682995 |
| 9Y7815 |
| 7218107100 |
| 000P1982 |
| 3PS2649 |
| P1982 |
| P198255 |
| 1722458 |
| 895989 |
| AWO35125 |
| B427F510 |
| PCA225 |
| SD802F513 |
| SD802F544 |
| SD802F546 |
| AP101066K |
| PMA101066K |
| AG317 |
| AZA505 |
| AZB050 |
| DU1000S |
| 9528 |
| 150773 |
| 150778 |
| 151606 |
| 163978 |
| 299349 |
| 705170 |
| PMA101066 |
| PMA |
| FMA0095 |
| 917040 |
| WA2048OPC |
| 274801 |
| B4214 |
| 601-T-141 |
| A5709 |
