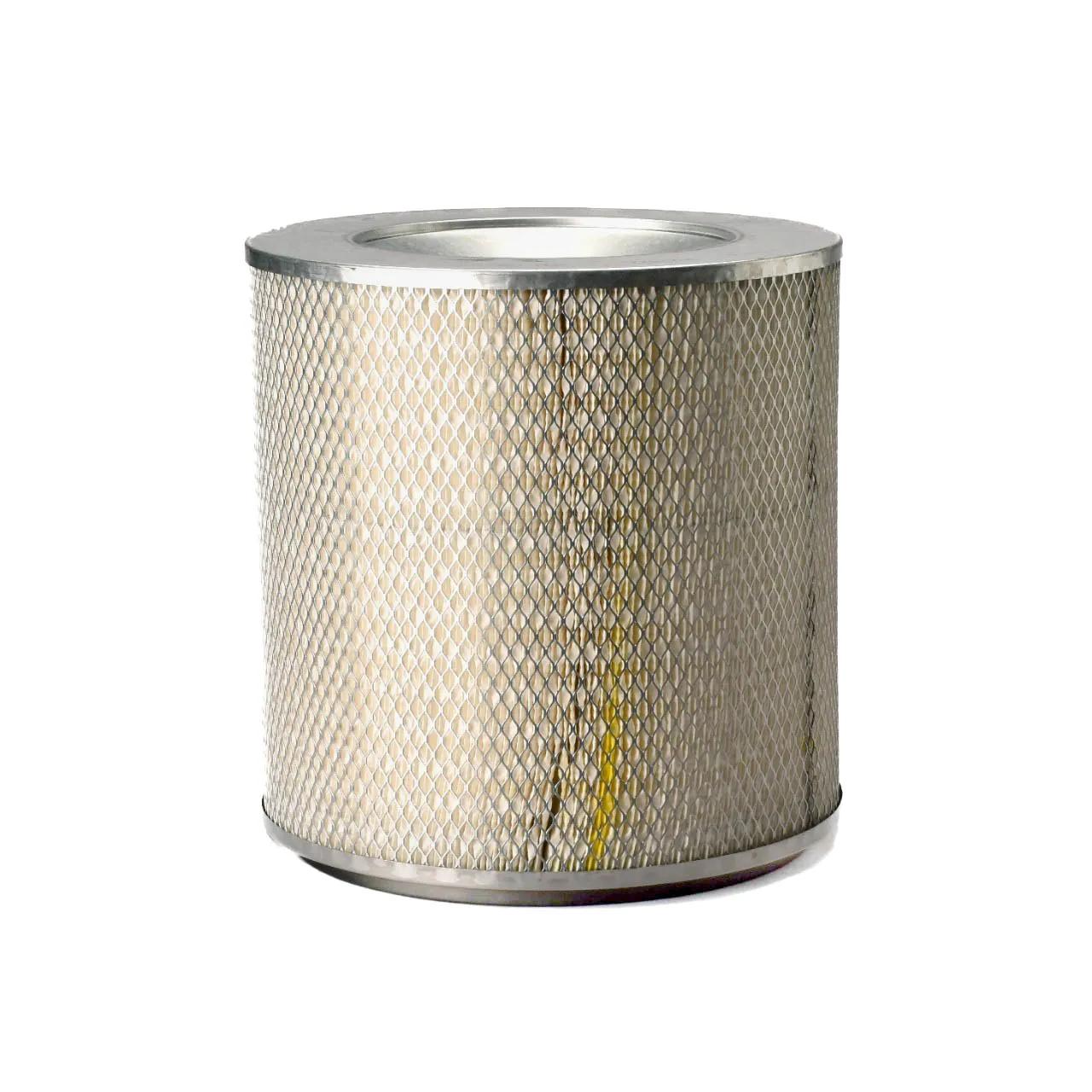

Air Filters L: 12,01 in, OD: 12,09 in, ID: 7,73 in
#DONP121922
Product Overview
AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.53 in (13.5 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 7.73 in (196.4 mm) |
| Length | 12.01 in (305.1 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 12.52 in (318.1 mm) |
| Length Range | 12 to 12.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| ARM109501 |
| PA1877 |
| CFM372 |
| 87925 |
| AF9501 |
| LAF9501 |
| 195 |
| 34700 |

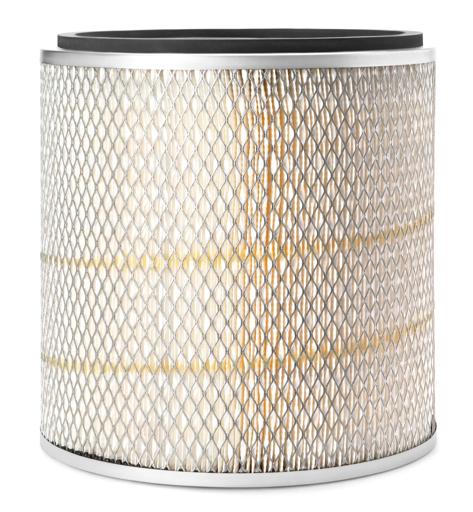

| AF422 |
| AFR8422 |
| CA1511 |
| AF231 |
| A1922 |
| A9501 |
| HDA1922 |
| HDA9501 |
| LA372 |
| A418C |
| FA206 |
| 2925 |
| 84564S |
| AF2267 |
| AF3315 |
| HDA5340 |
| U09501 |
| 42925 |
| 542925 |
| 207300768 |
| 1448 |
| 93925 |
| 6CF0330 |
| 417 |
| C7TZ9601B |
| 3I0153 |
| AP109501 |
| PMA109501 |
| 9576P121922 |
| C8HA9600B |
| C8HS9600B |
| DNP121922 |
| FC401 |
| G109501 |
| 2MD19322 |
| 2MD49303A |
| 49303A |
| N1730 |
| T1730 |
| QSA1511 |
| AF2925 |
| 61100129 |
| T109501 |
| TA7420 |
| 196128 |
| AF121922 |
| SA262 |
| 27074455 |
| 1014056 |
| 127074455 |
| 3107374 |
| 6GF0330 |
| WGA558 |
| 027074455 |
| ABP N03 A21922 |
| DN P121922 |
| DN P121922 |
| 1-95 |
| 10024957 |
| 2191-P121922 |
| 3I-0153 |
| 6486942 |
| AF422FLG |
| AP10-9501 |
| DONP121922 |
| FIL2925 |
| HD |
| 4XCC3 |
| WA2248 |
