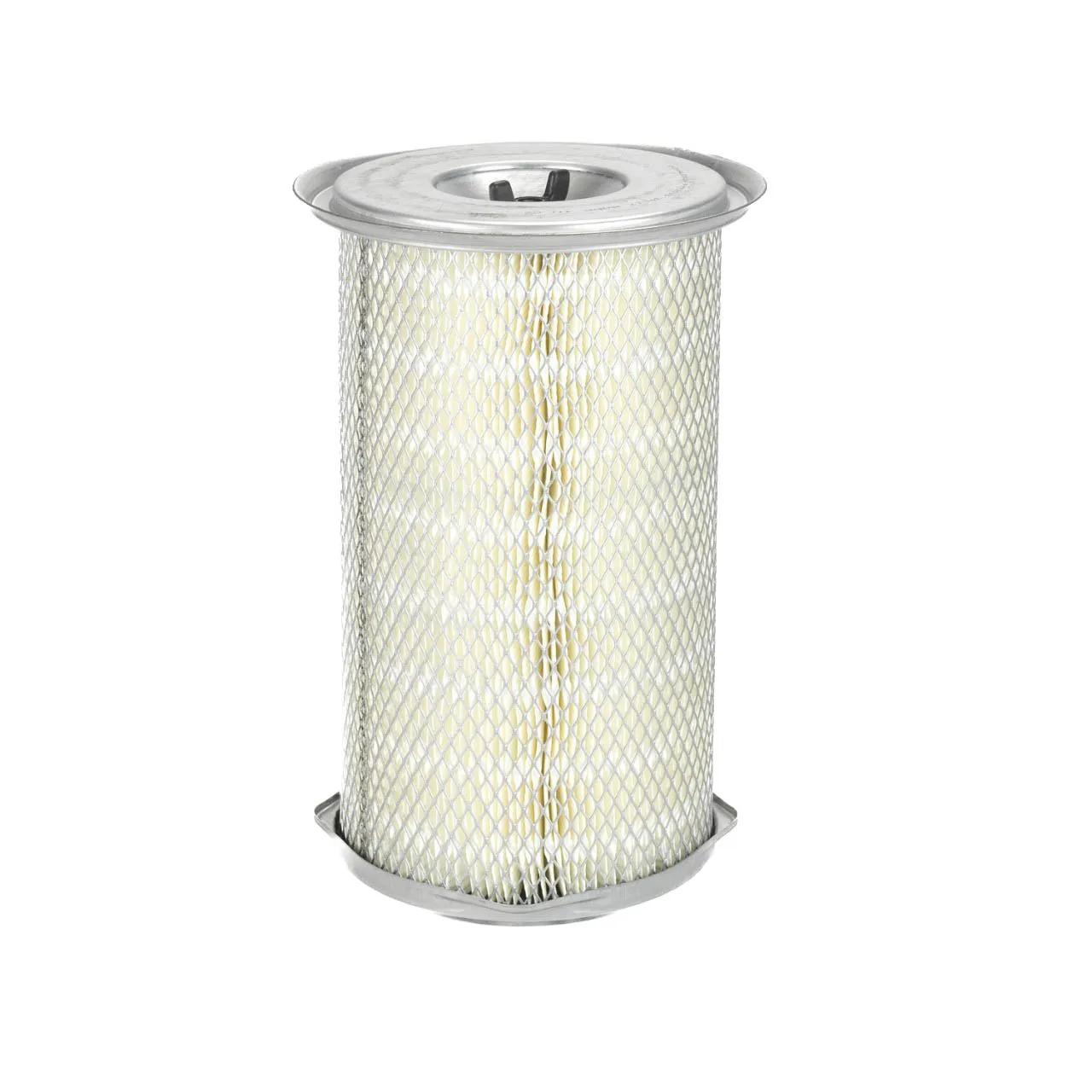

Air Filters L: 12,99 in, OD: 6,97 in, ID: 3,46 in

#DONP772535

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.59 in (15 mm)
Diameter Range 6 to 6.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 3.46 in (87.9 mm)
Length 12.99 in (330 mm)
Outer Diameter 6.97 in (177 mm)
Overall Length 13.54 in (344 mm)
Length Range 12 to 12.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P772535
6638
46638
88638
CA5674
SA16535
SL5638
1930138
920015939
FLI6858
FC644
811597
DN P772535
DN P772535
00811597
2191-P772535
DONP772535
FIL6638
A2651C
LAF8377
