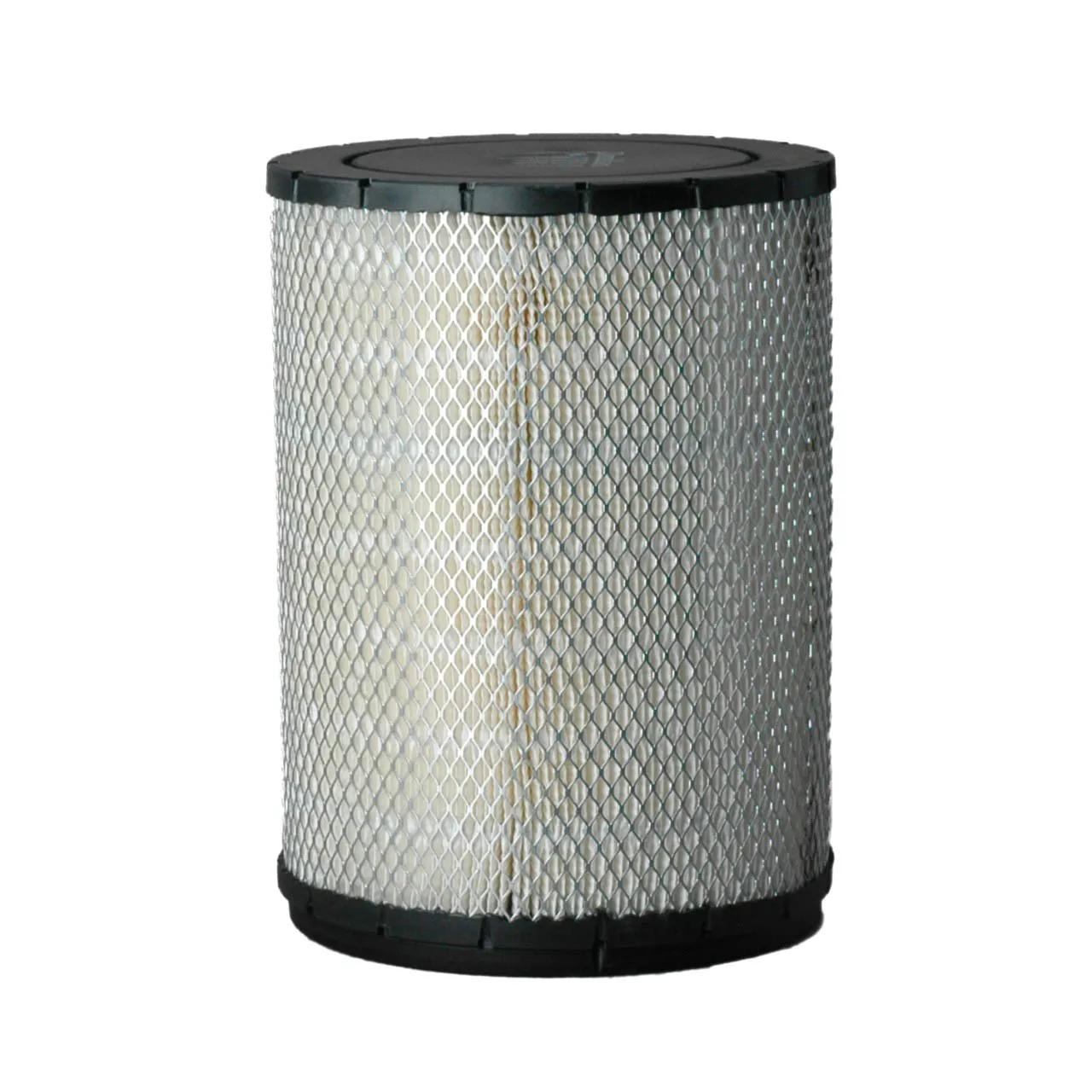

Air Filters L: 12 in, OD: 9,22 in, ID: 4,89 in
#DONP181103
Product Overview
Why Choose Donaldson RadialSeal Filters?
Features & Benefits
- Reliable, leak- resistant Radial Seal keeps filters in place - even under heavy vibration
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Diameter Range | 9 to 9.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 4.89 in (124.3 mm) |
| Length | 12 in (304.8 mm) |
| Outer Diameter | 9.22 in (234.1 mm) |
| Overall Length | 12.5 in (317.5 mm) |
| Length Range | 12 to 12.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| AR100 |
| ARM912 |
| LL1615 |
| PA1615 |
| CFM76 |
| 87047 |
| AF47 |
| LAF47 |
| 39998 |
| 70004 |
| 9553 |
| AF344 |
| AF344M |
| FA4M8047 |
| FA7W5389 |
| AFR8344 |
| AFR8344M |
| CA224 |
| GA8047M |
| GA8337 |
| AF104 |
| FAF104 |
| A80471 |
| HDA80471 |
| E584L |
| SA10294 |
| LA76 |
| A653 |
| C23326 |
| C24441 |
| C24444 |
| C244441 |
| FA524 |
| 2047 |
| 70261N |
| AP4M8047 |
| A58047 |
| AF8047 |
| HDA5133 |
| A5507 |
| SL8929 |
| SFA8047P |
| AP8047 |
| AR8047 |
| 2792200 |
| U4M383 |
| 42047 |
| DT8047 |
| PC335 |
| MD7076 |
| CA1773 |
| 850A |
| AE27240 |
| 294 |
| 93047 |
| AP3036A |
| 7W5389 |
| 1W0217 |
| 1W7364 |
| 281289 |
| 283087 |
| 2P3224 |
| 2P34 |
| 2S1289 |
| 2S3087 |
| 3I0849 |
| 3P0085 |
| 4M0383 |
| 4M383 |
| 4M38L |
| 4M8047 |
| 5M0957 |
| 5M957 |
| 5S9004 |
| 7C4428 |
| 7C6376 |
| 7C9756 |
| 7E5374 |
| 7E5375 |
| 7S2513 |
| 7W5384 |
| 7W5389E |
| 8M8047 |
| 8N5389 |
| 9M1884 |
| 621128 |
| MA501 |
| PCA224 |
| PMA4M8047 |
| AZA602 |
| L95423 |
| 253333 |
| 599 |
| 599AIR |
| AF599 |
| 1522242009 |
| 3366456 |
| DX610 |
| 4930501 |
| DA2047 |
| 69030005 |
| FL16194 |
| FL6194 |
| FLI6194 |
| HP411 |
| A2221 |
| 9576P181103 |
| DNP181103 |
| FA3306 |
| AHI1045 |
| GA481 |
| FC273 |
| 1253A |
| G4M8047 |
| ADG546 |
| HD8403 |
| AR224 |
| 83373 |
| KA122 |
| AG141 |
| LX116 |
| EF456 |
| EL30 |
| AF2067 |
| UA1103 |
| PA2719 |
| 46511 |
| 42048 |
| AF105 |
| 60010328 |
