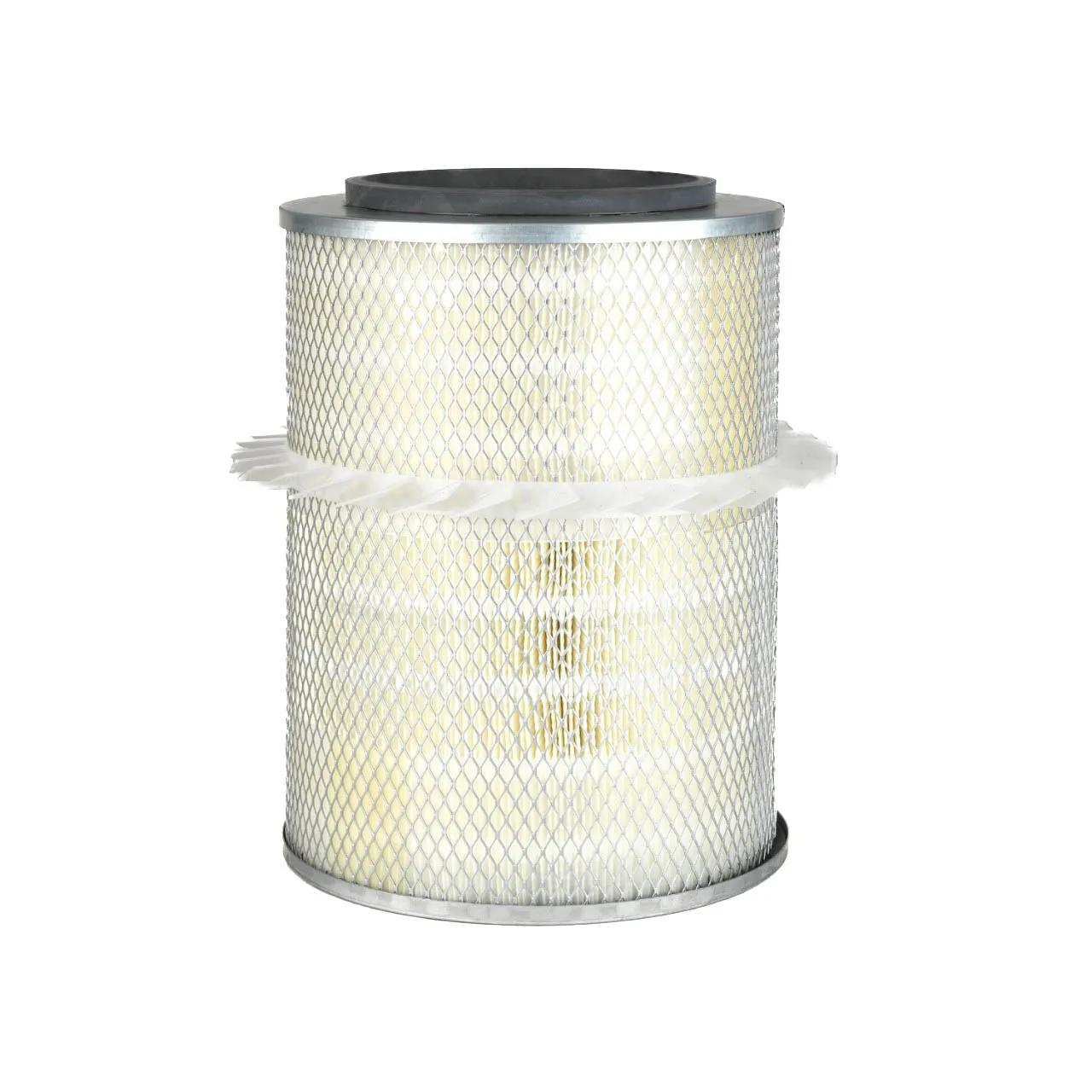

Air Filters L: 13,01 in, OD: 9,58 in, ID: 6,04 in
#DONP776497
Product Overview
Why Choose Donaldson Air Filters?
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.65 in (16.6 mm) |
| Diameter Range | 9 to 9.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 6.04 in (153.5 mm) |
| Length | 13.01 in (330.5 mm) |
| Outer Diameter | 9.58 in (243.2 mm) |
| Overall Length | 13.51 in (343.2 mm) |
| Length Range | 13 to 13.99 in |
| Style | Round |
| Type | Primary Air Filter |

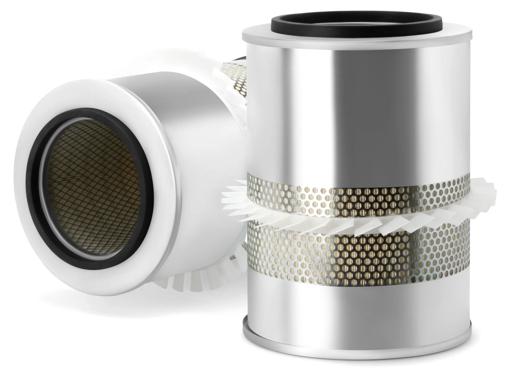

Interchanges & Equivalent parts:
| AF25740K |
| SA16047 |
| A2211 |
| AS2211 |
| SL5650 |
| SFA6497P |
| SFA6497PF |
| 1930600 |
| 1930660 |
| 1931141 |
| FC999K |
| L01930600 |
| 20207 |
| FH1930600 |
| AF776497 |
| DN P776497 |
| DN P776497 |
| 020207 |
| 2191-P776497 |
| AF25740KFLG |
| DONP776497 |
