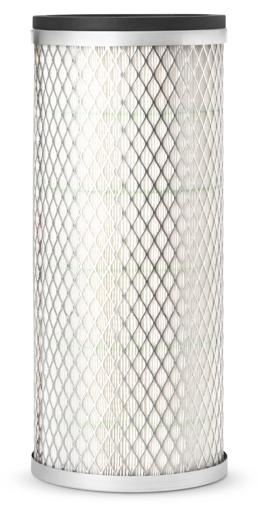

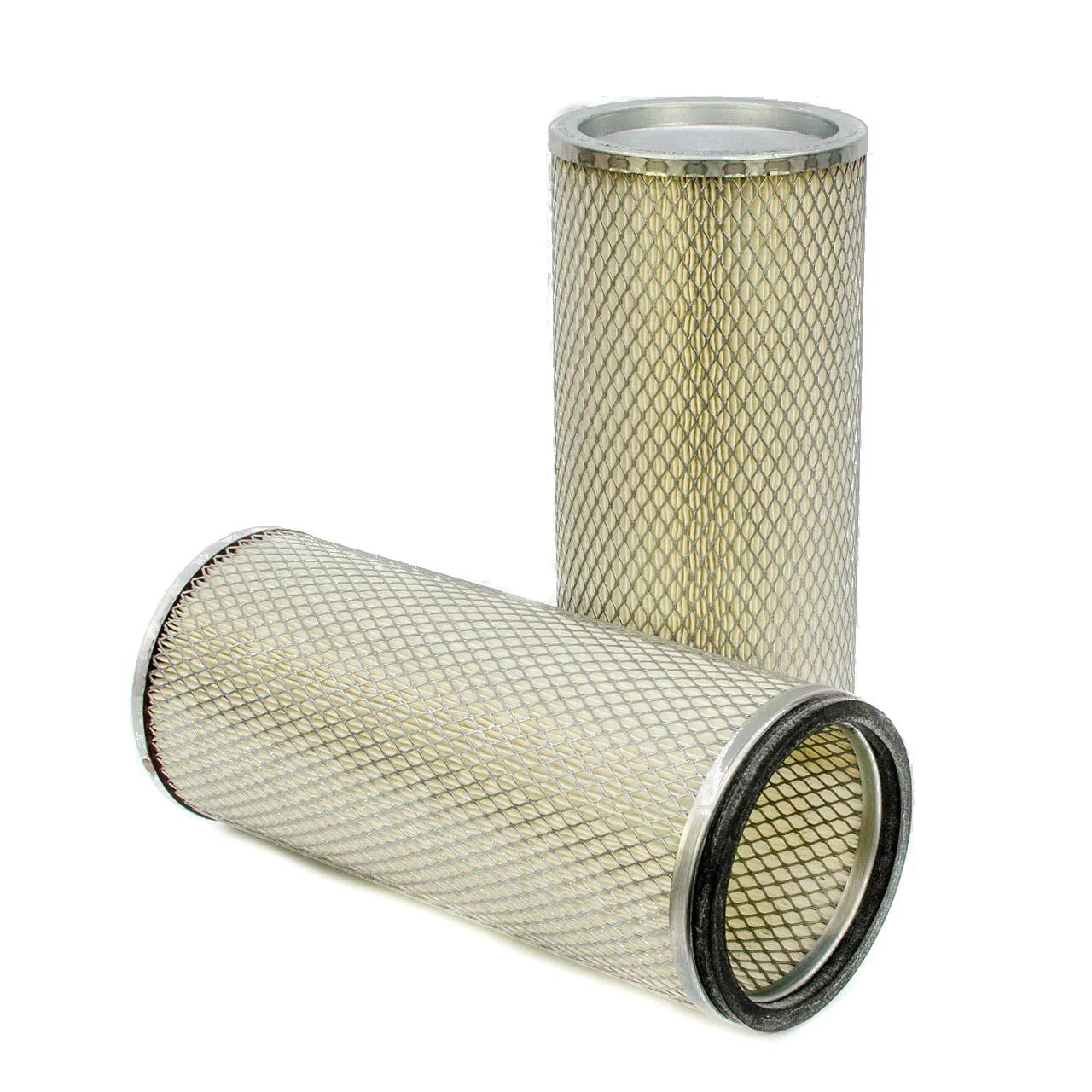

Air Filters L: 13,5 in, OD: 5,95 in, ID: 4,85 in
#DONP137640
Product Overview
AIR FILTER, SAFETY
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | CASE/CASE IH 482644C1 |
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 4.85 in (123.2 mm) |
| Length | 13.5 in (342.9 mm) |
| Outer Diameter | 5.95 in (151.1 mm) |
| Length Range | 13 to 13.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| ARM1596S |
| PA2522 |
| CFM924 |
| 87254 |
| AF3229 |
| AF987 |
| AFR8987 |
| CA1596ASY |
| CA1596SY |
| FA1596 |
| FA15962 |
| FA15962OE |
| GA210 |
| GAK216 |
| AF609 |
| A7640 |
| HDA7640 |
| SA10937 |
| FA1596S |
| LA924 |
| V788 |
| LAF2526121030 |
| LAF7640 |
| A788C |
| FA807 |
| 2254 |
| 70586N |
| AP137640 |
| 6713617 |
| 6947711 |
| A63229 |
| FA807Q |
| HDA5186 |
| A5435 |
| SFA7640S |
| 42254 |
| 705085 |
| AG705085 |
| 1362 |
| 93254 |
| 482644C1 |
| 3I0328 |
| PCA1596SY |
| AES2083 |
| 9576P137640 |
| 1505193 |
| 265089 |
| DNP137640 |
| G431597 |
| AA1294 |
| 482664C1 |
| FPA2522 |
| EF715 |
| SS009 |
| AF2254 |
| IT1596S |
| 270761 |
| AF137640 |
| WGA399S |
| 2191-P137640 |
| 25041080 |
| 3I-0328 |
| 446661C1 |
| 446661C2 |
| 482647C91 |
| AF987FLG |
| DONP137640 |
| FIL2254 |
| D |
| PMA-137640 |
| SL5687 |
| 2NTR1 |
| LTH210A |
| A788CF |
