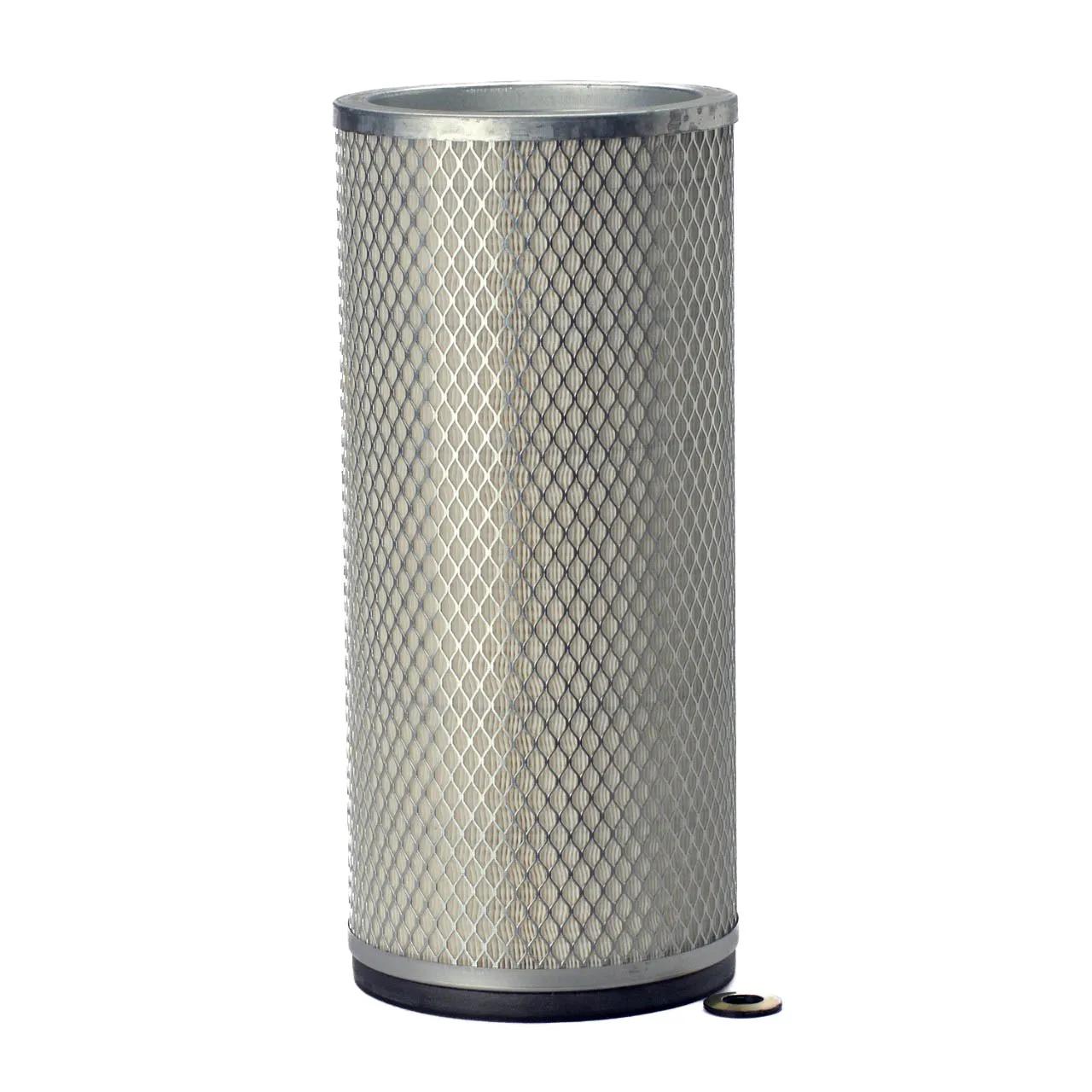

Air Filters L: 13,75 in, OD: 6,4 in, ID: 5,29 in
#DONP526432
Product Overview
AIR FILTER, SAFETY
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | KOMATSU 6001811680 |
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 6 to 6.99 in |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 5.29 in (134.4 mm) |
| Length | 13.75 in (349.3 mm) |
| Outer Diameter | 6.4 in (162.4 mm) |
| Length Range | 13 to 13.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| P526432 |
| 6545 |
| P811431 |
| R800080 |
| SA11813 |
| CF16158 |
| A5631 |
| 464B |
| AE26040 |
| SFA7599S |
| E1223 |
| 1189775 |
| IA399 |
| KSH0353 |
| DNP526432 |
| 8970413103 |
| 178013110 |
| 178013110A |
| 4288964 |
| X4288964 |
| 1142150760 |
| 114215087 |
| AT280671 |
| AT280671J |
| 2446U191S2 |
| 6001811600S |
| 6001811680 |
| 60018118680 |
| 6001823130 |
| 6001823330 |
| 20649 |
| ME063143 |
| ME063505 |
| ME063140 |
| 1654696070S |
| 1654699503 |
| KSH0523 |
| 74524502 |
| 1654696072 |
| 810794 |
| 811858 |
| DN P526432 |
| 08970413103 |
| 020649 |
| 074524502 |
| 00810794 |
| 00811858 |
| 46545 |
| DN P526432 |
| 2191-P526432 |
| 3I-1444 |
| 88545 |
| AF654 |
| CA5021SY |
| DONP526432 |
| LAF1835 |
| P814443 |
| PA2578 |
| A1074C |
