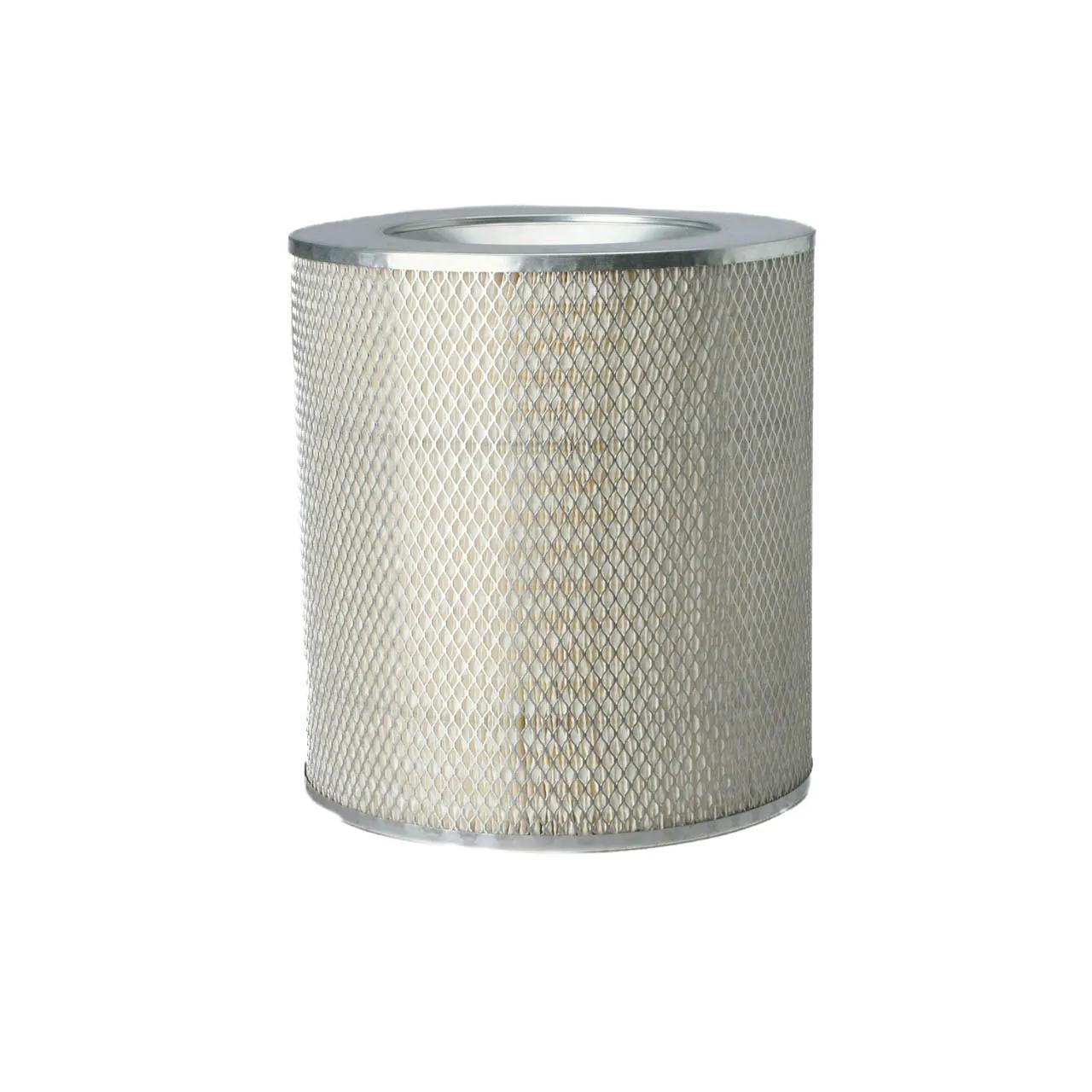

Air Filters L: 13 in, OD: 12,09 in, ID: 7,73 in
#DONP117327
Product Overview
AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 7.73 in (196.4 mm) |
| Length | 13 in (330.2 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 13.5 in (342.9 mm) |
| Length Range | 13 to 13.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| P117327 |
| 2686 |
| 2976 |
| 42686 |
| 42976 |
| 542686 |
| ARM6489T |
| ARM109726 |
| ARM117404 |
| ARM119726 |
| ARM122404 |
| PA1920 |
| PA2414 |
| CFM439 |
| CFM665 |
| 87686 |
| 87976 |
| J8513321 |
| 197 |
| 35431 |
| AF408 |

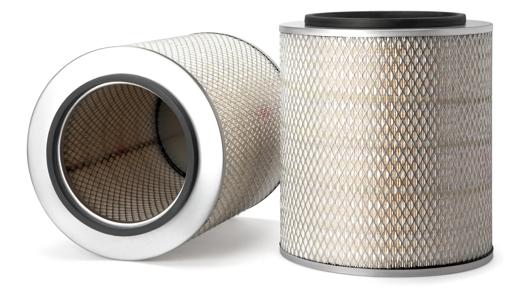

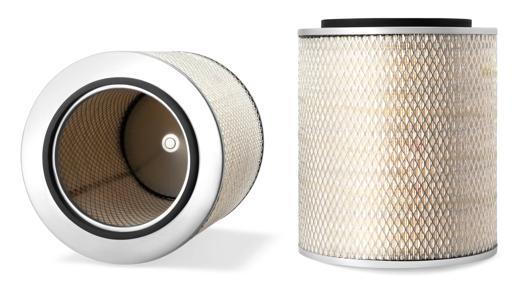

| AF408M |
| AFR8408 |
| AFR8408M |
| CA2513 |
| CA542 |
| GA31 |
| GA31M |
| AF257 |
| AF521 |
| A1332 |
| A7327 |
| A9726 |
| HDA1332 |
| HDA7327 |
| HDA9726 |
| SA10358 |
| LA439 |
| LA665 |
| LAF9726 |
| A665C |
| A416C |
| A416CL |
| FA273 |
| FA846 |
| 109726 |
| 117327 |
| 70422N |
| 70455N |
| AF2994 |
| A52215 |
| A53153 |
| AF2215 |
| AF3153 |
| HDA5343 |
| HDA5437 |
| SL8846 |
| SFA1332P |
| U09726 |
| U17327 |
| 1255 |
| 443 |
| 93686 |
| 93976 |
| 6GT0330 |
| 879639 |
| AC128 |
| SP3891 |
| 221292 |
| 524117 |
| 525661 |
| 672019C2 |
| B7S9601D |
| 3I0101 |
| AF9726 |
| LAF9762 |
| PCA542 |
| AEM2042 |
| 1401089 |
| PMA109726 |
| PPP117327 |
| AF736 |
| 10198H2 |
| 10392H2 |
| 3107365H2 |
| 3914H2901 |
| 526312 |
| 53371090 |
| 53571090 |
| 545249 |
| 554497 |
| 7088752H2 |
| AP109726 |
| G109726 |
| G122404 |
| 17541 |
| 629368C91 |
| 672019C1 |
| 88999845 |
| N1720 |
| S1720 |
| PA736 |
| QSA542 |
| AF2686 |
| AF2976 |
| 92313611 |
| 92313617 |
| T109726 |
| 365064 |
| 374730 |
| 101075 |
| WA2277 |
| 4XCE8 |
| FB-677 |
| 4XCF8 |
