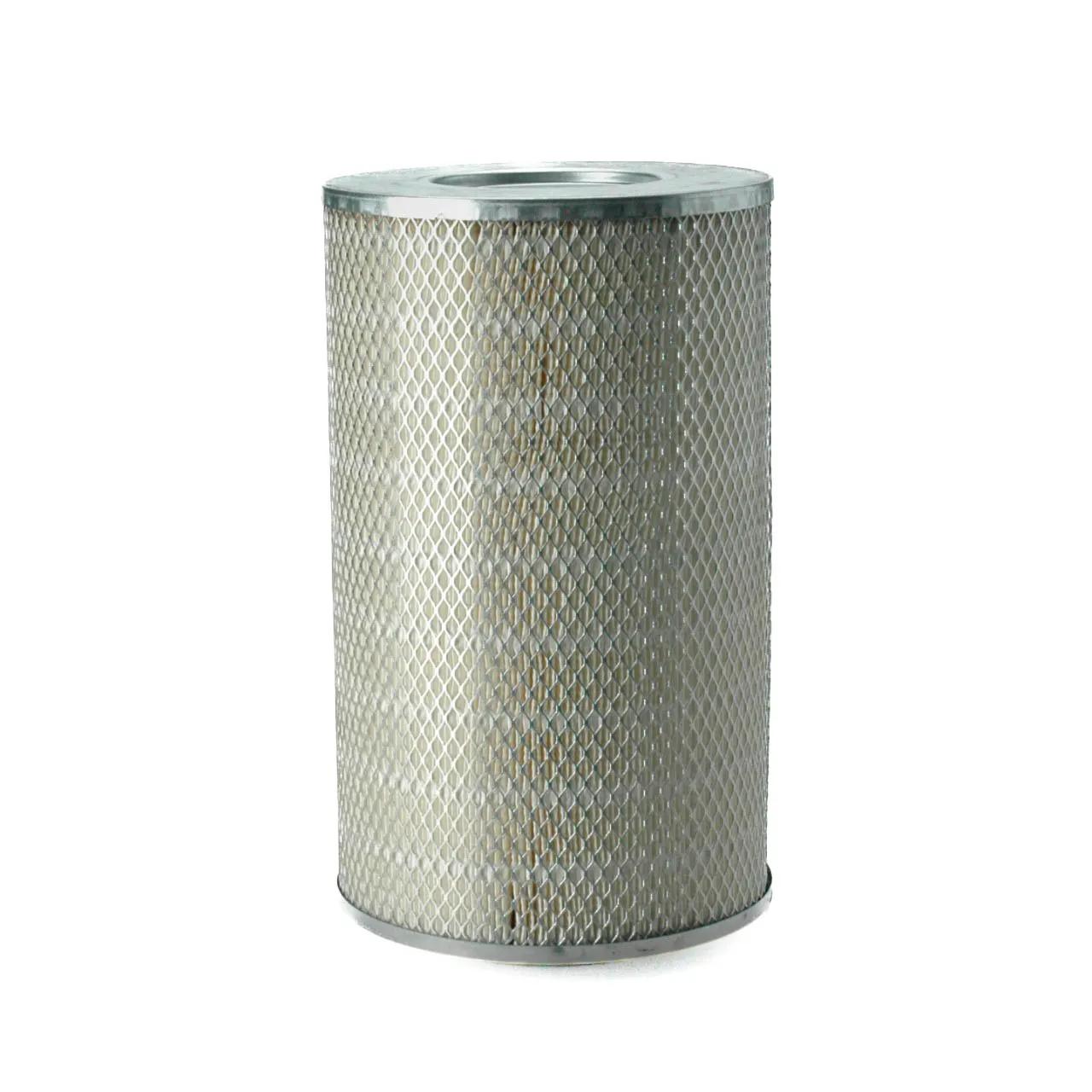

Air Filters L: 14,61 in, OD: 8,93 in, ID: 4,56 in
#DONP771508
Product Overview
Why Choose Donaldson Air Filters?
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.44 in (11.2 mm) |
| Diameter Range | 8 to 8.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 4.56 in (115.9 mm) |
| Length | 14.61 in (371.1 mm) |
| Outer Diameter | 8.93 in (226.8 mm) |
| Overall Length | 15.12 in (384.1 mm) |
| Length Range | 14 to 14.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| AR037 |
| ARM2301 |
| ARM23501 |
| PA2474 |
| 19 |
| 39822 |
| 10009 |
| AM2301 |
| HDAM2301 |
| E116L |
| SA14019 |
| SA14109 |
| LAF1716 |
| 88541 |
| J8510871 |
| 1210702033400 |
| 9556 |
| AM405 |
| FFA10937 |

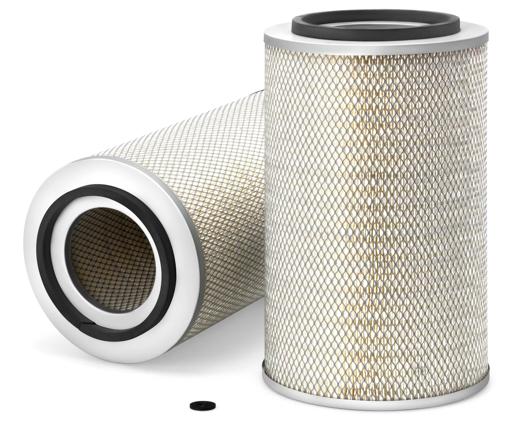

| AF25043M |

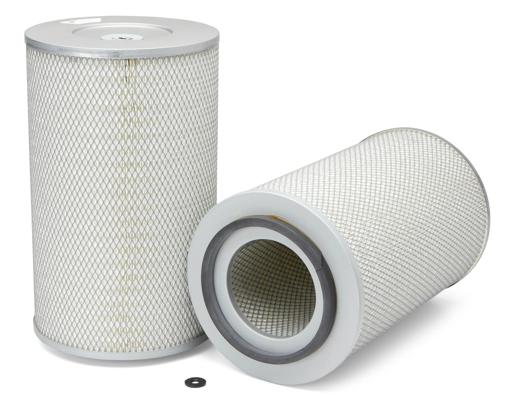

| AF25065 |
| AF4069 |
| AFR825043M |
| AFR825065 |
| AFR84069 |
| C7178 |
| CA3276 |
| CA4685 |
| CA7178 |
| GA2798M |
| AF2068 |
| LA816 |
| EFPA623 |
| EFPA623MD |
| EFA315 |
| 84999S |
| AP234401 |
| 126401 |
| AP4440 |
| AR4440 |
| 2780500 |
| PC185 |
| A1035C |
| MD382 |
| 17203293 |
| HF228 |
| 3621085 |
| 94541 |
| 5821018 |
| S9966 |
| C234401 |
| C234403 |
| MA6637 |
| MA6637P |
| MAT6637 |
| 6541 |
| A1029 |
| A1115 |
| A61568 |
| LX227 |
| PM1568 |
| AR234401 |
| HDA5201 |
| SL6217 |
| SFA1087P |
| 46541 |
| 546541 |
| A161 |
| W46541 |
| 46541E |
| 8009101128000 |
| 4167523A |
| 2165054 |
| L2273800 |
| 16192798 |
| 1619279800 |
| 22526180 |
| E1108 |
| 0986B03513 |
| 12A |
| 1457429966 |
| 1987430012 |
| 9451160012 |
| 9455087026 |
| 99000190702 |
| 80913927 |
| 824847 |
| 99000190075 |
| 99012190701 |
| E126510 |
| P774508 |
| 10944704 |
| 130941702 |
| T0242503 |
| T4212748 |
| T4214314 |
| T4214489 |
| 1770460 |
| 3I0835 |
| 3I0974 |
| 3I2060 |
| 1770462 |
| 177046 |
| 1770461 |
| MA531 |
| 8985247 |
| 3450947304 |
| 9826280421 |
| C111581041 |
| 112094 |
| 112294 |
| 687774 |
| 746444 |
| 29504406 |
| 43262200 |
| 74644 |
| 988766 |
| 2165041 |
| 422165054 |
| 9983763 |
| DX50 |
| PX106 |
| S2650A |
| APC119 |
| FMA0027 |
| AE223711 |
| 2NVD2 |
