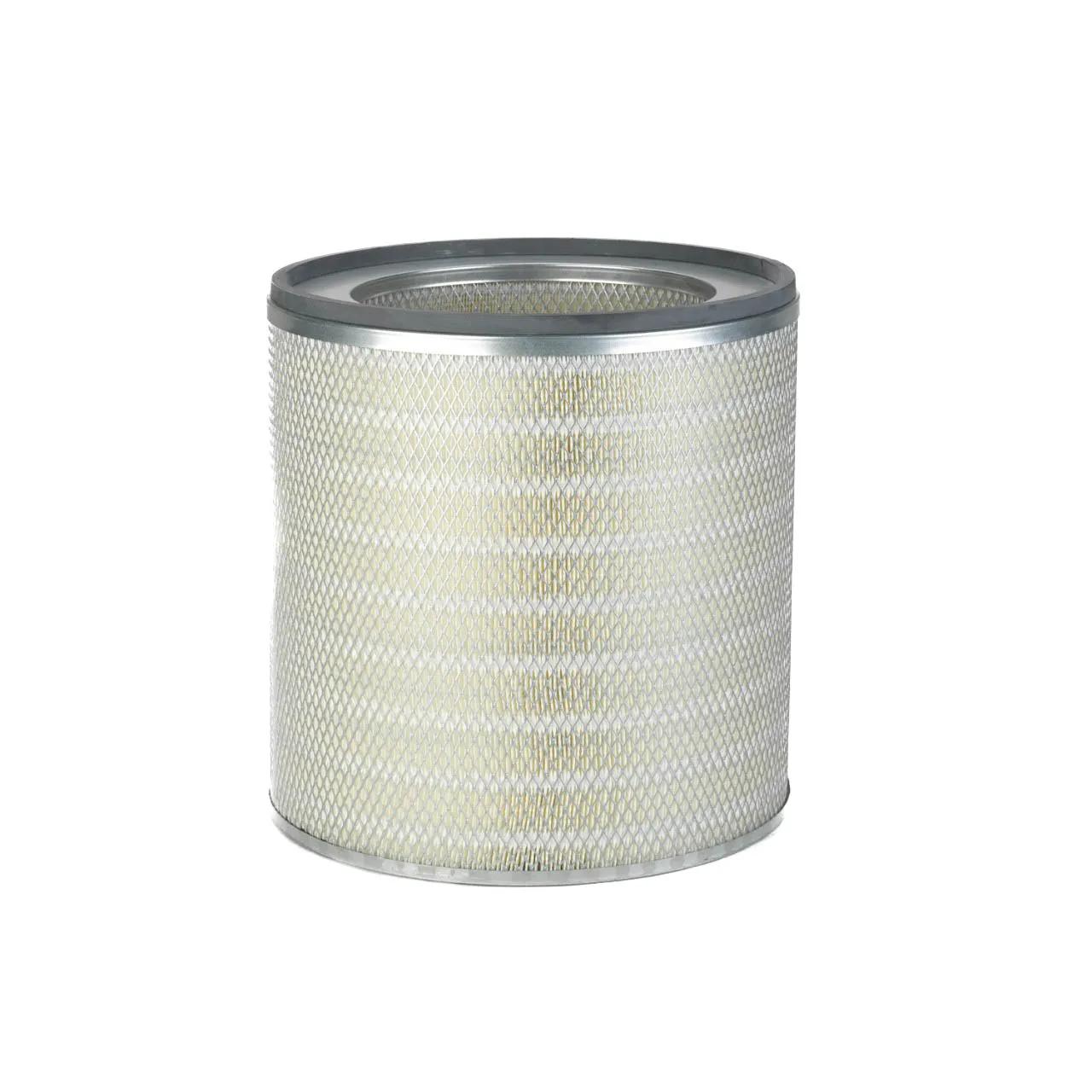

Air Filters L: 14 in, OD: 13,83 in, ID: 9,49 in

#DONP771526

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.53 in (13.5 mm)
Diameter Range 13 to 13.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 9.49 in (241.1 mm)
Length 14 in (355.6 mm)
Outer Diameter 13.83 in (351.29 mm)
Overall Length 14.5 in (368.3 mm)
Length Range 14 to 14.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P771526
10013
910036
14500
AF413
C368401
C368403
1495490M91
1495491M91
10300979
16193784
1030097900
1457429065
1475429065
HD6885
ABU8510
9395886
EH6233130
811538
021824
09395886
2191-P771526
6233130
AF203
CA272
DONP771526
LAF263
LAF263HD
LAF3535A
PA1706
PA1706XP
A1330C
21824
DN P771526
QSA272
87130
87130XP
A2790C
