Air Filters L: 15,2 in, OD: 12,09 in, ID: 7,71 in
#DONP775804
Product Overview

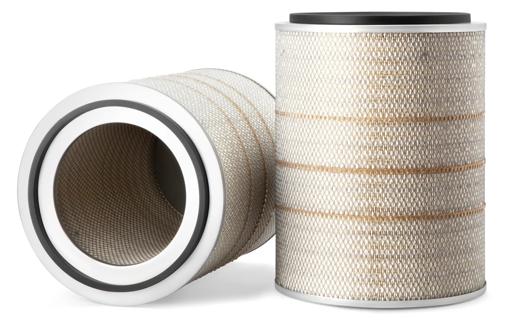

AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.67 in (17.1 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 7.71 in (195.9 mm) |
| Length | 15.2 in (386.1 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 15.7 in (398.8 mm) |
| Length Range | 15 to 15.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| P775804 |
| 93086E |
| AR307 |
| PA3558 |
| J8543711 |
| 910067 |
| AF4841 |
| E655L |
| SA14791 |
| LAF5743 |
| C311256 |
| C3112562 |
| SL8348 |
| SFA0731P |
| 1457433731 |
| 7411394 |
| Y05770312 |
| FC617 |
| 2242047 |
| 5001020327 |
| 503135272 |
| AT277355 |
| LX631 |
| 24078 |
| FA1566 |
| 5001010800 |
| 5010064119 |
| 5010064371 |
| 5010094094 |
| 5010094154 |
| 5010305203 |
| A742 |
| AF775804 |
| DN P775804 |
| DN P775804 |
| 024078 |
| 2191-P775804 |
| AF1023 |
| AF4841FLG |
| DONP775804 |
| AF1023OBS |
| A2334C |
