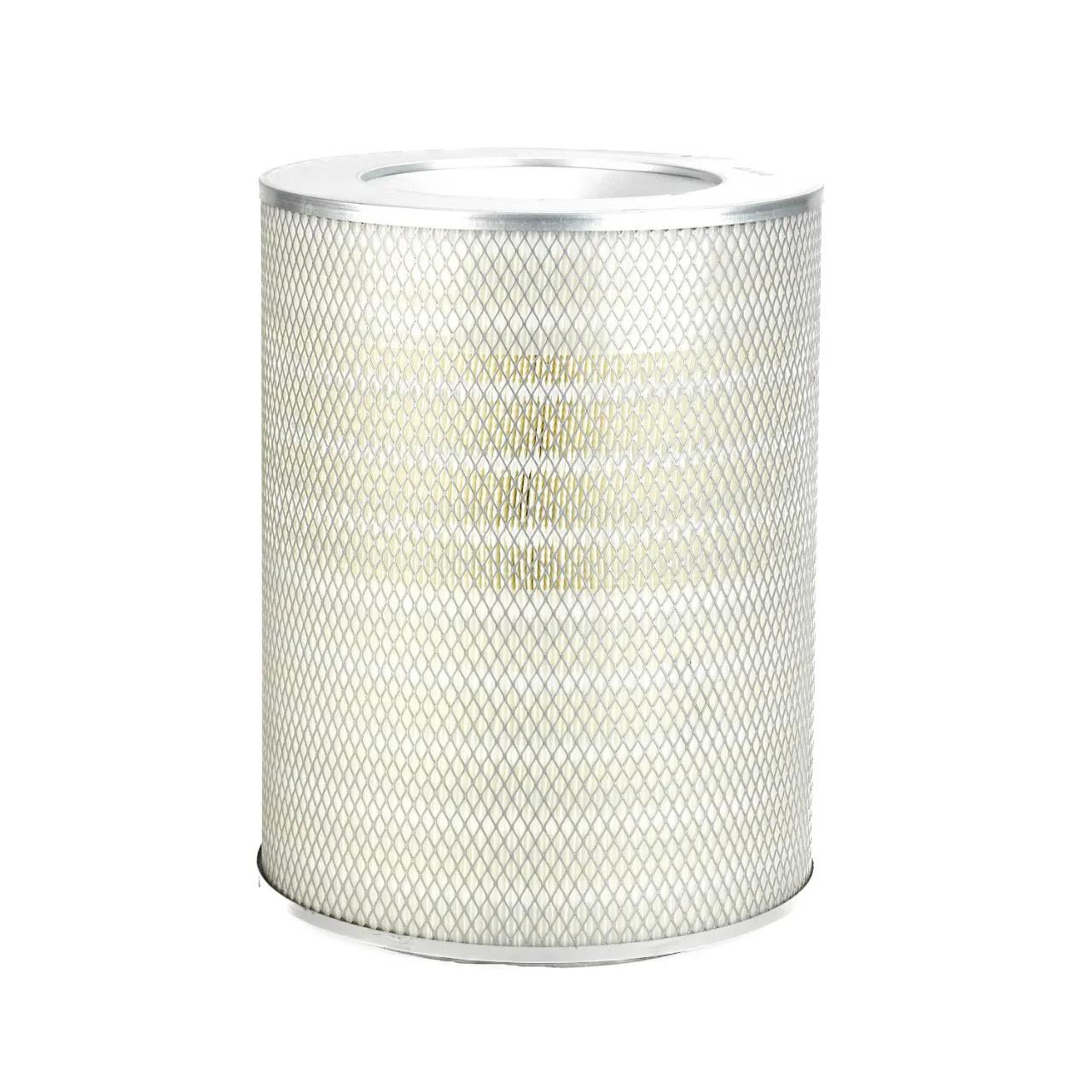

Air Filters L: 15,65 in, OD: 12,09 in, ID: 7,71 in

#DONP778856

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.67 in (17.1 mm)
Diameter Range 12 to 12.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 7.71 in (195.9 mm)
Length 15.65 in (397.6 mm)
Outer Diameter 12.09 in (307.09 mm)
Overall Length 16.15 in (410.3 mm)
Length Range 15 to 15.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P778856
9268
49268
SL81221
FC899
20801K1210
21791
Y06019812
021791
2191-P778856
83268
DONP778856
DN P778856
DN P778856
208-01-K1210
