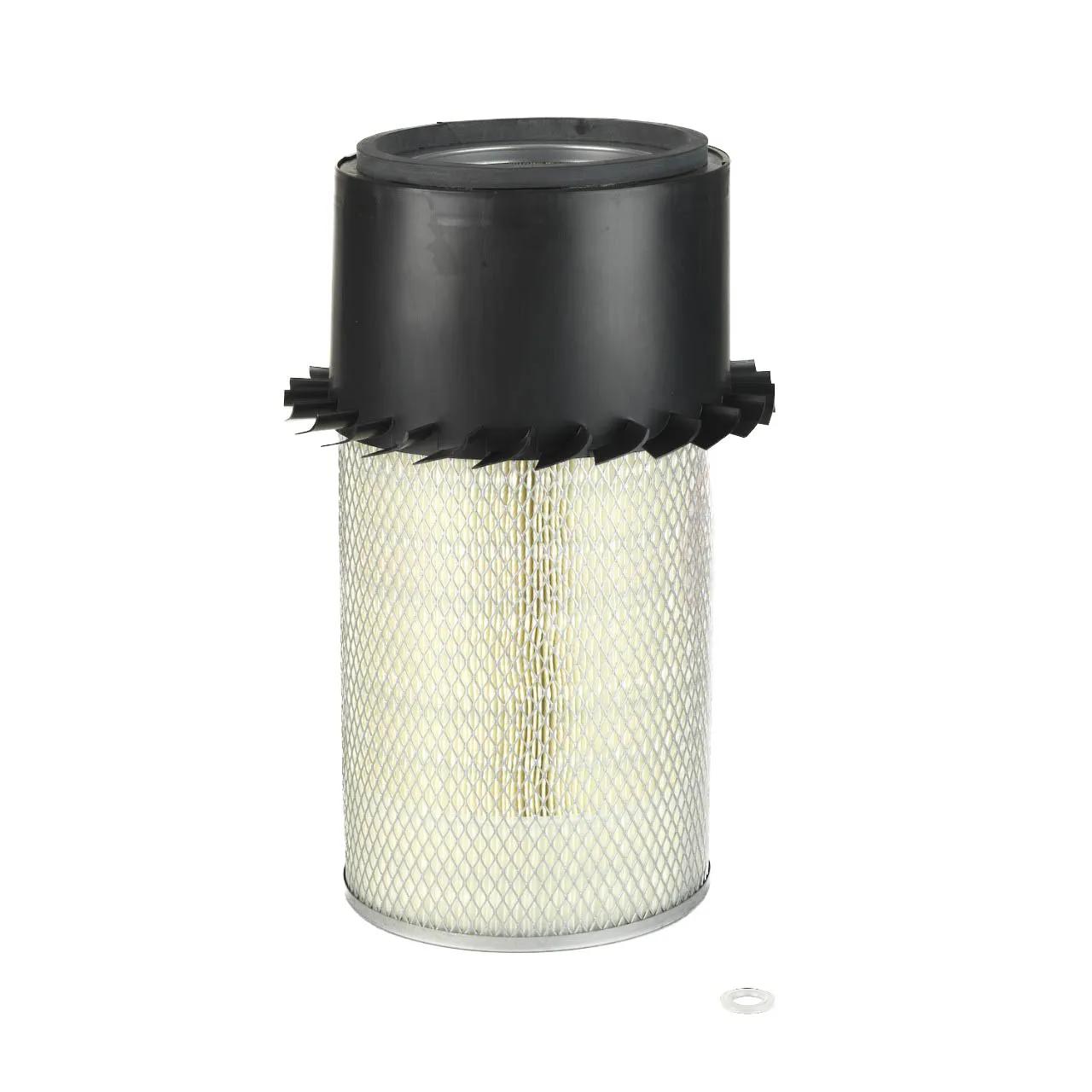

Air Filters L: 15,98 in, OD: 7,92 in, ID: 5,32 in

#DONP772545

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.67 in (17.1 mm)
Diameter Range 7 to 7.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 5.32 in (135.2 mm)
Length 15.98 in (405.9 mm)
Outer Diameter 7.92 in (201 mm)
Overall Length 16.5 in (419.1 mm)
Length Range 15 to 15.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P772545
2919
E696L
1930794
3I2062
924299C1
79114559
9576P771545
924279C1
HD8180
59825562
20037
20088
1426451M91
811555
811599
020037
020088
00811555
00811599
2191-P772545
42919
87919
AF245K
AF434KM
DONP772545
LAF8668
PA1902-FN
DN P772545
DN P772545
A475CF
CAK546
QSAK546
C21431
