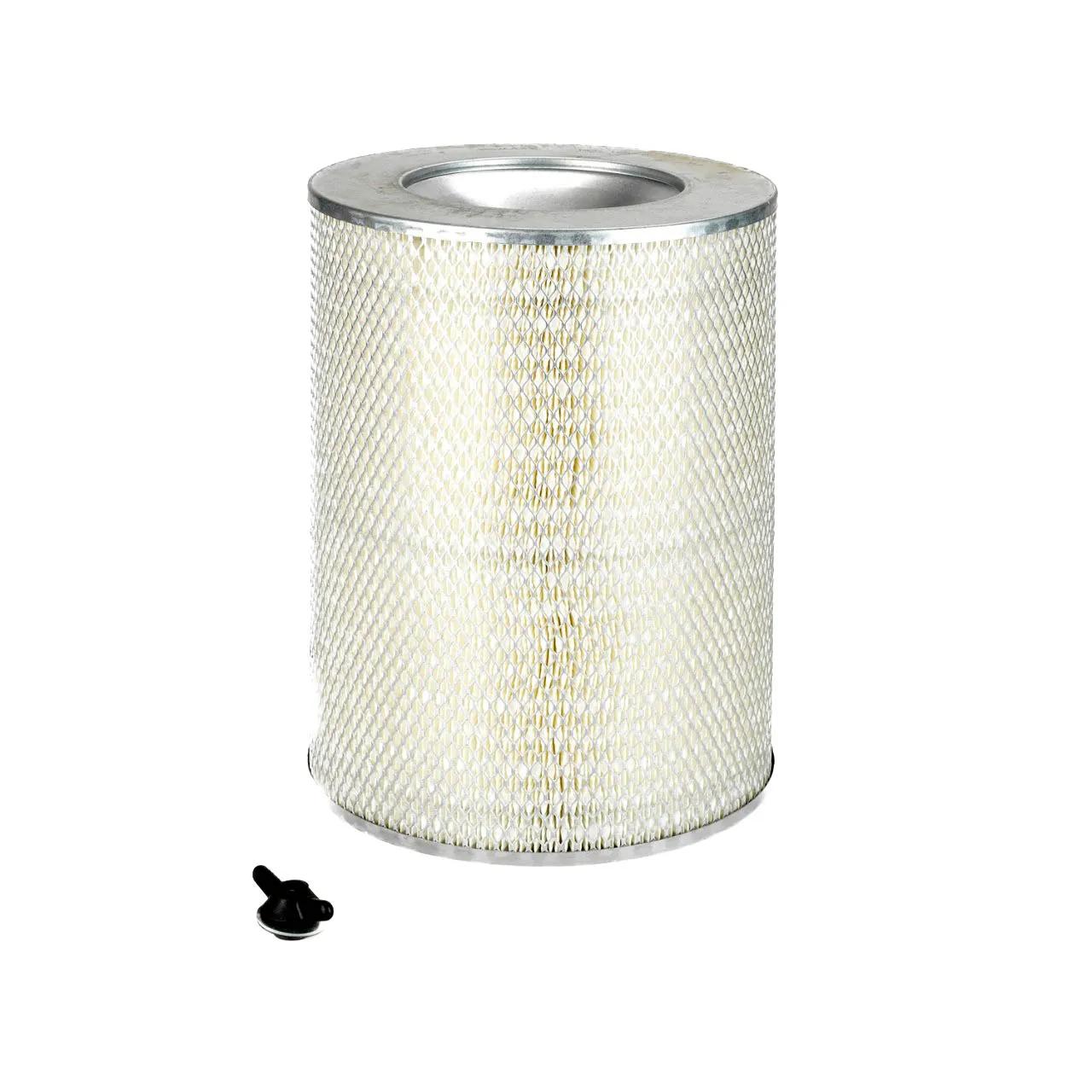

Air Filters L: 15 in, OD: 10,87 in, ID: 6,5 in

#DONP526428

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.89 in (22.7 mm)
Diameter Range 10 to 10.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 6.5 in (165.1 mm)
Length 15 in (381 mm)
Outer Diameter 10.87 in (276.1 mm)
Overall Length 15.5 in (393.7 mm)
Length Range 15 to 15.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P526428
6544
46544
E1222
6001811660
8970413102
60018115660
6001811600P
6001823100
6001823110
21537
1654696070P
08970413102
021537
C28960
DN P526428
DN P526428
2191-P526428
3I-1443
6001811580
88544
AF1862M
AF653
CA5021
DONP526428
LAF1834
MD-5156
PA2577
HF109
A1075C
See more
