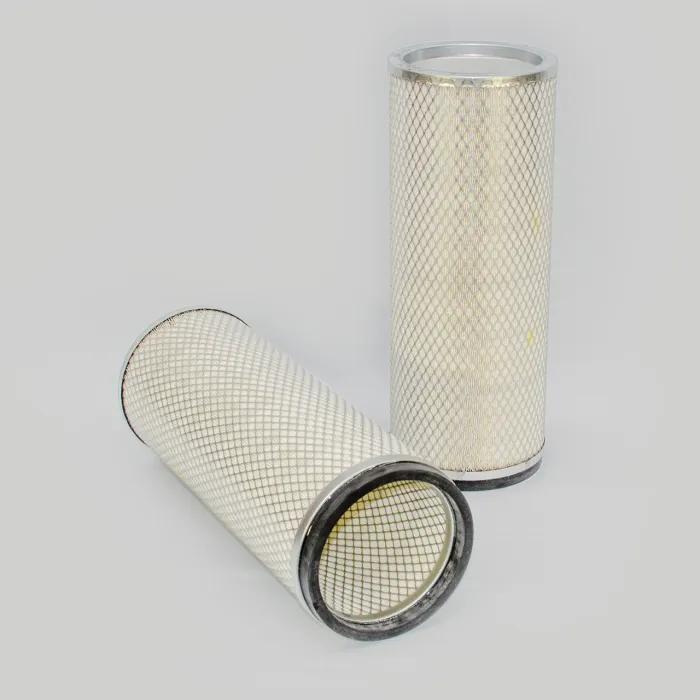

Air Filters L: 15 in, OD: 5,95 in, ID: 4,85 in

#DONP770678

Product Overview


AIR FILTER, SAFETY

See More
See Less

Features & Benefits


  • Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
  • Serve as a backup filter in case of primary filter damage or improper installation
  • Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
  • Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
  • Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter

Specifications


Bolt Hole Diameter 0.66 in (16.8 mm)
Diameter Range 5 to 5.99 in
Efficiency 99.95%
Efficiency Test Std ISO 5011
Height 9-19/64 in (23.62 cm)
Inner Diameter 4.85 in (123.2 mm)
Length 15 in (381 mm)
Outer Diameter 5.95 in (151.1 mm)
Length Range 15 to 15.99 in
Style Round
Type Safety Air Filter
Width 3-57/64 in (9.88 cm)

Interchanges & Equivalent parts:


P770678
6693
46693
AR270
PA3847
88693
9114
27199

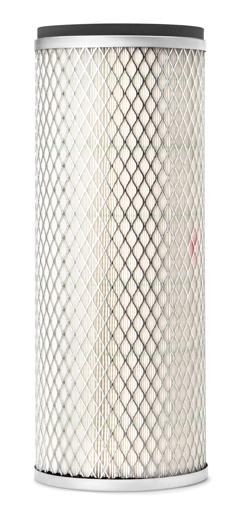

AF4761M
AFR84761M
CF15158
SL5618
SFA0678S
546693
LA1930792
3389793F11
291930792A
3216707902
2940015008425
40200
E1105
94693
9965159
SA16678
LA1855
LAF8648
A7619
149700190713
1849137
1930792
320651650
452527
700052342
71421048
80452527
P2950573
P2950573U
U2950573
7277067800
CDD001059
24719024
24719074
94749004
97388073
4398989
24719024S
86892109
46428600
232848
7403951
7409576
51849137
71470203
108940
Y05762904
FC483
HD9193
9343015
1930606
L01930792
580141
2091698
90520420
90520438
AT276209
RE42726
RE42762
9231100142
20601K1230
36010995
EF699
21899
3580722M1
D46428600
215654
580048459
026P770678
72130515
L1930606
87682972
1454263
1499154
8300374
807201671
6005008357
942701
4397235
SC86892109
330570068
330560568
79443776
2722600
3XUP2
A2492C
