Air Filters L: 15 in, OD: 9,22 in, ID: 4,85 in
#DONP145704
Product Overview

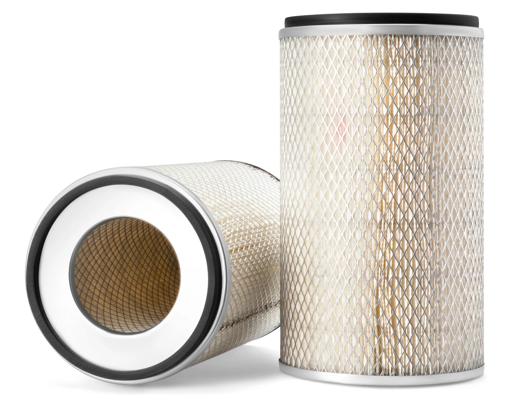

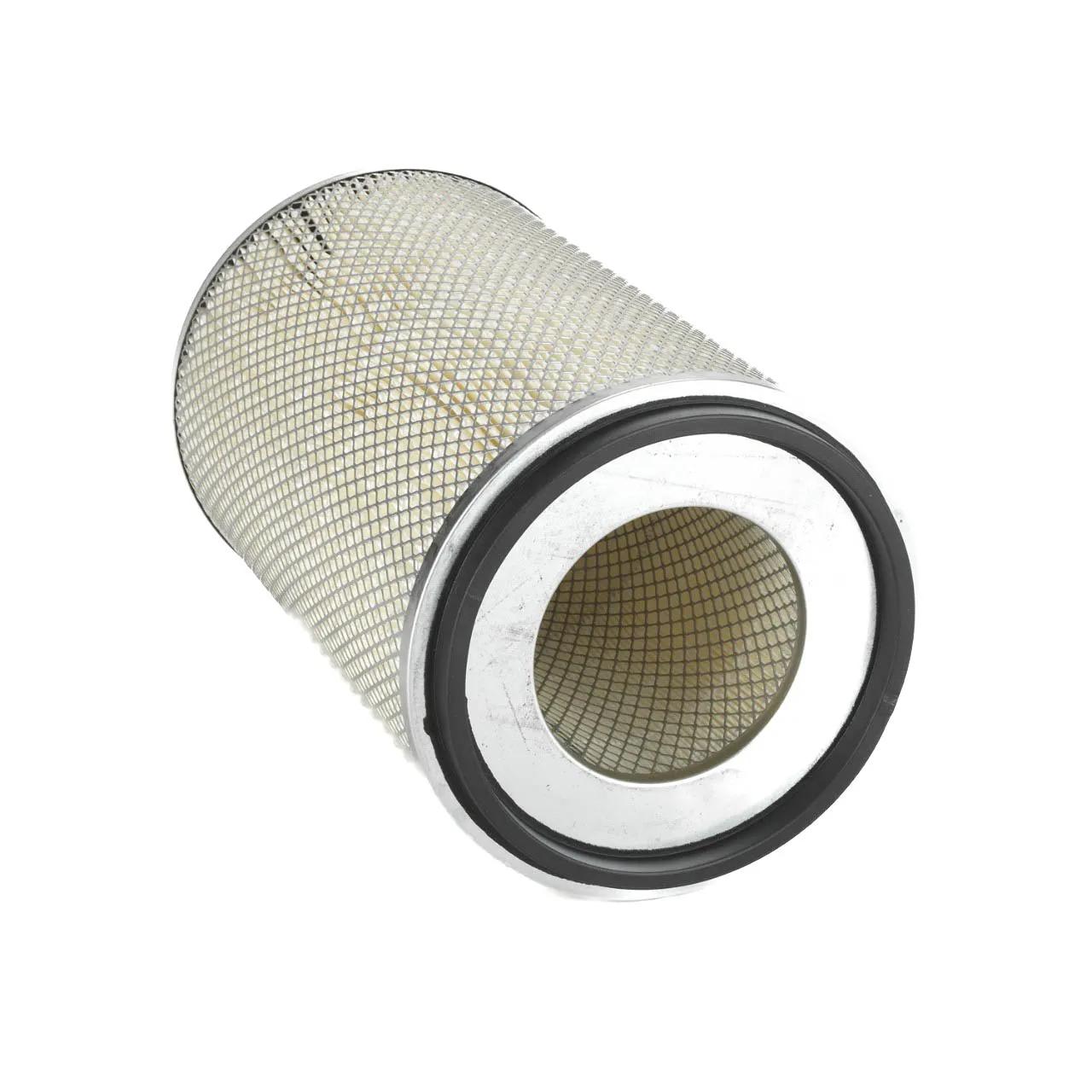

AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 9 to 9.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 4.85 in (123.2 mm) |
| Length | 15 in (381 mm) |
| Outer Diameter | 9.22 in (234.1 mm) |
| Overall Length | 15.5 in (393.7 mm) |
| Length Range | 15 to 15.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| P145704 |
| 2398 |
| 42398 |
| AR341 |
| ARM800168 |
| PA2451 |
| CFM489 |
| 87398 |
| R804200 |
| 10070 |
| AF1903 |
| AF4159 |
| AFR84159 |
| CA570 |
| AF349 |
| A5704 |
| A7815 |
| HDA5704 |
| HDA7815 |
| SA14109 |
| LA489 |
| A817 |
| LAF8559 |
| A1123C |
| C24640 |
| EFPA632 |
| 145704 |
| 70241N |
| 84960S |
| A62262 |
| A62262Q |
| AF2262 |
| AF2262Q |
| HDA5532 |
| A5623 |
| SL8926 |
| KA1631 |
| AE22110 |
| SFA5704P |
| 93398 |
| KA1580 |
| KA1620 |
| KA1652 |
| 2900534500 |
| 2914500200 |
| 3I0376 |
| 3I1433 |
| 9Y6831 |
| PCA570 |
| AEM2580 |
| AR90516 |
| 425360 |
| DX3852 |
| 6001813300 |
| FR1419 |
| FC344 |
| G817210 |
| 1440165610 |
| 14401B5610 |
| 6691807210 |
| 6691807210P |
| 6691807211 |
| 6691807211P |
| 6691807212 |
| 6691807212P |
| 6691817210 |
| 6691817212P |
| 6001812310 |
| EF477 |
| 787500 |
| N1550 |
| 101148 |
| AI3285 |
| HF1442 |
| R3004 |
| 686944 |
| AF145704 |
| 810840 |
| SA369 |
| WGA385 |
| 0787500 |
| 00810840 |
| 1440-1B-5610 |
| 2191-P145704 |
| 25097115 |
| 3I-0376 |
| 600-181-3300 |
| 84960 |
| 4XAF8 |
| PX1029 |
