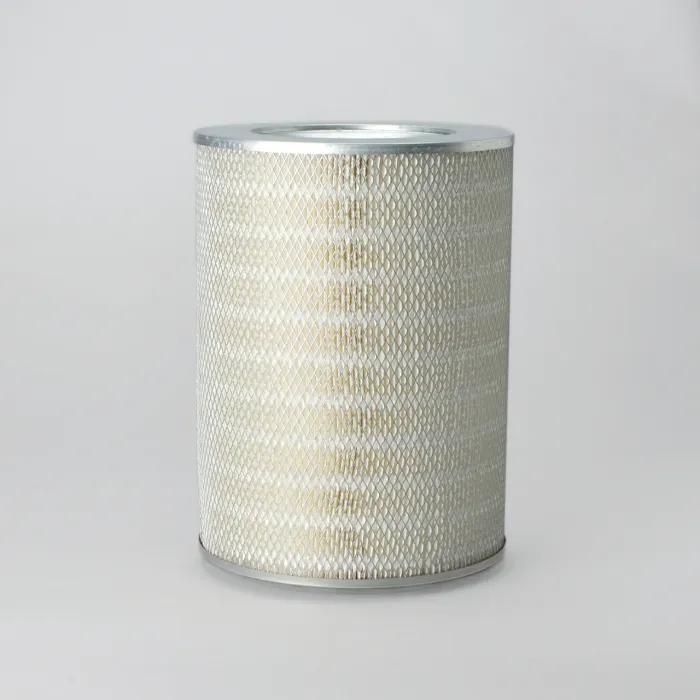

Air Filters L: 16,2 in, OD: 12,09 in, ID: 7,71 in
#DONP771523
Product Overview
AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.67 in (17.1 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 7.71 in (195.9 mm) |
| Length | 16.2 in (411.5 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 16.7 in (424.2 mm) |
| Length Range | 16 to 16.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| P771523 |
| 6698 |
| 93076E |
| LL2945 |
| PA2945 |
| 910025 |
| SA16523 |
| C311310 |
| SL6303 |
| 3216708100 |
| 3216708101 |
| 190719 |
| 1930788 |
| Y05769502 |
| FC522 |
| HD9236 |
| 5000953712 |
| LX765 |
| 19307880 |
| 026P771523 |
| 1849136 |
| CV9686 |
| 40041009 |
| 20002291022 |
| ZM2291022 |
| 811535 |
| WGA1047 |
| 22910220 |
| DN P771523 |
| DN P771523 |
| 021944 |
| 020002291022 |
| 2191-P771523 |
| 3I-1419 |
| 46698 |
| 5001785 |
| 88698 |
| AF4583M |
| DONP771523 |
| FIL6698 |
| LAF8660 |
| ZM22910220 |
| 21944 |
| 89002768 |
| M27505-12 |
| 4XCT7 |
| FMA0628 |
| AF4583 |
| 1201733H1 |
| P772523 |
| M2750512 |
| HA40138 |
| A2498C |
| CA2546 |
| 3I1419 |
