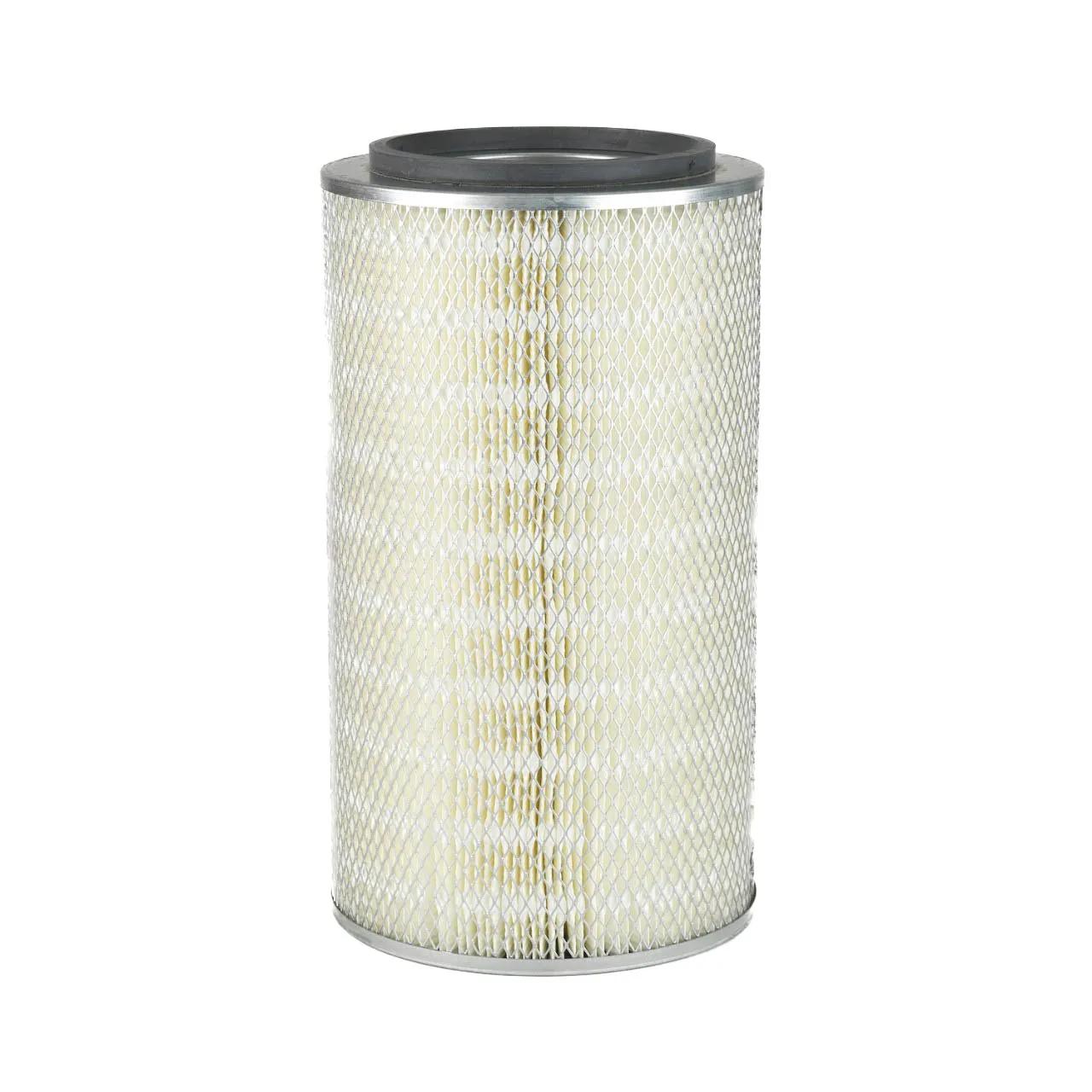

Air Filters L: 16 in, OD: 9,22 in, ID: 4,85 in
Specifications
| Application | TEREX 9059575 |
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 9 to 10 in |
| Efficiency | 99.9 |
| Efficiency (Percent) | 99.9 Percent |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 4.85 in (123.2 mm) |
| Length | 16 in (406.4 mm) |
| Outer Diameter | 9.22 in (234 mm) |
| Overall Length | 16.5 in (419.1 mm) |
| Standard Length | 16 to 17 in |
| Style | Round |
| Type | Primary |
Interchanges & Equivalent parts:
3I0838, 46642, 546642, AF1929, CA4276, CA7105, CA7467, PA2641, 020022722300, 0451867, 0744093, 0782300, 09059522, 101214, 2191-P181090, 242492803, 27-892-00, 3 074 305, 3074305M1, 3074305MI, 3096343M91, 38207916, 3I-0838, 4319263, 4319263EY102743, 450543, 451867, 488063-1, 4880631, 6130260, 68DB-9601-AB, 7360972, 77980508, 7980508, 83096343, 88642, 8874001547, 9059575, A511, A64559, A752, A876, ACU9896, AF643, AR079, ARM127532, AZA375, C24870, CH12276, DN P181090, DN P181090, DONP181090, FA3317, FCA3308, FIL6642, FLI6613, GA317, HDA7532, IIM1057, L234416.0, L2344160, LA906, LAF3714, MA725, MD-452, TM079, U0450543, V0450543, V450543, WGA303, Y05762303, P181090, 6642, 46642, 546642, 93305E, 020002272230, 09059575, 12055, 20002272230, 20022722300, 242491803, 2789200, 3074305M, 3096343M1, 3372006R1, 4372555, 4930350, 68DB9601AB, 70831N, 7401993, 747093, 9059522, 93305E, 94642, A64559Q, AF4559Q, AFR81929, AI3315, AP3528, AP3528A, CPD7077, DNP181090, E715L, EFA289, 1426089, 1426098, 83DB9601AA, AF4559, G127532, HDA5488, P127532, P450543, SA11879, SFA1090P, SMP181090, U0850543, DETZ, ZM2272230, 1, 3096343M91, 451867, 68DB-9601-AB, MD-452, 3074305M1, GA317, 88642, FCA3308, AZA375, Y05762303, WGA303, DONP181090, FIL6642, 0744093, LAF3714, A752, 3074305MI, A511, 3I-0838, 4319263EY102743, V450543, V0450543, LA906, C24870, CH12276, DN P181090, 7980508, AR079, 27-892-00, L234416.0, 4880631, 8874001547, FLI6613, ACU9896, A64559, DN P181090, 020022722300, L2344160, TM079, 0782300, 6130260, A876, FA3317, 38207916, 101214, 0451867, 4319263, 3 074 305, 2191-P181090, 242492803, 450543, 7360972, MA725, AF643, 83096343, 09059522, U0450543, 9059575, ARM127532, HDA7532, 488063-1, 77980508, IIM1057, CA4276, 3I0838, 46642, PA2641, 546642, CA7467, CA7105, AF1929, U0850543, E715L, 68DB9601AB, A64559Q, P127532, 4372555, 020002272230, 3372006R1, AFR81929, 242491803, 70831N, AF4559Q, 3074305M, 94642, 12055, G127532, SA11879, DNP181090, 7401993, AP3528, 2789200, AP3528A, 20022722300, 9059522, P450543, AI3315, 3096343M1, 4930350, SFA1090P, 93305E, 09059575, HDA5488, 20002272230, 747093, CPD7077, SMP181090, 1426089, EFA289, 1426098, AF4559, 83DB9601AA, 46642, 546642, 93305E, 6642, ZM2272230, DETZ, P181090, 6, 13980, SL6319, 2681745, 721810900, AHI1093, FC253, FC696, 1268A, HD7735, ABU9A96, AGU9896, 21009, 21972, 782300, 30781979, S1651, 2242914, 744093, AF181090, 811094, 811156
