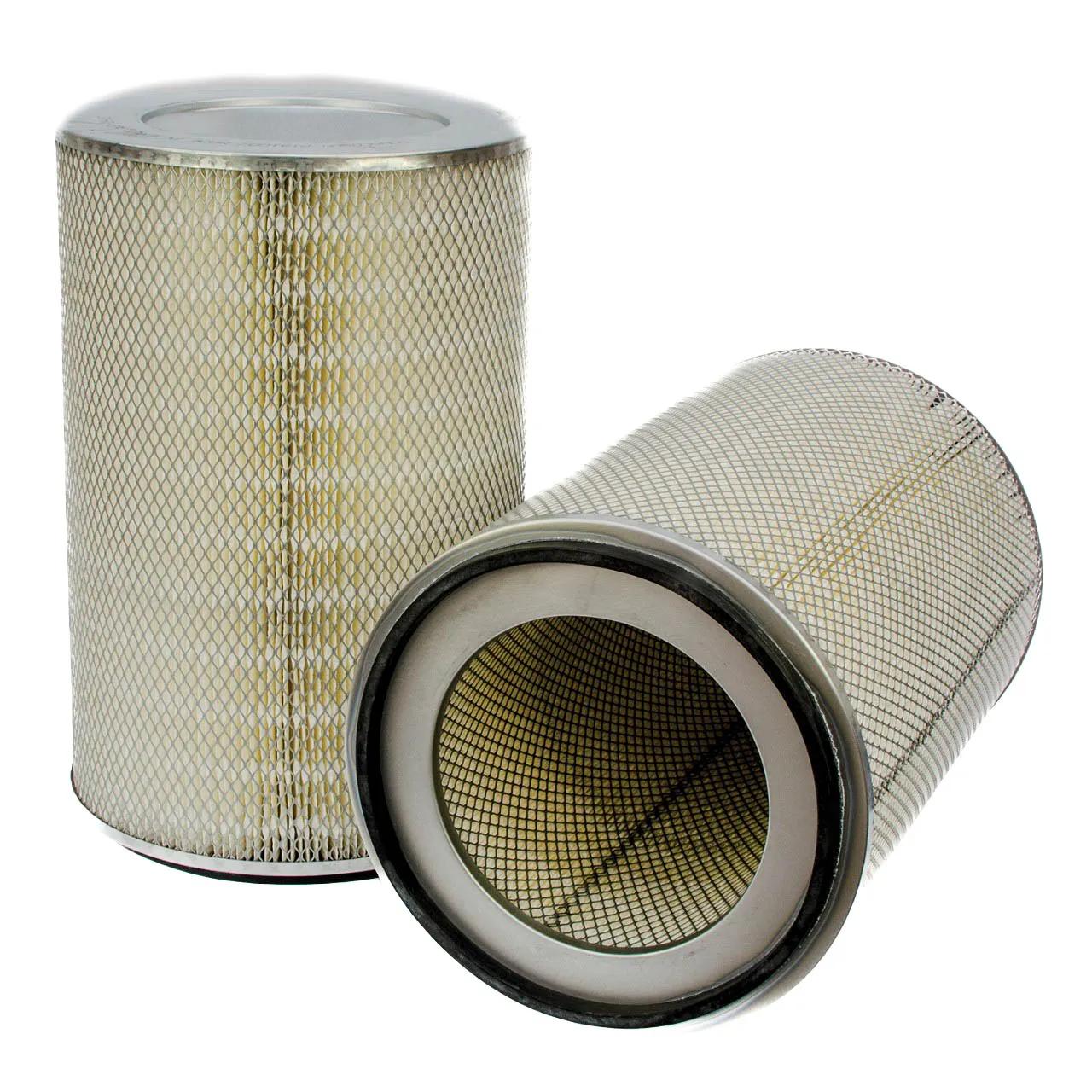

Air Filters L: 18 in, OD: 12,09 in, ID: 7,73 in
#DONP181002
Product Overview
Why Choose Donaldson Air Filters?
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Family | FHG |
| Inner Diameter | 7.73 in (196.4 mm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 18.5 in (469.9 mm) |
| Length Range | 18 to 18.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| AR102 |
| ARM106632 |
| ARM120841 |
| ARM181002 |
| 121778 |
| PA1846 |
| CFM323 |
| 87422 |
| AF1472 |
| LAF6632 |
| P811605 |
| EN16E1 |
| 118 |
| 39831 |
| E118 |
| FFA10792A |
| FFA792A |
| AF25395KM |

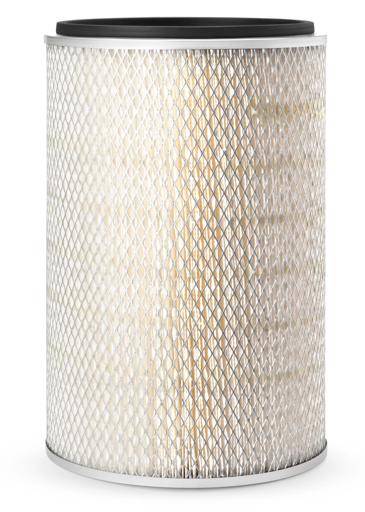

| AF472 |
| AF4506 |
| AF4506M |
| FA6632 |
| AFR825395KM |
| AFR8472 |
| CA502 |
| GA6129E |
| GA6129M |
| AF210 |
| A3149 |
| A3152 |
| A5699 |
| A7443 |
| E6632 |
| HDA3149 |
| HDA5699 |
| HDA6632 |
| HDA7443 |
| TME6632 |
| LA323 |
| A684 |
| LAF1760 |
| C311226 |
| C311390 |
| C31226 |
| MA15 |
| FA269 |
| FA89 |
| SFA282 |
| 2422 |
| 106632 |
| 117443 |
| 70352N |
| 70356N |
| APCA502 |
| 6676050 |
| A72138 |
| AF2138 |
| HDA5318 |
| SL8940 |
| 127602 |
| 127622 |
| SFA1002P |
| AP4807 |
| 2794500 |
| U06632 |
| 42422 |
| A127 |
| 93347E |
| PC142 |
| A394C |
| A0542997 |
| 3214303400 |
| MD290 |
| 197569 |
| 659387 |
| 0197569P |
| 197822 |
| 0198780P |
| 659386 |
| 0659386P |
| 198780 |
| 659378 |
| 6593875 |
| 70659386 |
| 70659387 |
| 70659397 |
| 832250 |
| 834639 |
| 396 |
| 93422 |
| AP847A |
| L3044700 |
| KA1606 |
| KA1623 |
| NA290 |
| 3014051066 |
| 104146 |
| 2914500800 |
| 352887 |
| 2654457 |
| 276998 |
| 277707 |
| 2910998295113 |
| 10682417 |
| 91021394 |
| 220947 |
| 1849120 |
| 31001517 |
| 532859 |
| 1987430063 |
| 12500 |
| AF472M |
| A0850528 |
| 2829S1 |
| 441093C1 |
| 7721517 |
| M0850528 |
| 30257 |
| 3I0372 |
| 3I0761 |
| 3I1432 |
| 7C8302 |
| 81536222 |
| 81800904 |
| 9034222 |
| 9Y6827 |
| G22040033 |
| P182002 |
| 42491 |
| 19831600 |
