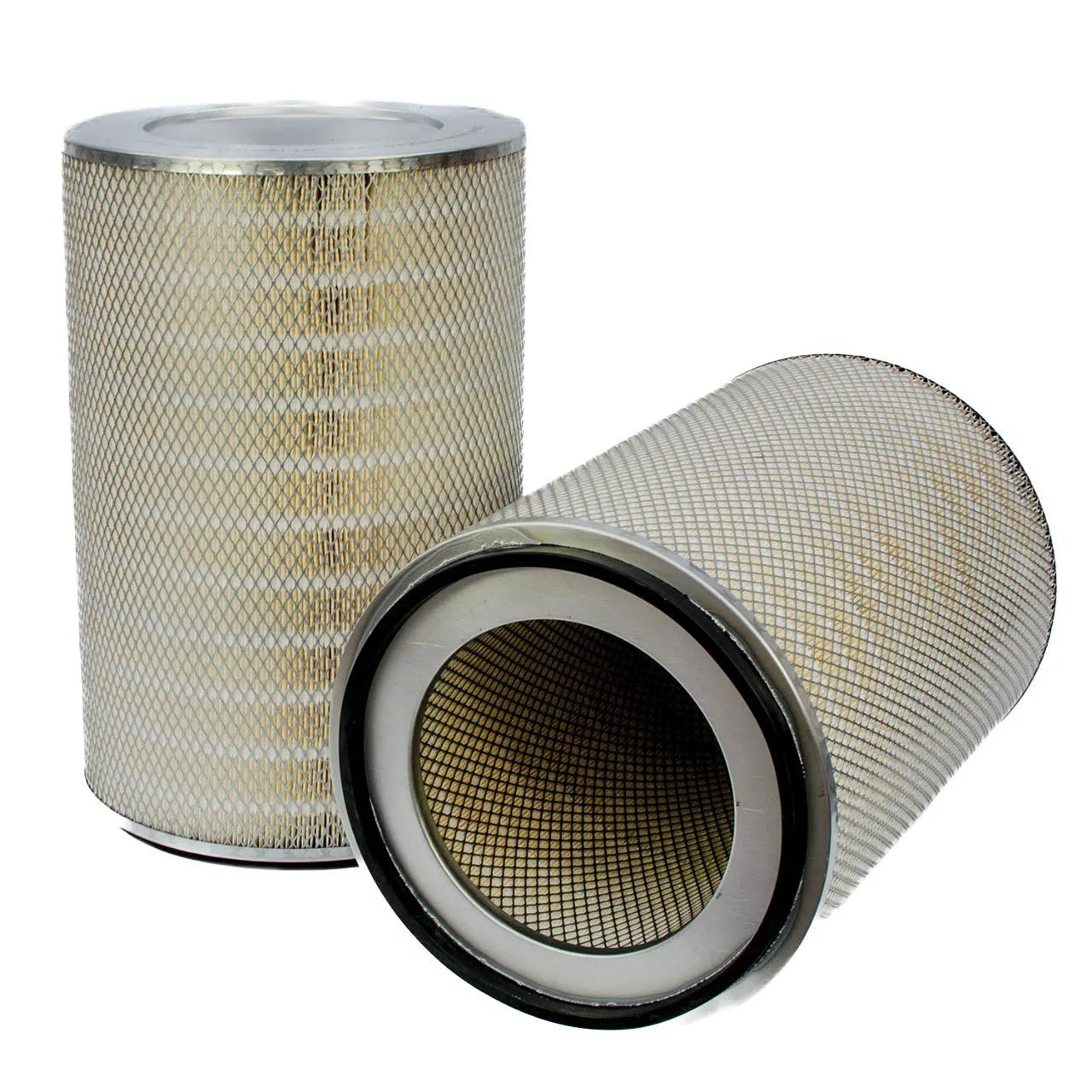

Air Filters L: 18 in, OD: 12,09 in, ID: 7,73 in
#DONP182002
Product Overview
AIR FILTER, PRIMARY ROUND
Features & Benefits
- Strong, reliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- More media pleats deliver higher dust-holding capacity and longer filter life
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 12 to 12.99 in |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Family | FHG |
| Inner Diameter | 7.73 in (196.4 mm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 12.09 in (307.09 mm) |
| Overall Length | 18.5 in (469.9 mm) |
| Length Range | 18 to 18.99 in |
| Style | Round |
| Type | Primary Air Filter |
Interchanges & Equivalent parts:
| 121778 |
| LL1846 |
| PA1846 |
| CFM323 |
| LAF6632XL |
| XBU1623 |
| P804205 |
| P812600 |
| P812602 |
| P117443 |
| P811624 |
| EN16E1 |
| 39831 |
| E118 |
| 9503 |
| FFA10792A |
| FFA792A |
| AF472M |
| FA6632 |
| AFR84506M |
| AFR8472M |
| GA6129 |
| A6632 |
| SA10422 |
| C311226 |
| 2422 |
| A5618 |
| A5658 |
| 93347E |
| W00011812 |
| 27407 |
| 7721517 |
| AG027407 |
| 197569 |
| 197822 |
| 198780 |
| 659378 |
| 6593875 |
| 70659386 |
| 70659397 |
| 0197569P |
| 0198780P |
| 0659386P |
| 659386 |
| 832250 |
| 834639 |
| 491NNA |
| AE16070 |
| AE16440 |
| AE22120 |
| SFA1002P |
| SFA7033SET |
| AP847A |
| L3044700 |
| 3014051066 |
| 352887 |
| 2914500800 |
| 1310032430 |
| 2934998609 |
| 353450 |
| 5535345000 |
| 9826095048 |
| 276998 |
| 277707 |
| 2654457 |
| 180935 |
| 76041812 |
| STC67511002 |
| 10682417 |
| 30004243 |
| 532859 |
| 31001517 |
| 61324807 |
| 61384978 |
| 1324807 |
| AT253843 |
| 12500 |
| 2829S1 |
| 441093C1 |
| M0850528 |
| 151849120 |
| 1849120 |
| 1930761 |
| 707721517 |
| A0850528 |
| A238 |
| D6250506 |
| 30257 |
| 9034222 |
| 81536222 |
| 81800904 |
| 3I0372 |
| 3I0761 |
| 3I1432 |
| 7C8302 |
| 9Y6827 |
| OE45521 |
| 3I0892 |
| 1046Z670 |
| 7218103400 |
| 20PS2690 |
| 295PS269 |
| 295PS2690 |
| 945867 |
| 1513874 |
| 1529622 |
| 61805694 |
| 1529585 |
| 3664919 |
| 946857 |
| 123353050 |
| 43778 |
| 982625006 |
| 982625026 |
| 9826250060001 |
| 9826250260001 |
| PA1846XP |
| QSA502 |
| 42422NP |
| 87422XP |
| A6025C |
| LAF6632MXM |
| A394CF |
