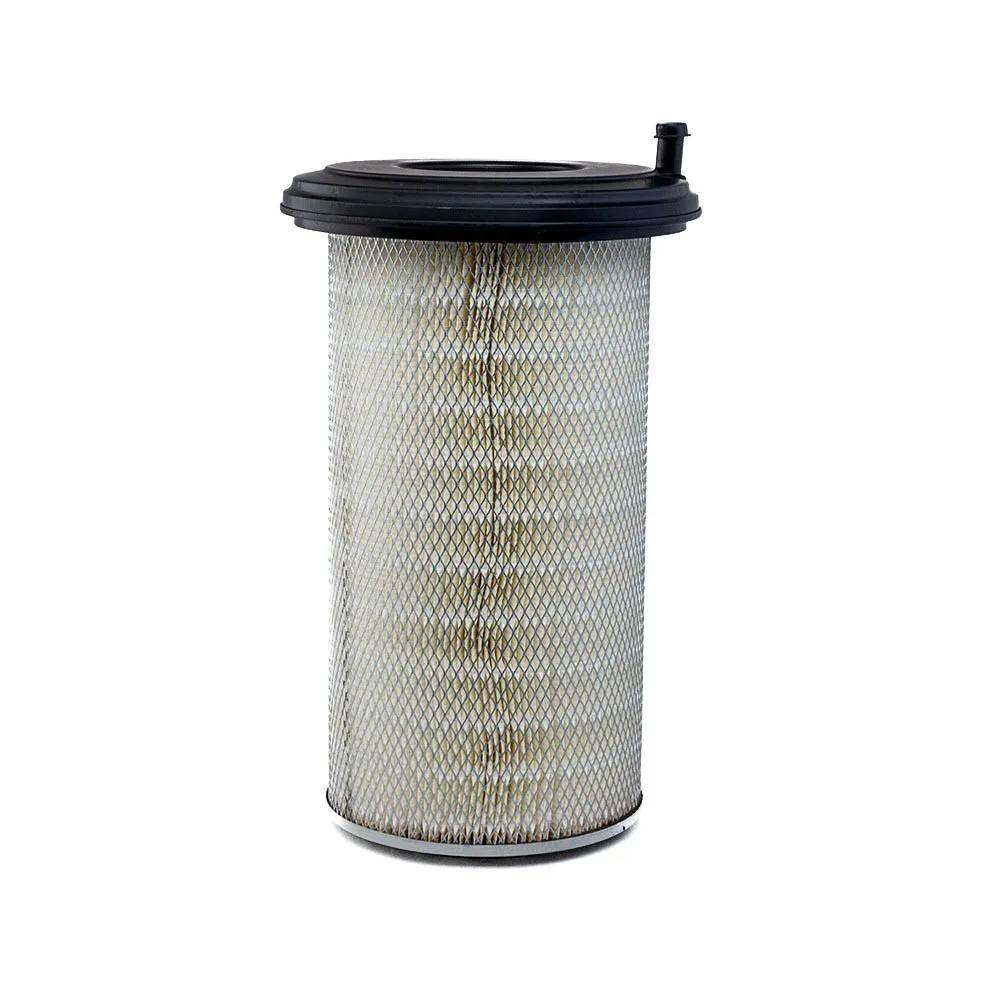

Air Filters L: 19,13 in, OD: 9,57 in, ID: 5,16 in

#DONP775896

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Bolt Hole Diameter 0.43 in (11 mm)
Diameter Range 9 to 9.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 5.16 in (131.1 mm)
Length 19.13 in (486 mm)
Outer Diameter 9.57 in (243 mm)
Overall Length 19.65 in (499.2 mm)
Length Range 19 to 19.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P775896
42407E
AR300
AF4737
E281L01
SA14687
C246503
A77102
SL85461
AEM2118
DX0561S
Y05784512
FC218S
LX451
365721
365727
370570
370750
2242046
AF775896
2191-P775896
DONP775896
PA2981
365 727
DN P775896
370 750
DN P775896
LAF3702
A2309C
