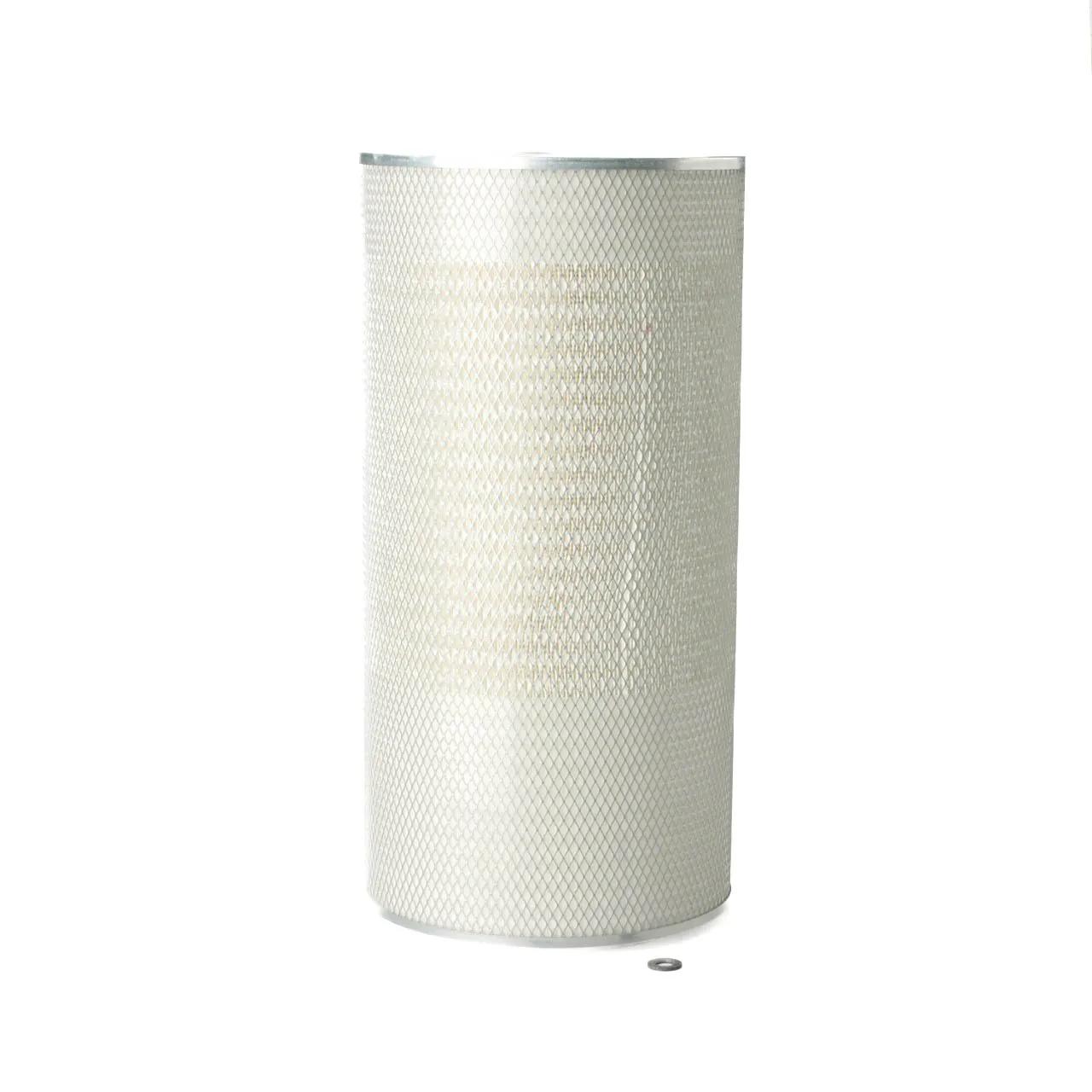

Air Filters L: 24 in, OD: 12,09 in, ID: 7,71 in

#DONP772581

See More
See Less

Features & Benefits


  • Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow

Specifications


Application PERLINI 350087A
Bolt Hole Diameter 0.67 in (17.1 mm)
Diameter Range 12 to 12.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Inner Diameter 7.71 in (195.9 mm)
Length 24 in (609.6 mm)
Outer Diameter 12.09 in (307.09 mm)
Overall Length 24.5 in (622.3 mm)
Length Range 24 to 24.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P772581
AF25335
CA5380
SA16581
SL5641
FLI6826
111340
Y05816908
FC533
7650137
7650276
HD9926
3047007
9231100531
EF872
20051
350087A
86903749
11022209
1934916
AF772581
811613
2016
020051
00811613
2191-P772581
DONP772581
MD-7384
DN P772581
DN P772581
