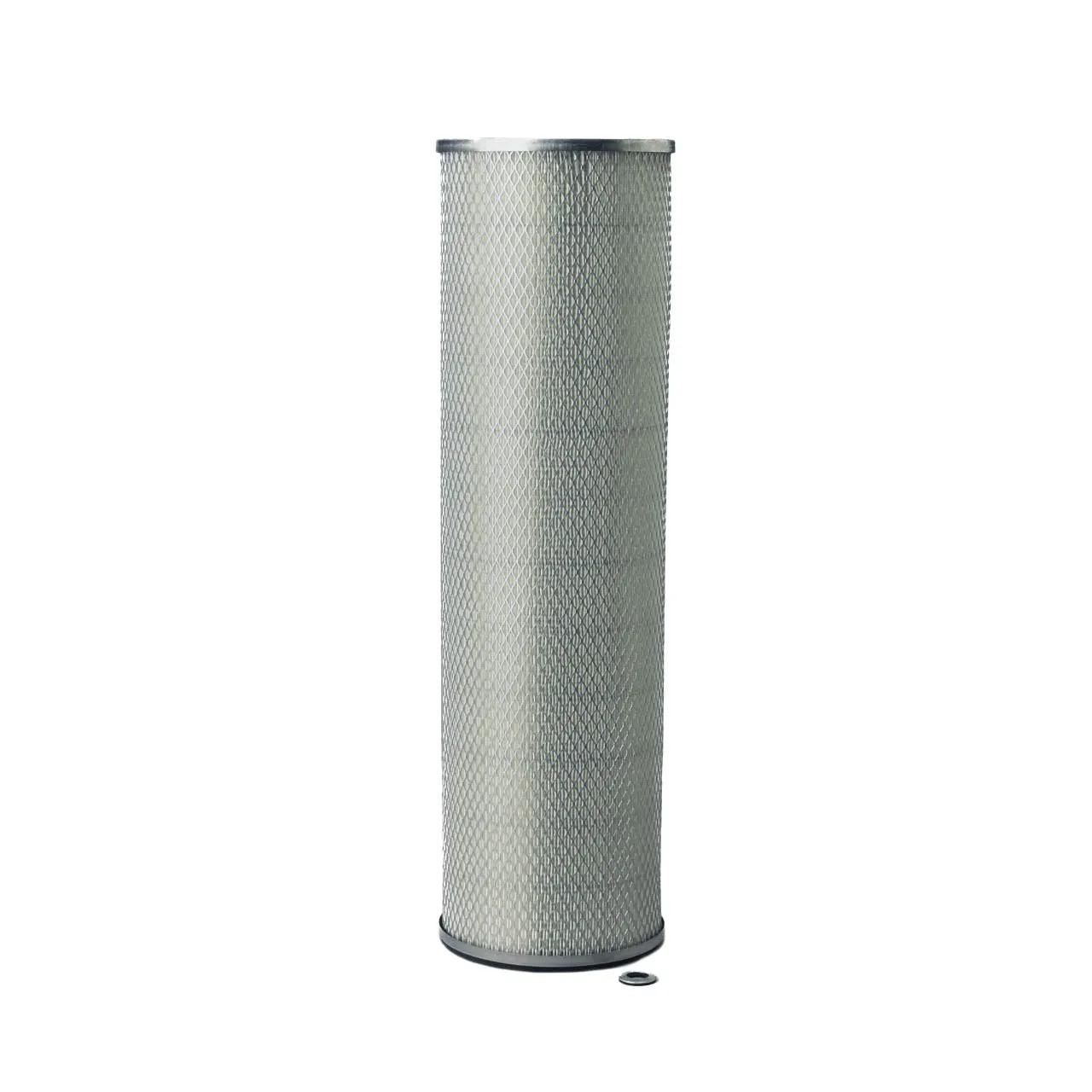

Air Filters L: 25,39 in, OD: 7,37 in, ID: 6,11 in
#DONP546613
Product Overview
Why Choose Donaldson Safety Filters?
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | AIR MAZE CD1628610827 |
| Diameter Range | 7 to 7.99 in |
| Efficiency Test Std | ISO 5011 |
| Family | ERA |
| Inner Diameter | 6.11 in (155.2 mm) |
| Length | 25.39 in (645 mm) |
| Outer Diameter | 7.37 in (187 mm) |
| Length Range | 25 to 25.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| ARM827 |
| 122239 |
| 88856 |
| AF26083 |
| AF4675 |
| AFR84675 |
| AHR819005 |
| CA7699SY |
| 6856 |
| 46856 |
| 546856 |
| 279737 |
| 94856 |
| 21000201 |
| RN240862 |
| 9VX8171 |
| LX7225200814 |
| 64083040002 |
| CD1628610827 |
| 1402410 |
| 1402466 |
| 234593 |
| 409262 |
| 330560327 |
| AF546613 |
| AH546613 |
| WGA1153S |
| WGA698S |
| WGCS3010 |
| 2191-P546613 |
| A1521C |

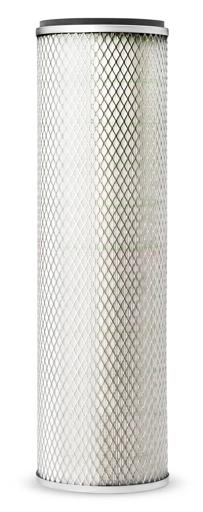

| AF4675FLG |
| AH19324 |
| CD1628610-827 |
| DONP546613 |
| FIL6856 |
| LA1577 |
| PA2745 |
| 8200076 |
| DN P546613 |
| DN P546613 |
| VA-394 |
| HDA03011 |
| 88866 |
| 3XUL9 |
| PA2744 |
