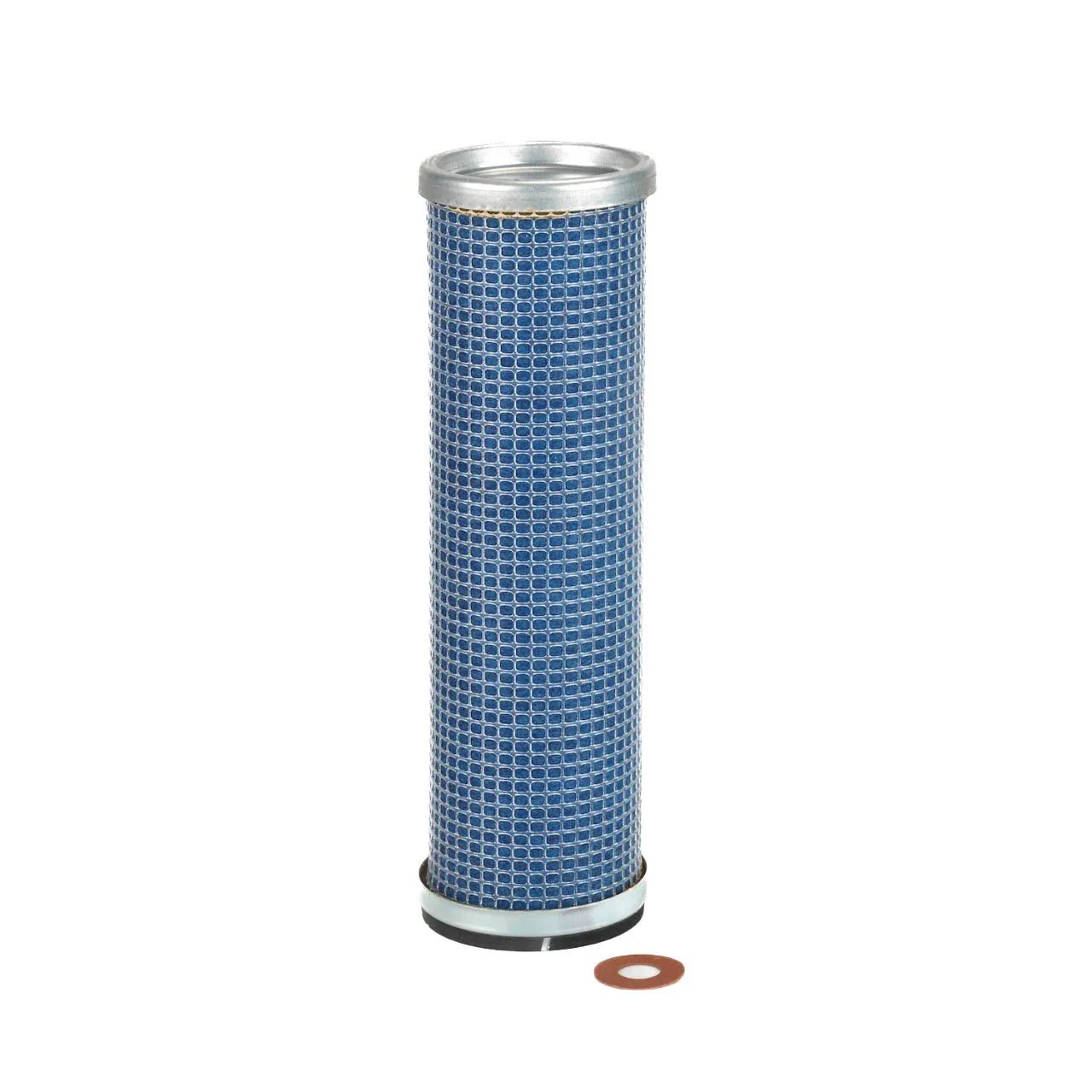

Air Filters L: 9,75 in, OD: 2,94 in, ID: 2,38 in
#DONP526501
Product Overview
AIR FILTER, SAFETY
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Bolt Hole Diameter | 0.45 in (11.5 mm) |
| Diameter Range | 2 to 2.99 in |
| Efficiency Test Std | ISO 5011 |
| Inner Diameter | 2.38 in (60.5 mm) |
| Length | 9.75 in (247.7 mm) |
| Outer Diameter | 2.94 in (74.68 mm) |
| Length Range | 9 to 9.99 in |
| Style | Round |
| Type | Safety Air Filter |
Interchanges & Equivalent parts:
| P526501 |
| 6333 |
| 46333 |
| 546333 |
| CD0612509830 |
| CD0612514830 |
| CD0612610830 |
| CD0812509830 |
| CD0812509890 |
| AR248 |
| ARM8125 |
| 121970 |
| 191970 |
| PA2514 |
| 88333 |
| 2802 |
| 280002 |
| 9584 |
| AF1766 |
| AF4132 |
| AFR81766 |
| AFR84132 |
| AHR81143 |
| AHR81166 |
| AHR81167 |
| CA2565SY |
| AF586 |
| A03003 |
| HDA03003 |
| SA11716 |
| LA865 |
| LAF3707 |
| FA952 |
| 84850S |
| A43400 |
| A43400Q |
| A63262 |
| AF3262 |
| AF3400 |
| FA952Q |
| A5009 |
| 2715700 |
| 250C139 |
| 250C148S |
| V250CX493A |
| A851C |
| SFA0501S |
| 1505 |
| 94333 |
| ABP3001563 |
| D5NN9R500A |
| 83908367 |
| D5NN9R500B |
| 3I1057 |
| AZA195 |
| AZA195T |
| DX2515 |
| P526501016140 |
| 3908367 |
| D6NN9R500A |
| FC374 |
| 305A |
| ADG681 |
| 39148960 |
| AP3630 |
| LK3630 |
| 20774 |
| E2750574 |
| TM248 |
| VPD7010 |
| AF526501 |
| 811879 |
| WGA191S |
| WGCS3002 |
| 020774 |
| 00811879 |
| 2191-P526501 |
| 25041993 |
| 3I-1057 |
| AF1766FLG |
| AF326 |
| 4ZJP9 |
| S7157A |
