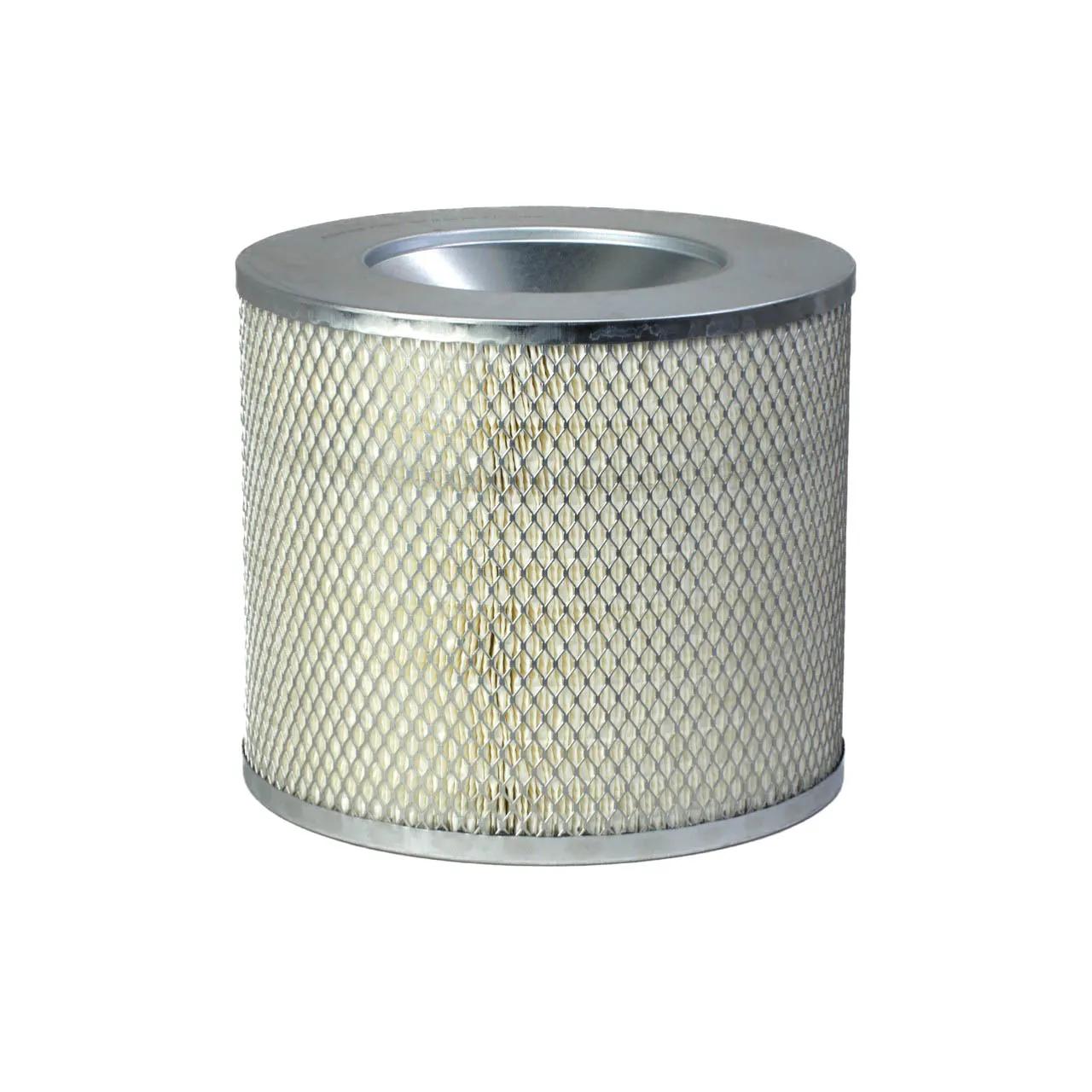

Air Filters L: 9 in, OD: 10,41 in, ID: 6,94 in

#DONP182033

See More
See Less

Features & Benefits


  • Strong, reliable gasket is compressed against the air cleaner housing to create a tight seal
  • High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
  • More media pleats deliver higher dust-holding capacity and longer filter life
  • Corrosion resistant, coated steel liners support media during operation and help maximize airflow
  • Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life

Specifications


Bolt Hole Diameter 0.53 in (13.5 mm)
Diameter Range 10 to 10.99 in
Efficiency (Percent) 0.999
Efficiency Test Std ISO 5011
Family SBG
Inner Diameter 6.94 in (176.3 mm)
Length 9 in (228.6 mm)
Outer Diameter 10.41 in (264.42 mm)
Length Range 9 to 9.99 in
Style Round
Type Primary Air Filter

Interchanges & Equivalent parts:


P182033
2890
42890
LL16212
PA1621OPC
9505
AF354M
SA10304
AF100890
A5721
127233
30633
SFA1033P
1619129600
ELM00043
701419
916130
3I0914
7218103300
1564647
891873
E4015859
M12969818
4015859
9038895
Y00586607
Y00704404
Y02204404
9576P181033
80974025
929591
HD6925
4357887
M00266
91671180
92003490
9030537
9191704
351133
155209H2
73913
471599
728340
CK88491
WA6622
785600
HF1276
3564000
3564131
50001496
101029
101030A
9059505
9387554
1003608
1003612
915699
AF182033
1296818
12969818
811050
811725
03178
0003564000
0003564131
044819
00811050
00811725
115209H2
152776
152776H1
15520111
15520112
155209
155209H1
164090
164090H1
194229
194273
1MD374
2191-P182033
2191P100890
2191P101203
2191P16890
2191P17064
22005-5066
257881
257881C91
257888R91
265119C91
2MD186
2MD3101
2MD3102
2MD352
2MD354
2MD374
309967C91
3564
LL1621-2
2700047
A2295C
QSA252
44819
