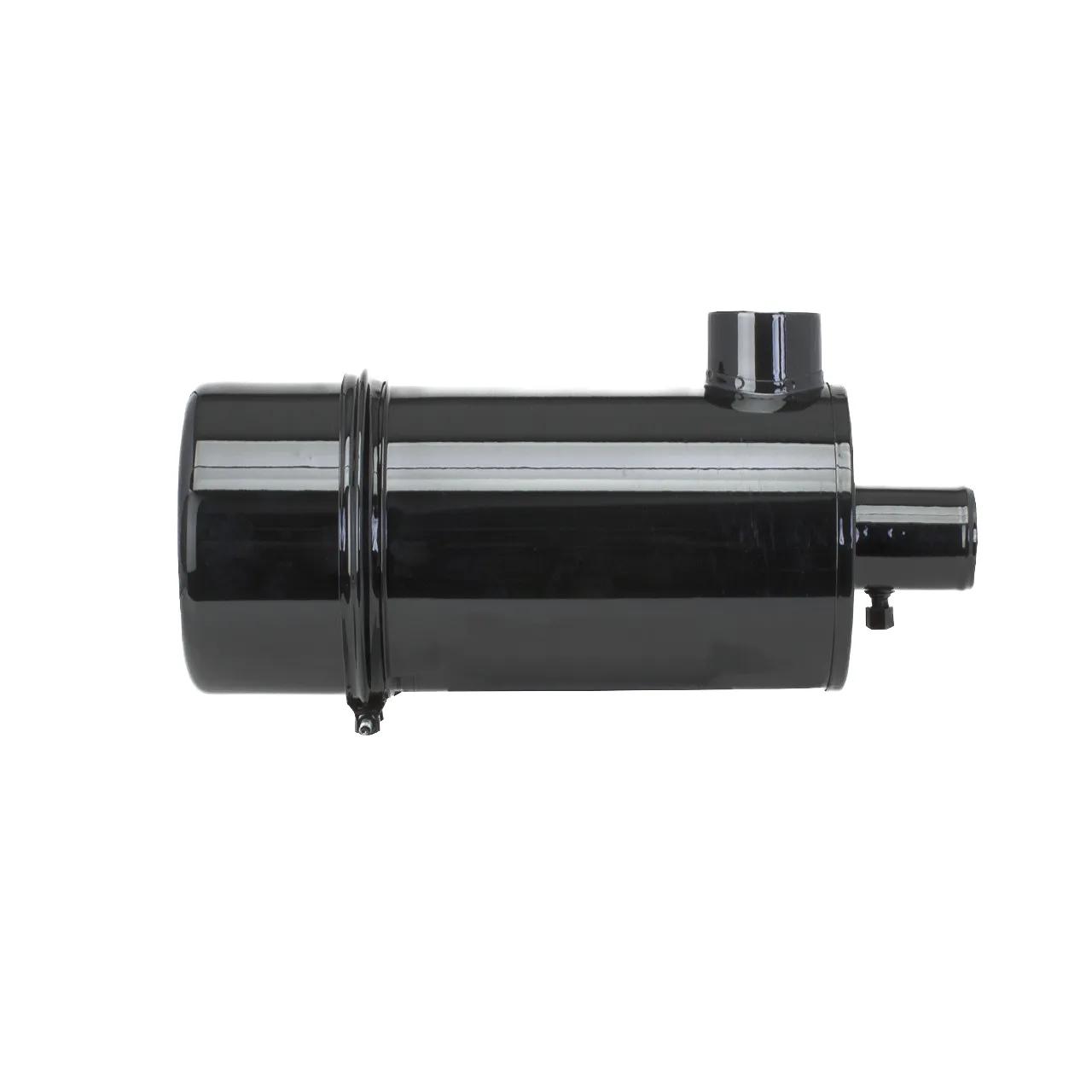

Air Filtration System L: 10,03 in, OD: 2,25 in, ID: 2,5 in
#DONG065266
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
6.5 in (165.1 mm) |
| Diameter Range |
6 to 6.99 in |
| Family |
FWG |
| Height |
12-21/32 in (32.16 cm) |
| Inlet Diameter |
2.52 in (64.01 mm) |
| Inner Diameter |
2,5 in (63,5 mm) |
| Length |
10.03 in (254.8 mm) |
| Outlet Diameter |
2.25 in (57.15 mm) |
| Overall Length |
16.59 in (421.4 mm) |
| Rated Flow High Range |
145 cfm (4,11 m³/min) |
| Rated Flow Low Range |
114 cfm (4 m³/min) |
| Rated Flow Mid Range |
131 cfm (3,71 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5,99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
10 to 10.99 in |
| Width |
9-3/16 in (23.34 cm) |
| G065266 |
| Y0602046232 |
| 351855 |
| 1000114 |
| 122907 |
| 4647 |
| 199845 |
| 505511 |
| 740405 |
| DN G065266 |
| 00004647 |
| 2191-G065266 |
| DN G065266 |
| DONG065266 |
