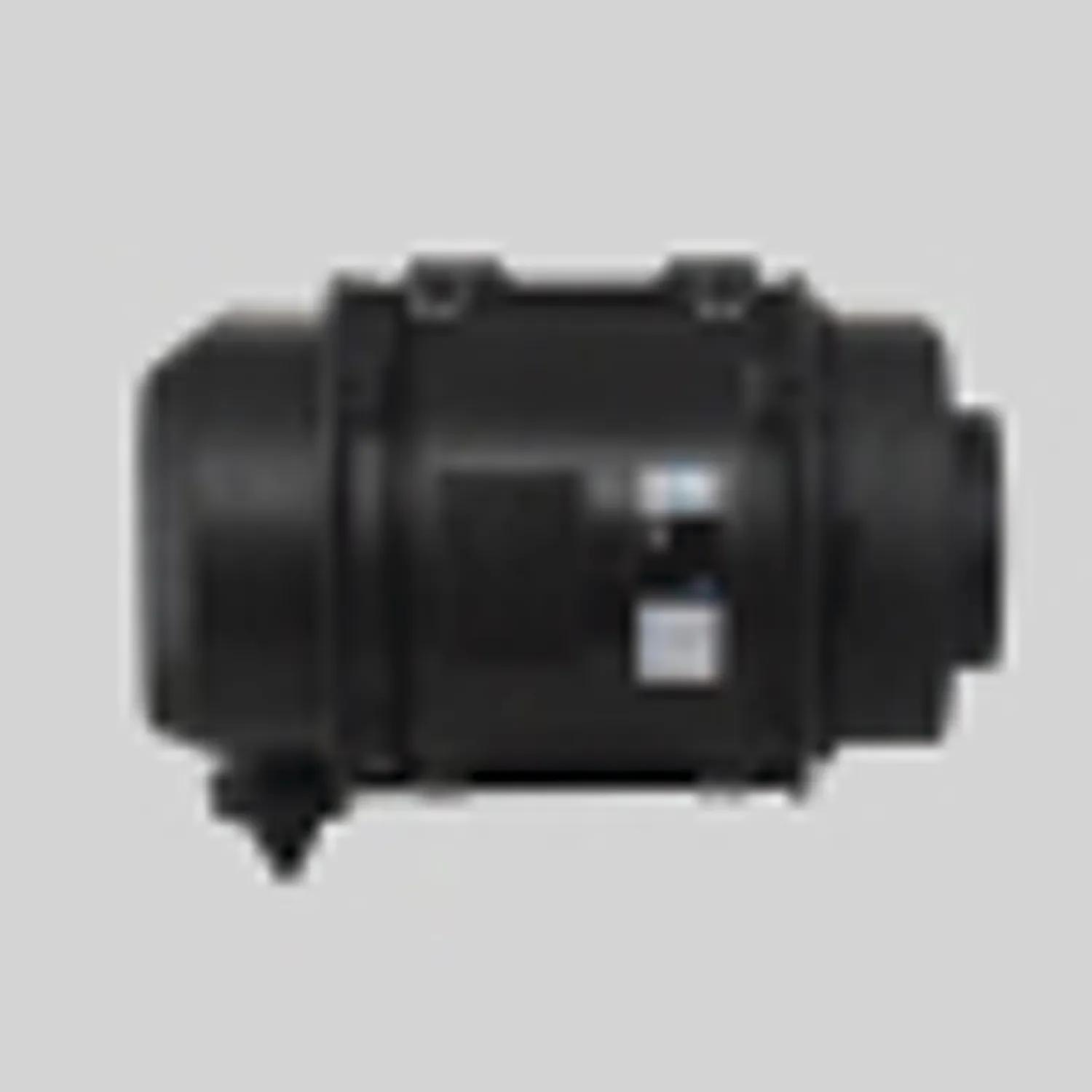

Air Filtration System L: 10,31 in, OD: 6 in
#DOND120036
Product Overview
Donaldson branded filters are designed specifically to give you effective, consistent performance over the life of your engine. The company that invented air filters for heavy-duty engines delivers the broadest vehicle and equipment coverage, the most consistent quality and the best overall performance.
Specifications
| Diameter Range | 6 to 6.99 in |
| Family | PSD |
| Length | 10.31 in (261.9 mm) |
| Media Brand | PowerCore® |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 19.53 in (496.1 mm) |
| Rated Flow High Range | 900 cfm (25,5 m³/min) |
| Rated Flow Low Range | 689 cfm (19,5 m³/min) |
| Rated Flow Mid Range | 801,65 cfm (22,7 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 6,01 in H2O (152,4 mm H2O) |
| Restriction MR | 8,01 in H2O (203,2 mm H2O) |
| Length Range | 10 to 10.99 in |
Interchanges & Equivalent parts:
| D120036 |
| 2191-D120036 |
| DN D120036 |
| DN D120036 |
| DOND120036 |
