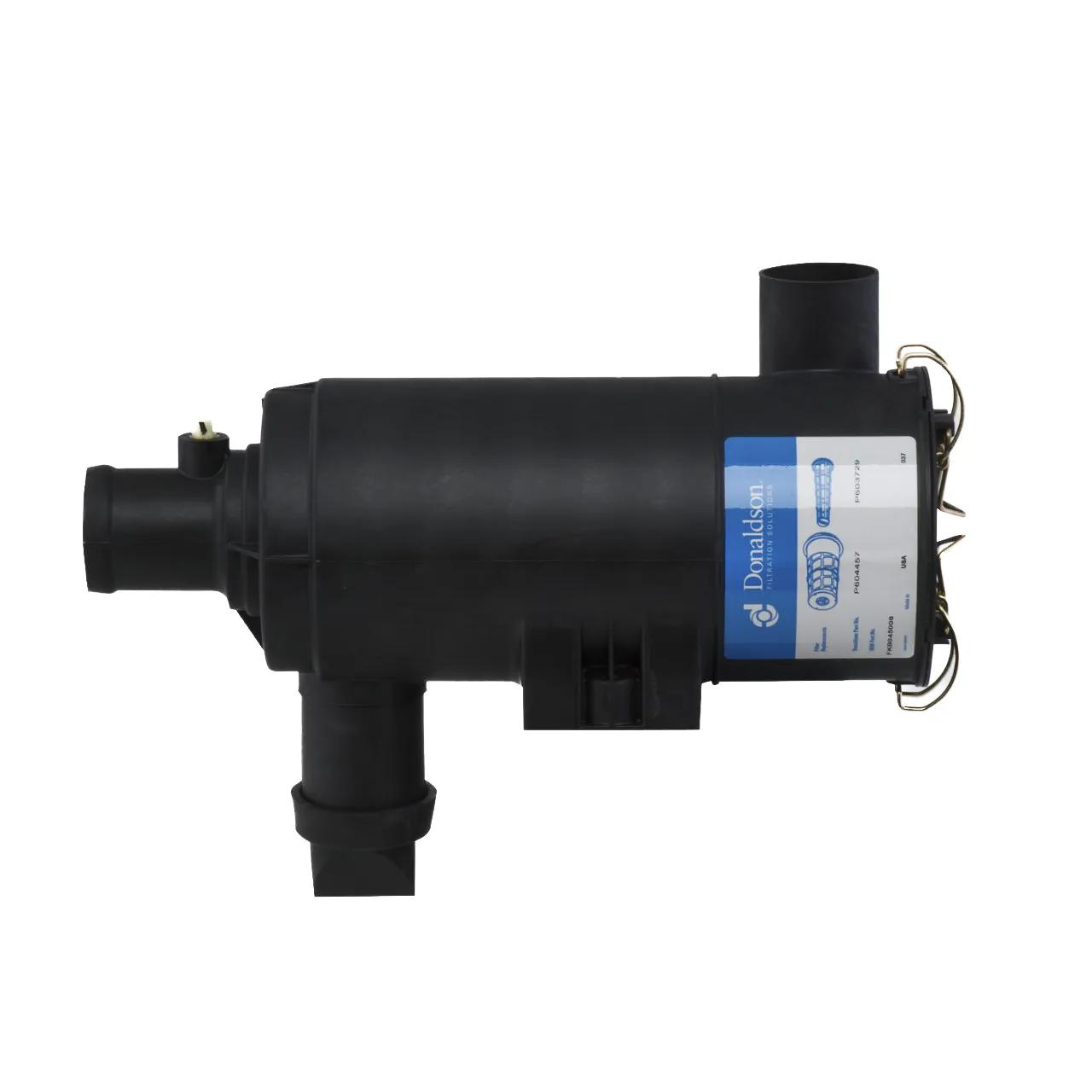

Air Filtration System L: 10,46 in, OD: 2 in, ID: 2 in
#DONB045008
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.25 in (133.4 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FKB |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Inner Diameter | 2 in (50,8 mm) |
| Length | 10.46 in (265.7 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Overall Length | 13.48 in (342.4 mm) |
| Rated Flow High Range | 95 cfm (2,7 m³/min) |
| Rated Flow Low Range | 71 cfm (2 m³/min) |
| Rated Flow Mid Range | 84,76 cfm (2,4 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 10 to 10.99 in |
Interchanges & Equivalent parts:
| DN B045008 |
| 2191-B045008 |
| DONB045008 |
