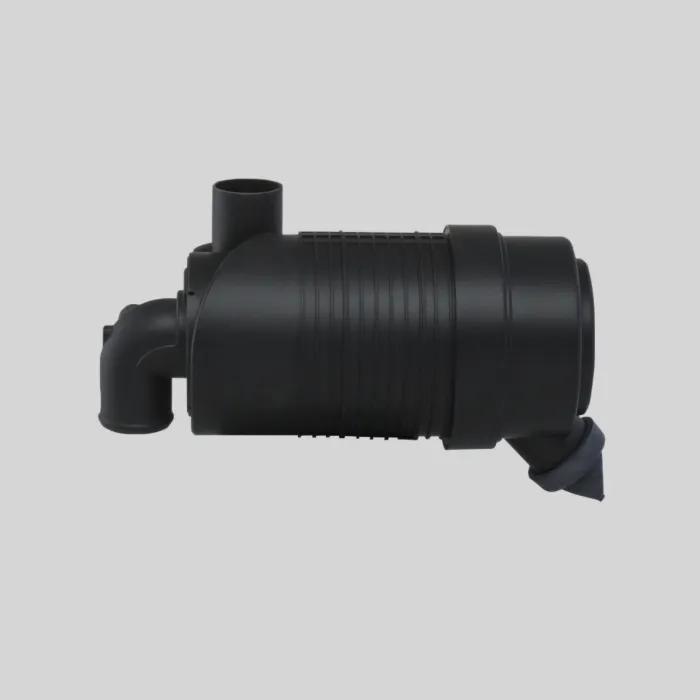

Air Filtration System L: 10,95 in, OD: 2 in, ID: 2 in
#DONG052741
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | inWERPLEAT 5 |
| Diameter | 5.6 in (142.3 mm) |
| Diameter Range | 2 to 2.99 in |
| Family | FPG |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 10.95 in (278.2 mm) |
| Outer Diameter | 2 in (50.8 mm) |
| Overall Length | 14.16 in (359.7 mm) |
| Rated Flow High Range | 80 cfm (2.29 m³/min) |
| Rated Flow Low Range | 62 cfm (1.73 m³/min) |
| Rated Flow Mid Range | 72.05 cfm (2.04 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 6.01 in H20 (152.7 mm H20) |
| Restriction MR | 8.01 in H2O (203.2 mm H2O) |
| Length Range | 10 to 10.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| G052741 |
| G052741-016-140 |
