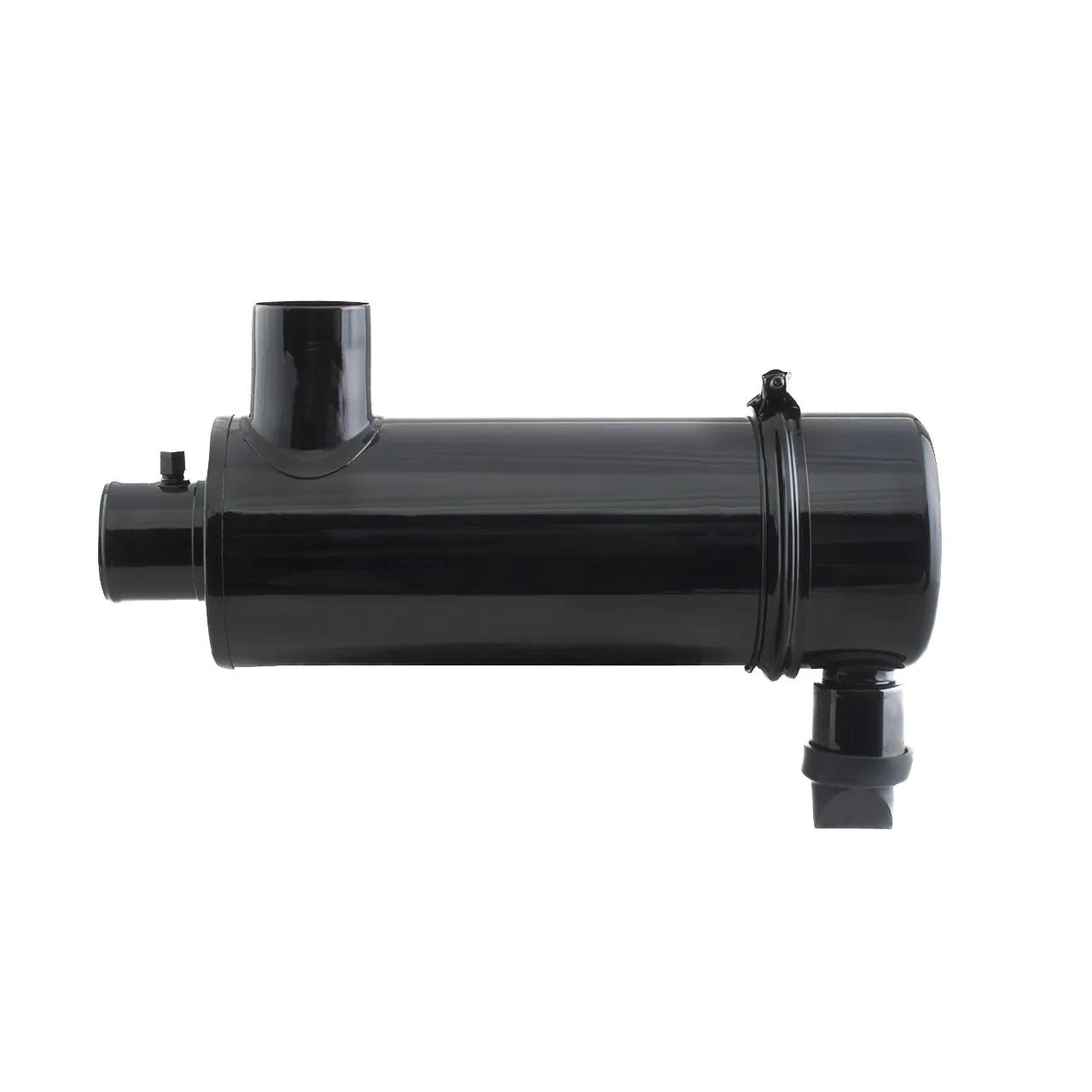

Air Filtration System L: 11,56 in, OD: 2,5 in, ID: 2,5 in
#DONG052685
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.25 in (133.4 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FRG |
| Inlet Diameter | 2.52 in (64.01 mm) |
| Inner Diameter | 2.5 in (63.5 mm) |
| Length | 11.56 in (293.7 mm) |
| Outlet Diameter | 2.5 in (63.5 mm) |
| Overall Length | 17.06 in (433.4 mm) |
| Rated Flow High Range | 106 cfm (3.01 m³/min) |
| Rated Flow Low Range | 82 cfm (2.3 m³/min) |
| Rated Flow Mid Range | 95.35 cfm (2.7 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 11 to 11.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 2191-G052685 |
| DONG052685 |
| DN G052685 |
| DN G052685 |
