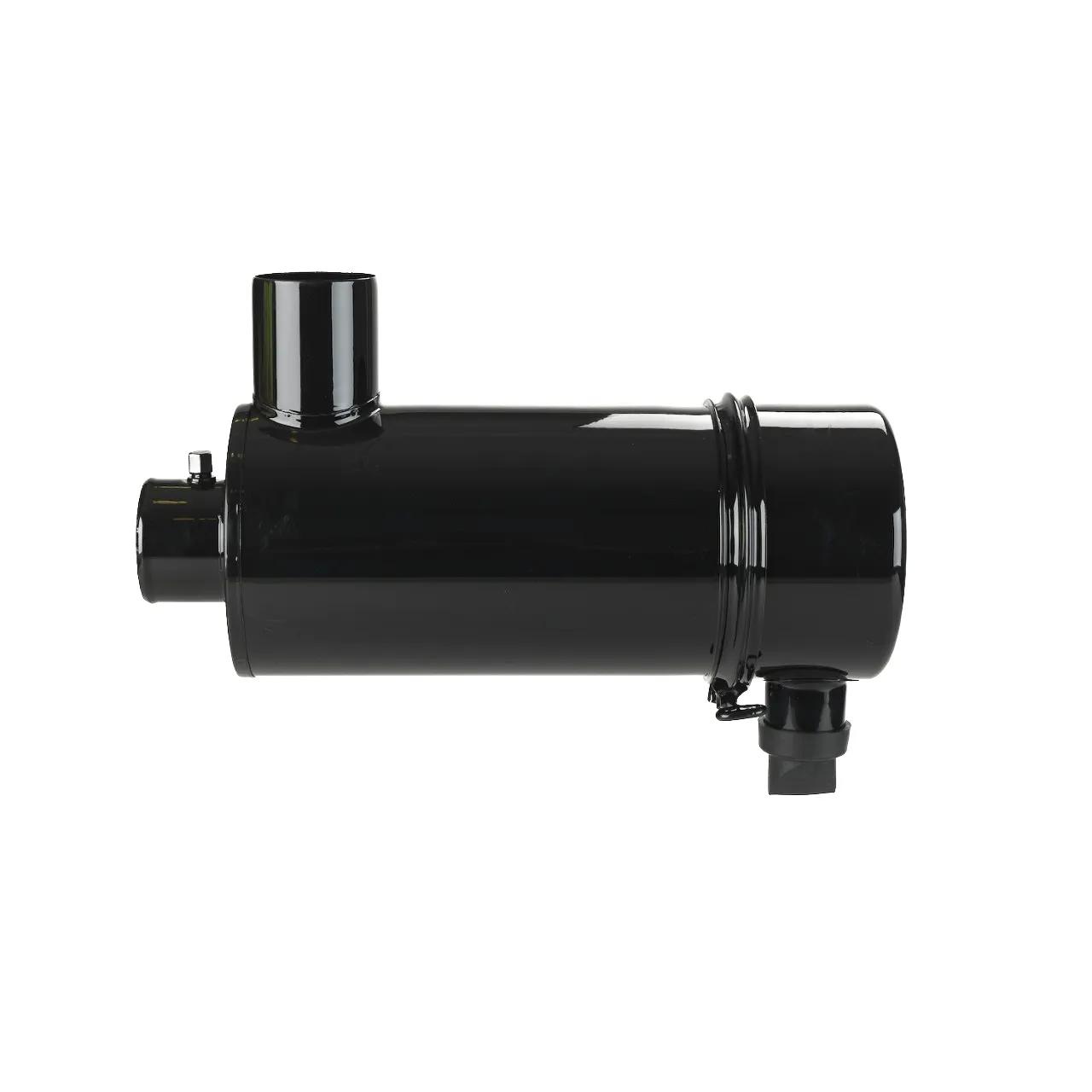

Air Filtration System L: 11,69 in, OD: 3 in, ID: 3 in
#DONG065541
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 6,56 po (166,7 mm) |
| Plage de diamètre | 6 à 6.99 po |
| Famille | FRG |
| Diamètre d'entrée | 2,99 po (75,95 mm) |
| Diamètre intérieur | 3 po (76,2 mm) |
| Longueur | 11,69 po (297 mm) |
| Diamètre de sortie | 3 po (76,2 mm) |
| Longueur totale | 17,83 po (452,9 mm) |
| Gamme haute de débit nominal | 174 cfm (4,93 m³/min) |
| Plage basse de débit nominal | 131 cfm (4 m³/min) |
| Milieu de gamme de débit nominal | 156 cfm (4,42 m³/min) |
| Restriction FC | 10 po H20 (254 mm H20) |
| Restriction LR | 5,99 po H20 (152,1 mm H20) |
| RM de restriction | 8 po H20 (203,2 mm H20) |
| Plage de longueur | 11 à 11.99 po |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 477695 |
| DN G065541 |
| DN G065541 |
| 2191-G065541 |
| DONG065541 |
