Air Filtration System L: 11,69 in, OD: 3 in, ID: 3 in
#DONG065551
Product Overview

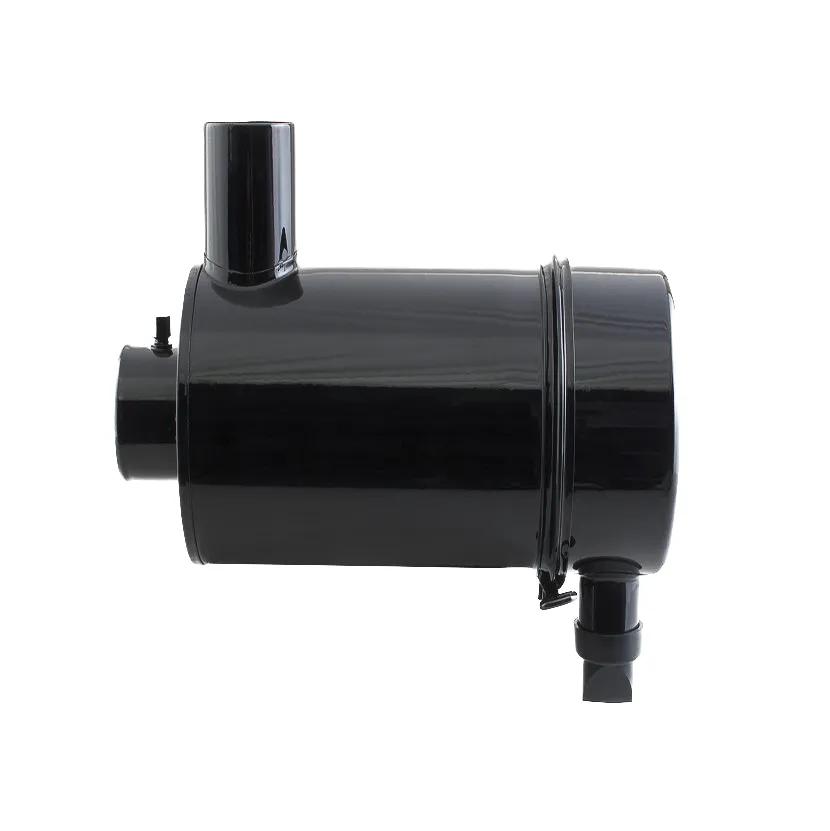

AIR CLEANER, FRG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 6.56 in (166.7 mm) |
| Diameter Range | 3 to 3.99 in |
| Family | FRG |
| Inner Diameter | 3 in (76.2 mm) |
| Length | 11.69 in (297 mm) |
| Outer Diameter | 3 in (76.2 mm) |
| Overall Length | 17.83 in (452.9 mm) |
| Rated Flow High Range | 234 cfm (6.63 m³/min) |
| Rated Flow Low Range | 152 cfm (5 m³/min) |
| Rated Flow Mid Range | 195 cfm (5.53 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 11 to 11.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| RN24075 |
| 304515 |
| E0304515 |
| E304515 |
| 01402147 |
| DN G065551 |
| DN G065551 |
| 2191-G065551 |
| DONG065551 |
| 1402147 |
