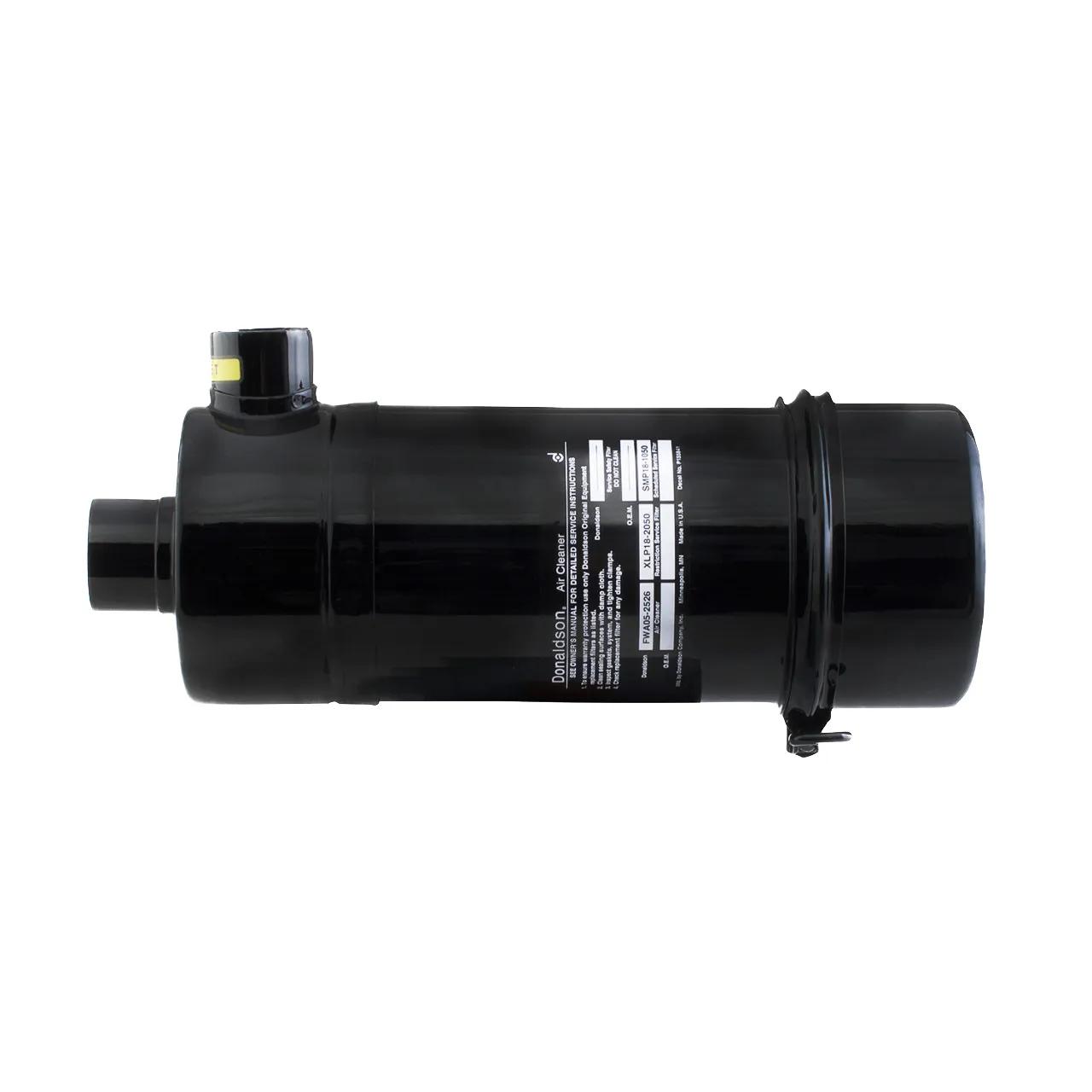

Air Filtration System L: 11,9 in, OD: 2 in, ID: 2 in
#DONA052526
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.25 in (133.4 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FWA |
| Inlet Diameter | 2 in |
| Inner Diameter | 2 in |
| Length | 11.9 in |
| Outlet Diameter | 2 in |
| Overall Length | 16.98 in |
| Rated Flow High Range | 91 cfm |
| Rated Flow Low Range | 71 cfm |
| Rated Flow Mid Range | 81,23 cfm |
| Restriction HR | 10 in H2O |
| Restriction LR | 5.99 in H2O |
| Restriction MR | 8 in H2O |
| Length Range | 11 to 11.99 in |
Interchanges & Equivalent parts:
| 6512160 |
| 300035200 |
| 775478 |
| 561049 |
| 1830531 |
| 81855 |
| 715573 |
| 9576A052526 |
| 38206144 |
| 116276 |
| 716276 |
| 20253 |
| 38204375 |
| 29321396 |
| 0RO23180147 |
| 277100 |
| 810000 |
| 0775478 |
| 2276 |
| DN A052526 |
| DN A052526 |
| 00810000 |
| 2191-A052526 |
| 364200-002 |
| 87276 |
| AF133K |
| DONA052526 |
| PA1690-FN |
| PA1690FNJAB |
