Air Filtration System L: 12,2 in
#DONG052510
Product Overview

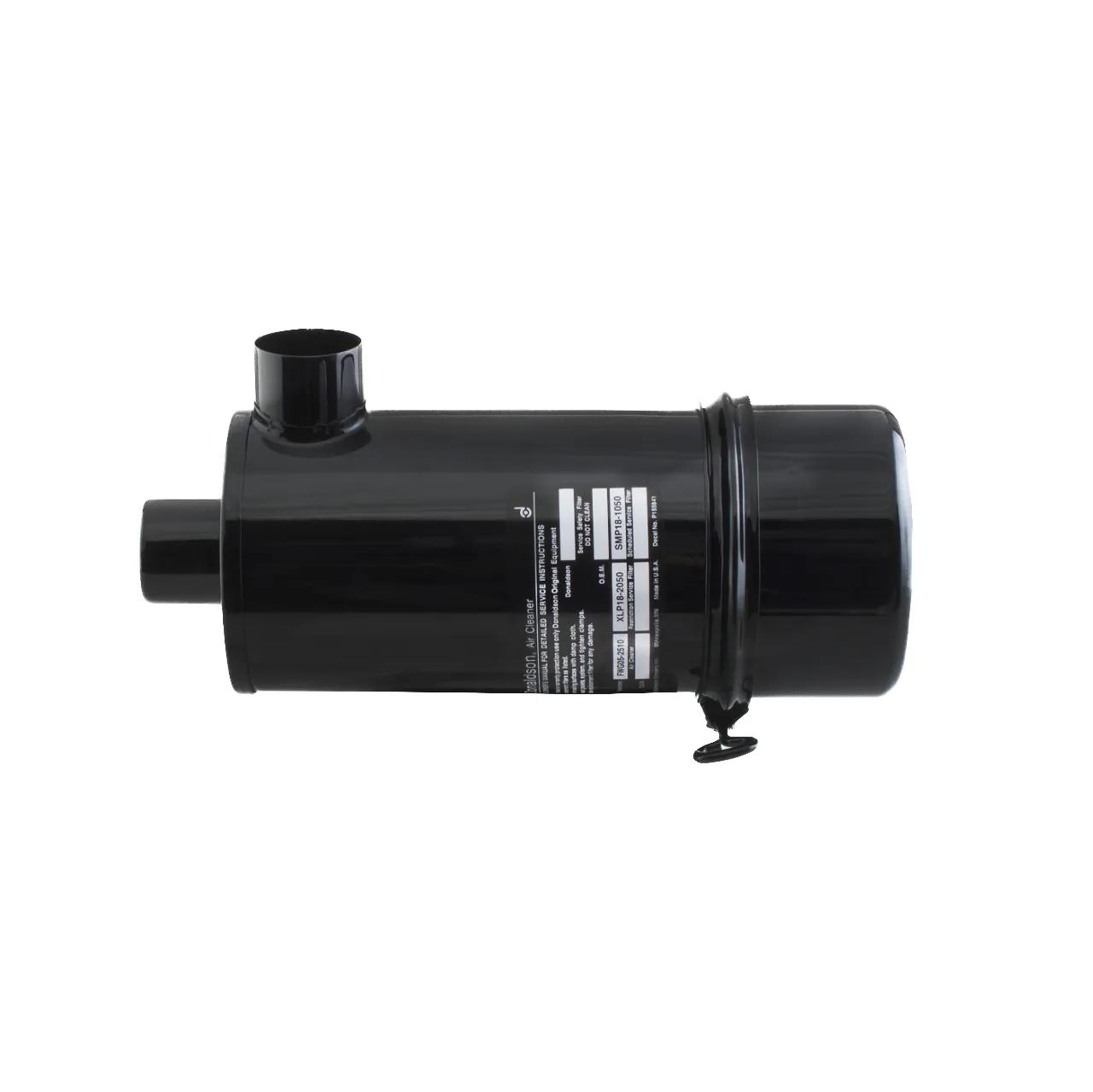

AIR CLEANER, FWG CYCLOPAC
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.25 in (133.4 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FWG |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Length | 12.2 in (309.9 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Rated Flow High Range | 102 cfm (2,9 m³/min) |
| Rated Flow Low Range | 78 cfm (2,2 m³/min) |
| Rated Flow Mid Range | 91,82 cfm (2,6 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 12 to 12.99 in |
Interchanges & Equivalent parts:
| W00052397 |
| 11855 |
| WR11855 |
| 340034 |
| 300036500 |
| 305033500 |
| 66U152621 |
| H152553 |
| 6555271 |
| 1616513 |
| 82404094 |
| 887624 |
| Y0602046227 |
| 605414090008 |
| 119394 |
| 12329690 |
| 9576G052510 |
| D9JL9600A |
| DNG052510 |
| 96231 |
| 4108310 |
| 179948 |
| 122390 |
| 48381 |
| AN150200 |
| 5910061 |
| 853521072 |
| 351479 |
| 43483 |
| 43493 |
| 35178 |
| 17758 |
| 1011299 |
| 275076 |
| 300395 |
| 3300395 |
| 505132 |
| 50220001 |
| F227F502 |
| 3182C44G01 |
| 3182P44G01 |
| 484220 |
| 10000025 |
| 210000025 |
| 53876 |
| 210892001 |
| 218092001 |
| 2180920011 |
| 199206 |
| 35A8260 |
| A0A134 |
| W52397 |
| DN G052510 |
| 00001493 |
| 01400721 |
| 0795960 |
| 096231 |
| 1231969050 |
| 190993 |
| 2191-G052510 |
| 4116483 |
| 415443 |
| 6186791 |
| 62780 |
| 795960 |
| A249753 |
| A8973 |
| AF133K |
| CLE00371 |
| DONG052510 |
| M13376 |
| OC62780 |
| P |
| 1493 |
| 1400721 |
