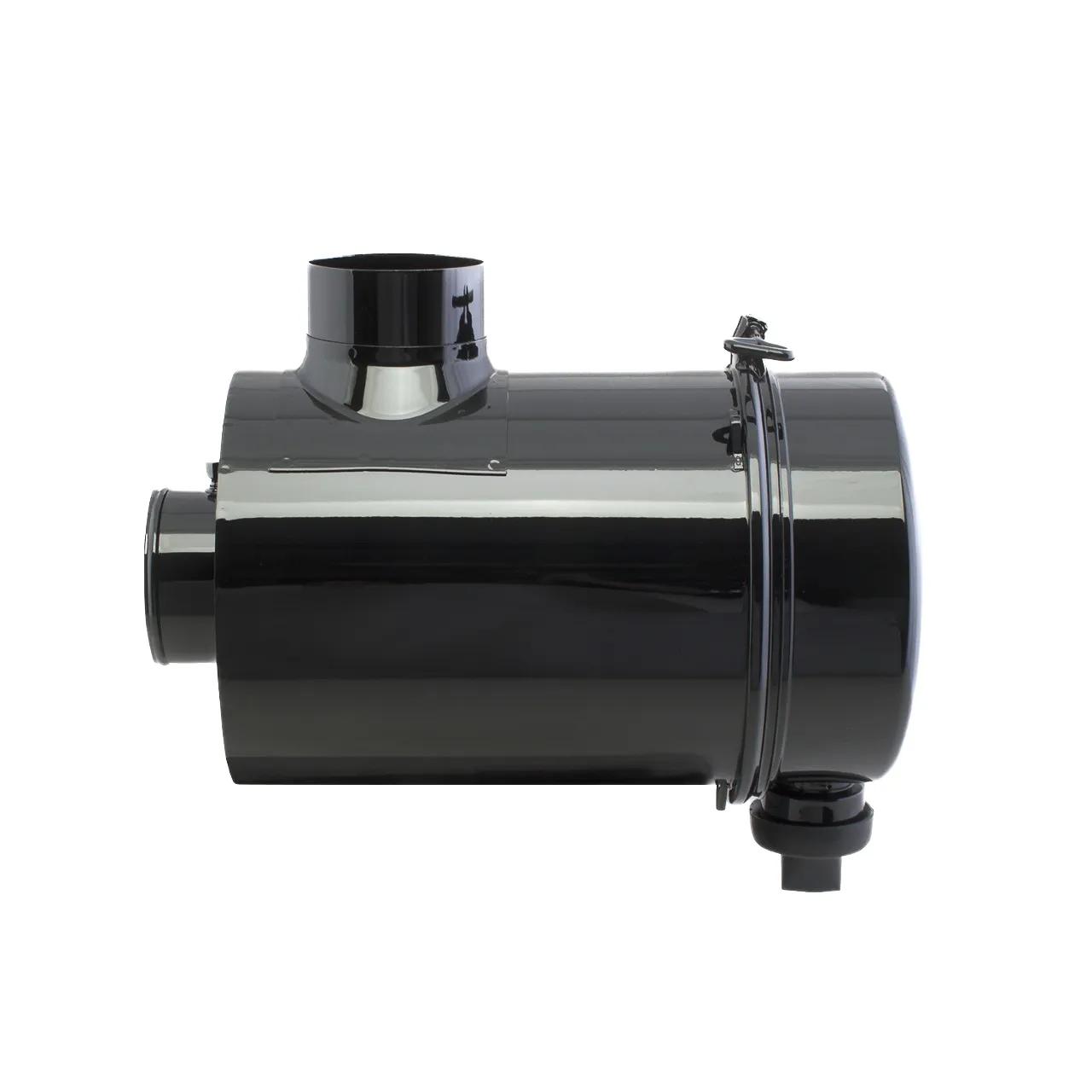

Air Filtration System L: 12,7 in, OD: 5 in
#DONG120417
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11.8 in (299.8 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | FRG |
| Inlet Diameter | 5 in (127 mm) |
| Length | 12.7 in (322.6 mm) |
| Outlet Diameter | 5 in (127 mm) |
| Overall Length | 21.33 in (541.8 mm) |
| Rated Flow High Range | 526 cfm (14.9 m³/min) |
| Rated Flow Low Range | 410 cfm (11.6 m³/min) |
| Rated Flow Mid Range | 459.1 cfm (13 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 12 to 12.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 60012205 |
| N101953 |
| E0304466 |
| 194599 |
| O0023725A |
| 060012205 |
| 2191-G120417 |
| DONG120417 |
| RS5442 |
| RS5443 |
| DN G120417 |
| DN G120417 |
