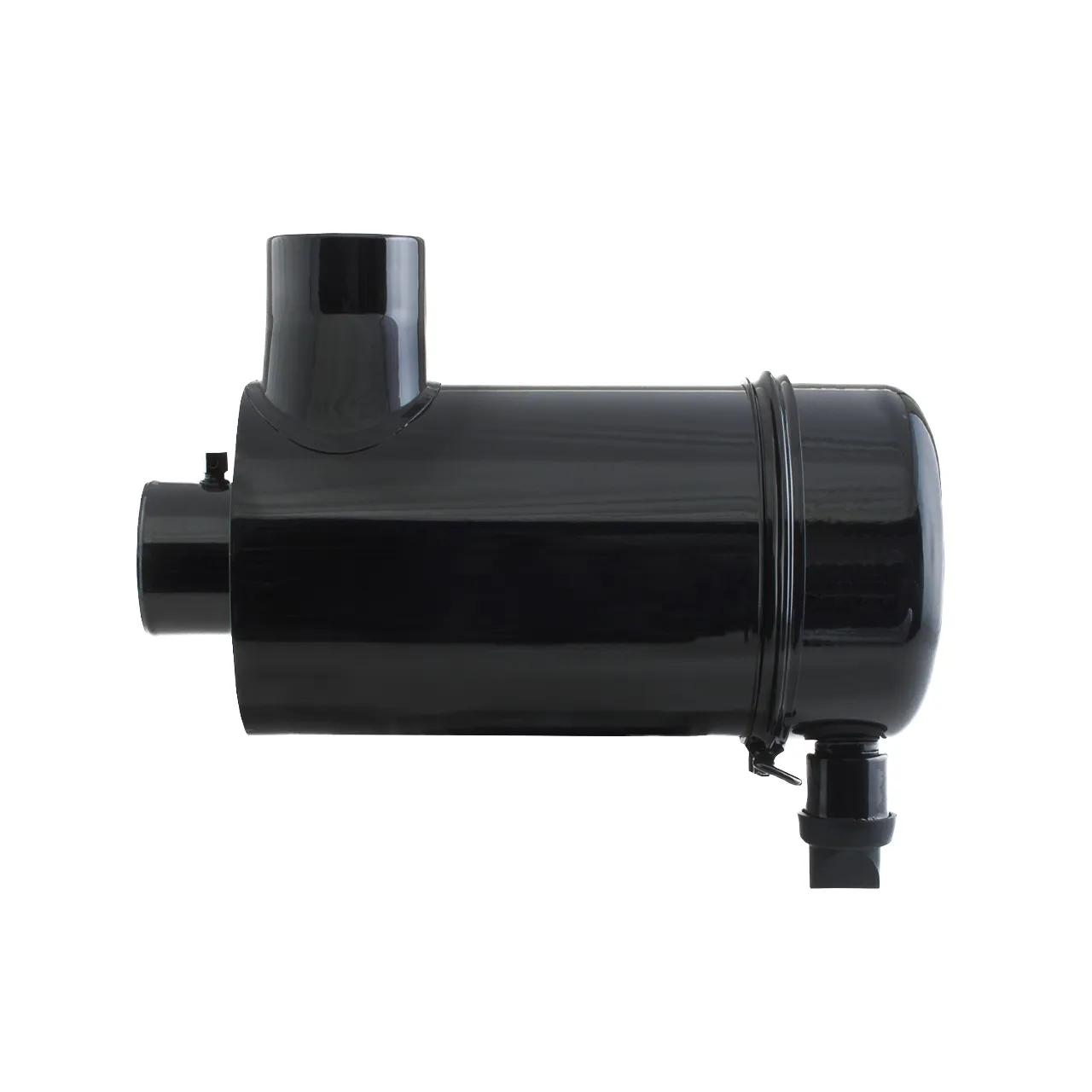

Air Filtration System L: 12,71 in, OD: 3,5 in, ID: 3,75 in
#DONG080585
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8 in (203.2 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FRG |
| Inlet Diameter | 3.74 in (95 mm) |
| Inner Diameter | 3.75 in (95.3 mm) |
| Length | 12.71 in (322.9 mm) |
| Outlet Diameter | 3.5 in (88.9 mm) |
| Overall Length | 18.3 in (464.9 mm) |
| Rated Flow High Range | 287 cfm (8.13 m³/min) |
| Rated Flow Low Range | 223 cfm (7 m³/min) |
| Rated Flow Mid Range | 258 cfm (7.31 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 12 to 12.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 60012201 |
| M12163 |
| G082528 |
| DN G080585 |
| DN G080585 |
| 060012228 |
| 2191-G080585 |
| AF2282 |
| DONG080585 |
| RS3709 |
| RS5395-FN |
| RS5395FN |
| 60012228 |
