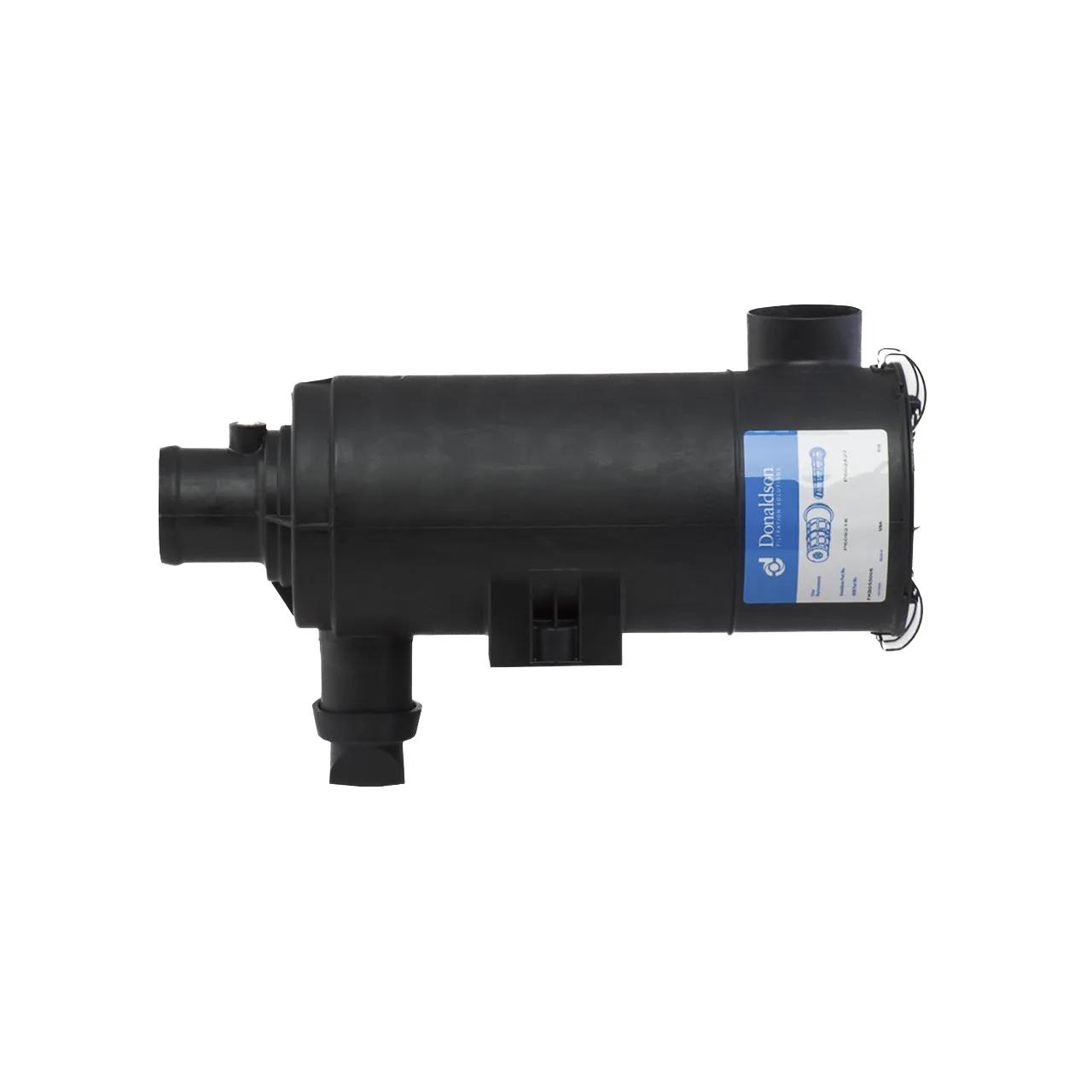

Air Filtration System L: 12,83 in, OD: 2,5 in, ID: 2,5 in
#DONB055006
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.95 in (151.2 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FKB |
| Inlet Diameter | 2.52 in (64.01 mm) |
| Inner Diameter | 2,5 in (63,5 mm) |
| Length | 12.83 in (325.9 mm) |
| Outlet Diameter | 2.5 in (63.5 mm) |
| Overall Length | 15.81 in (401.6 mm) |
| Rated Flow High Range | 156 cfm (4,42 m³/min) |
| Rated Flow Low Range | 117 cfm (4 m³/min) |
| Rated Flow Mid Range | 138 cfm (3,91 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 12 to 12.99 in |
Interchanges & Equivalent parts:
| 2052291 |
| DN B055006 |
| 2191-B055006 |
| DONB055006 |
