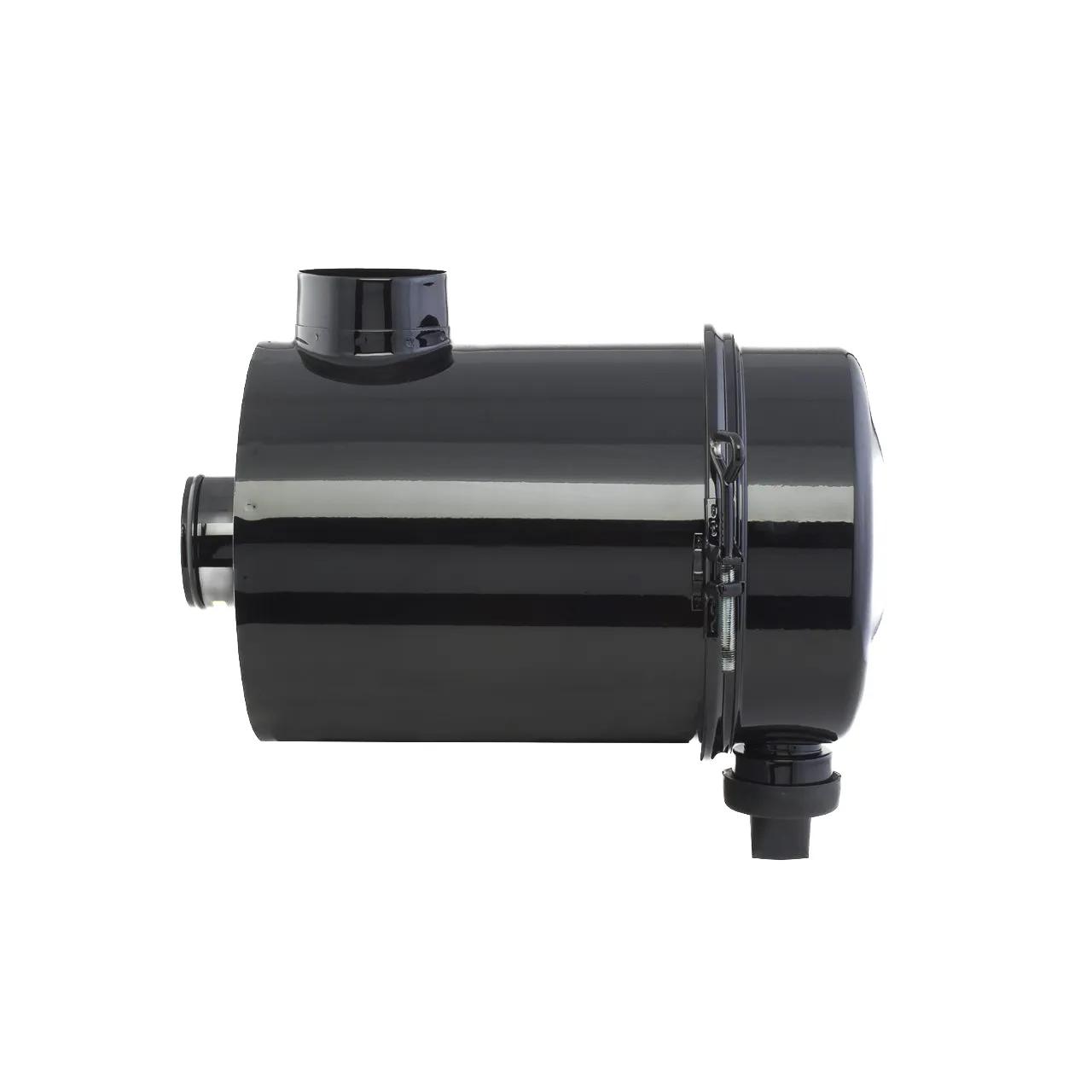

Air Filtration System L: 12,84 in, OD: 4 in
#DONG120063
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11.8 in (299.8 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | FWG |
| Inlet Diameter | 4.49 in (114.05 mm) |
| Length | 12.84 in (326.2 mm) |
| Outlet Diameter | 4 in (101.6 mm) |
| Overall Length | 20.09 in (510.3 mm) |
| Rated Flow High Range | 487 cfm (13,8 m³/min) |
| Rated Flow Low Range | 368 cfm (10,4 m³/min) |
| Rated Flow Mid Range | 434,38 cfm (12,3 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 12 to 12.99 in |
Interchanges & Equivalent parts:
| FWG120063 |
| 14498 |
| 351968 |
| 29P68 |
| 114113800 |
| 853521154 |
| 20186 |
| 887977C91 |
| 150KUH |
| 150KVH |
| Y0602046255 |
| 3505H2 |
| 5140569001 |
| 5300308006 |
| 7304000088 |
| 140373803 |
| 179968 |
| 811081500 |
| 207133 |
| P29400 |
| 1455855 |
| 580003010 |
| 18162F2 |
| 410177 |
| 769194 |
| 9217942 |
| 61100121 |
| DN G120063 |
| 09217942 |
| 014498 |
| AF97K |
| DONG120063 |
| PA1646-FN |
| PA1646FN |
| DN G120063 |
