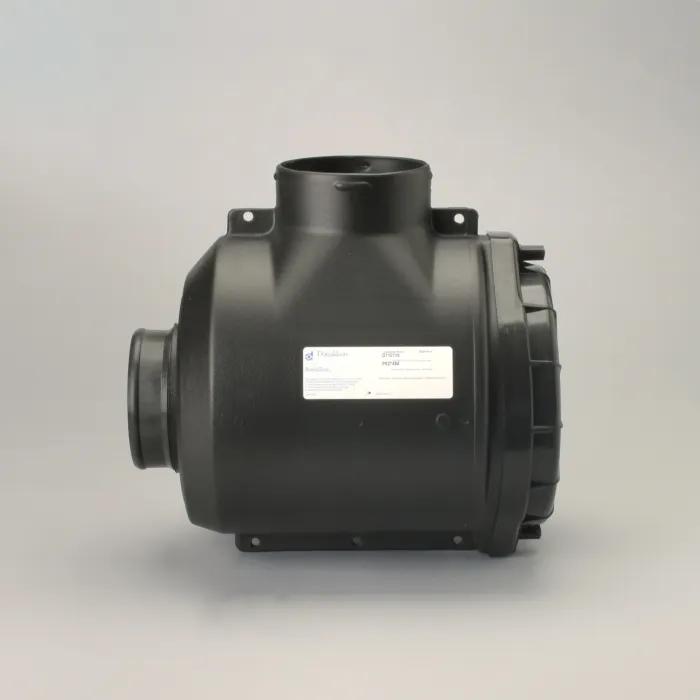

Air Filtration System L: 12,87 in
#DONG110120
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 10.87 in (276.1 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | EPG |
| Inlet Diameter | 5.51 in (139.96 mm) |
| Length | 12.87 in (326.9 mm) |
| Outlet Diameter | 5 in (127 mm) |
| Rated Flow High Range | 526 cfm (14.9 m³/min) |
| Rated Flow Low Range | 371 cfm (10.5 m³/min) |
| Rated Flow Mid Range | 473 cfm (13.4 m³/min) |
| Restriction HR | 7.99 IN H2O |
| Restriction LR | 4.02 IN H2O |
| Restriction MR | 5.98 IN H2O |
| Length Range | 12 to 12.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| EPG110120 |
| MXT50304000AA |
| 2590346C1 |
| 2590346C91 |
| 28174112 |
| 28174122 |
| 61100189 |
| DN G110120 |
| DN G110120 |
| 2191-G110120 |
| AF2093 |
| AF2193 |
| DONG110120 |
| RS2863XP |
