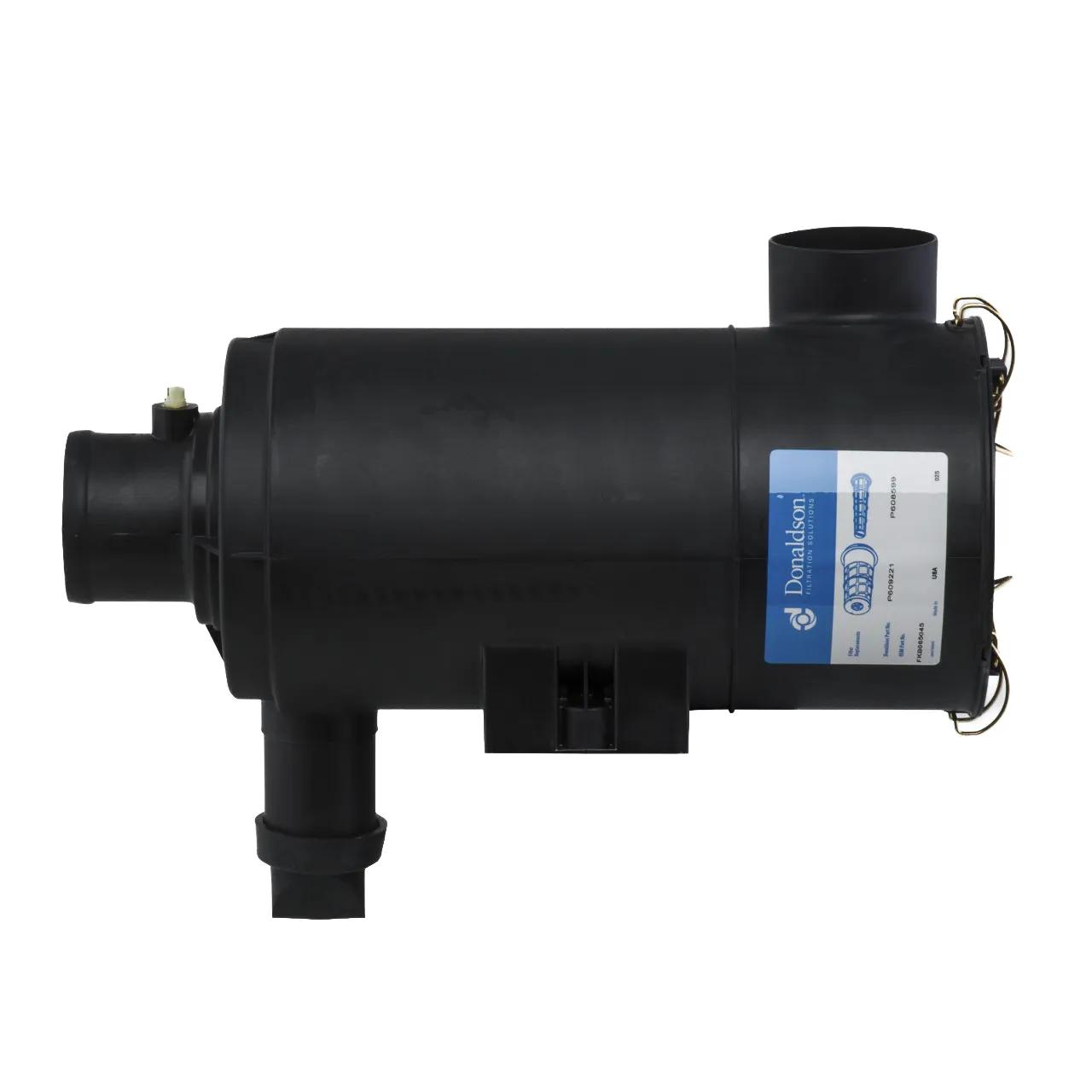

Air Filtration System L: 13,01 in, OD: 3 in, ID: 3 in
#DONB065045
Product Overview
AIR CLEANER, FKB CYCLOFLOW
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 7.09 in (180.1 mm) |
| Diameter Range | 3 to 3.99 in |
| Family | FKB |
| Inner Diameter | 3 in (76,2 mm) |
| Length | 13.01 in (330.5 mm) |
| Outer Diameter | 3 in (76.2 mm) |
| Overall Length | 16.06 in (408 mm) |
| Rated Flow High Range | 209 cfm (5,92 m³/min) |
| Rated Flow Low Range | 156 cfm (5 m³/min) |
| Rated Flow Mid Range | 184 cfm (5,22 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 13 to 13.99 in |
Interchanges & Equivalent parts:
| 3093972 |
| 1001080390 |
| KPCE023 |
| 1945P00301 |
| PA5635 |
| DN B065045 |
| 2191-B065045 |
| DONB065045 |
| PA5634 |
