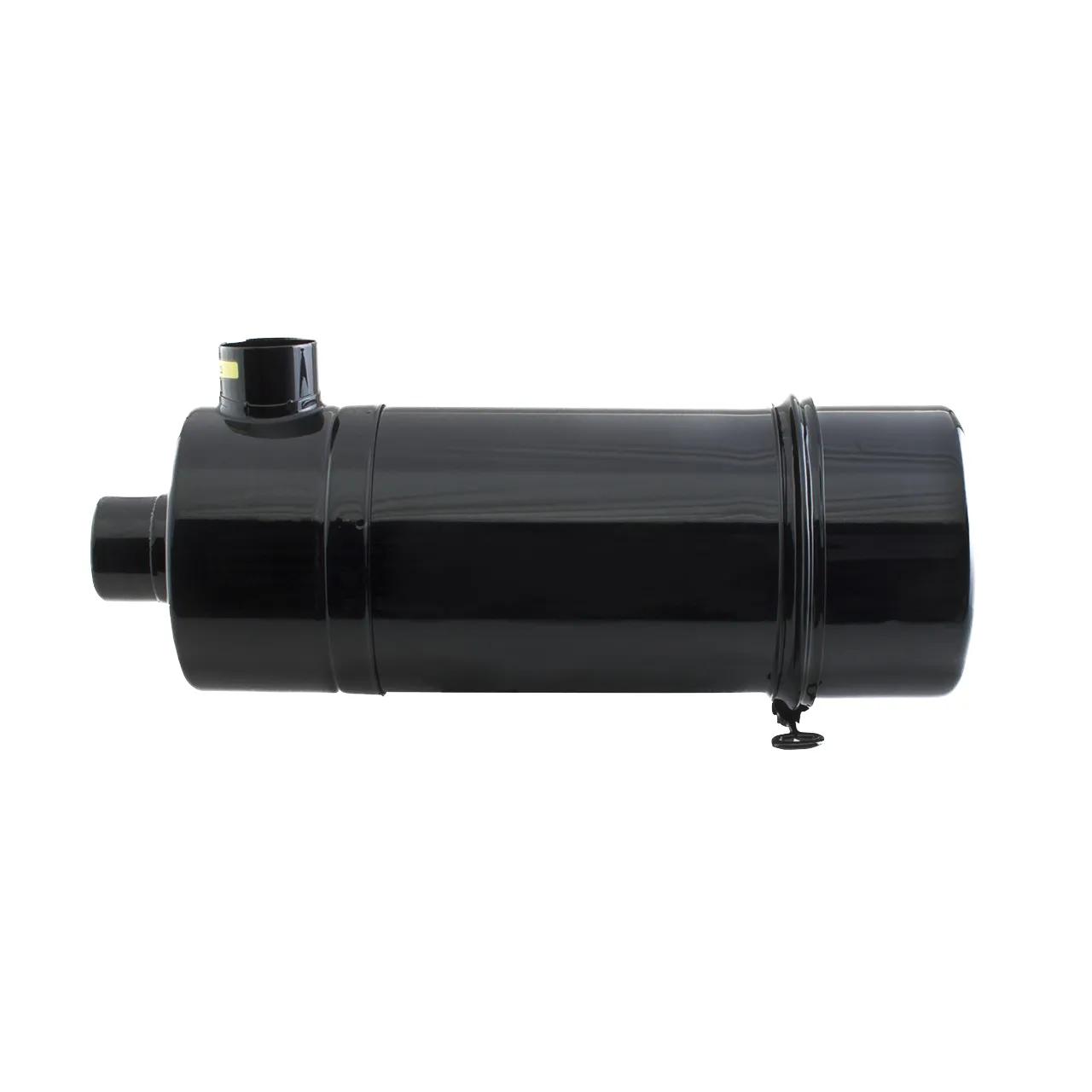

Air Filtration System L: 13,52 in, OD: 2,25 in, ID: 2,5 in
#DONA065007
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 6,5 po (165,1 mm) |
| Plage de diamètre | 6 à 6.99 po |
| Famille | FWA |
| Diamètre d'entrée | 2,52 po (64,01 mm) |
| Diamètre intérieur | 2,5 po (63,5 mm) |
| Longueur | 13,52 po (343,5 mm) |
| Diamètre de sortie | 2,25 po (57,15 mm) |
| Longueur totale | 19,32 po (490,7 mm) |
| Gamme haute de débit nominal | 124 cfm (3,52 m³/min) |
| Plage basse de débit nominal | 99 cfm (2,8 m³/min) |
| Milieu de gamme de débit nominal | 114 cfm (3,23 m³/min) |
| Restriction FC | 10 po H20 (254 mm H20) |
| Restriction LR | 5,99 po H20 (152,1 mm H20) |
| Restriction MR | 8 po H20 (203,2 mm H20) |
| Length Range | 13 à 13.99 po |
Interchanges & Equivalent parts:
| 6634040 |
| TA64000041 |
| 1849010 |
| H129536 |
| 561107 |
| 7306500711 |
| 61622083 |
| 61622085 |
| MG10311 |
| B1150576 |
| 90921 |
| 38206145 |
| 400000634 |
| 4149022KZ019922 |
| 38204379 |
| 108722 |
| 215017 |
| R740240 |
| 41254 |
| 810001 |
| 1622085 |
| 35A12422 |
| DN A065007 |
| 090921 |
| 020002 |
| 00810001 |
| 061622083 |
| 061622085 |
| 2191-A065007 |
| 87222 |
| AF129K |
| DONA065007 |
| PA1667FN |
| DN A065007 |
