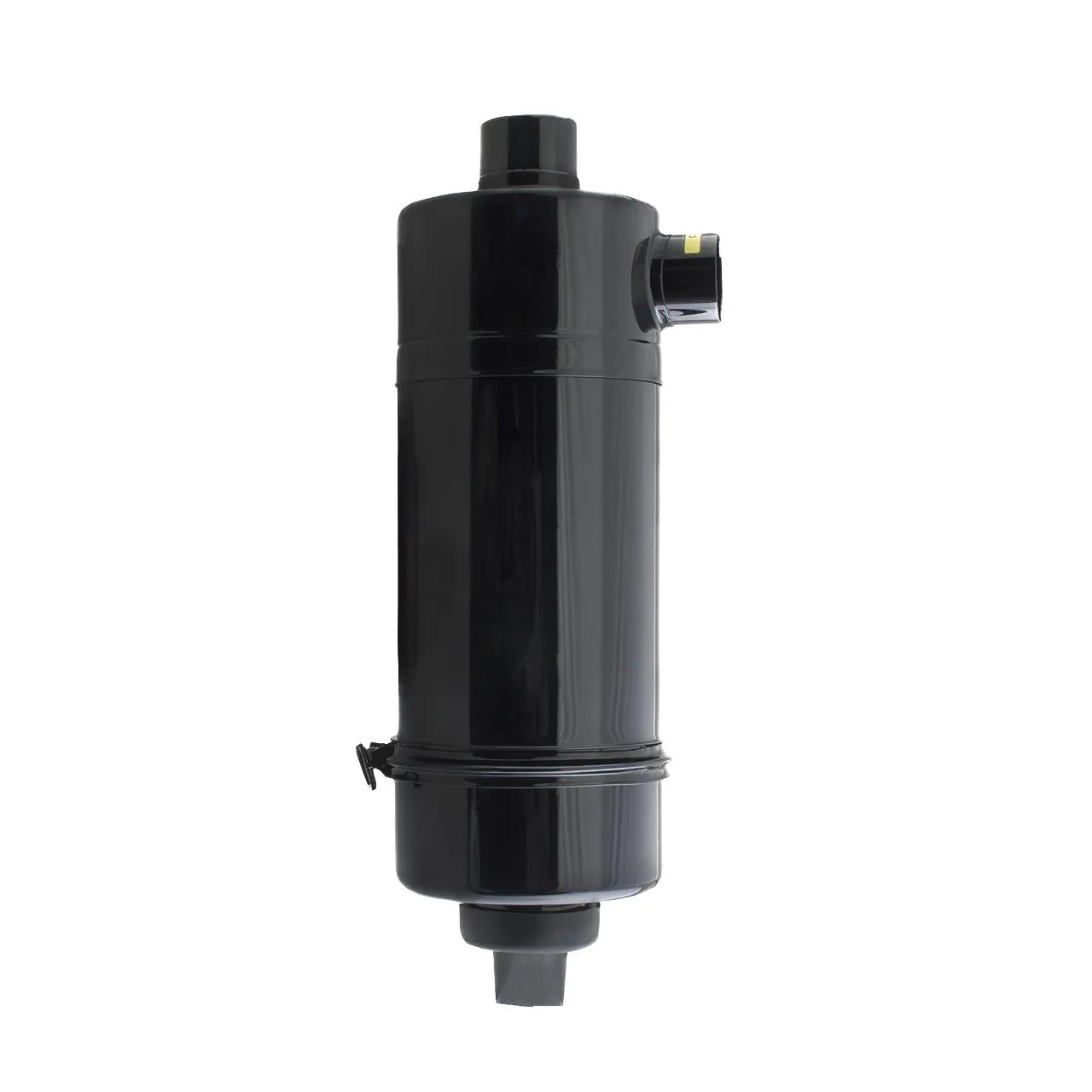

Air Filtration System L: 13,52 in, OD: 2,5 in, ID: 2,5 in
#DONA065015
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
6.5 in (165.1 mm) |
| Diameter Range |
6 to 6.99 in |
| Family |
FWA |
| Inlet Diameter |
2.52 in (64.01 mm) |
| Inner Diameter |
2,5 in (63,5 mm) |
| Length |
13.52 in (343.5 mm) |
| Outlet Diameter |
2.25 in (57.15 mm) |
| Overall Length |
21.83 in (554.5 mm) |
| Rated Flow High Range |
124 cfm (3,52 m³/min) |
| Rated Flow Low Range |
99 cfm (2,8 m³/min) |
| Rated Flow Mid Range |
114 cfm (3,23 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5,99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
13 to 13.99 in |
| A065015 |
| 2504126 |
| 70659389 |
| 29321374 |
| 1901166 |
| 191166 |
| L0189 |
| 2146001 |
| 21460011 |
| 048049 |
| 020481 |
| 2191-A065015 |
| 87222 |
| AF129K |
| DONA065015 |
| PA1667FN |
| DN A065015 |
| 20481 |
See more
