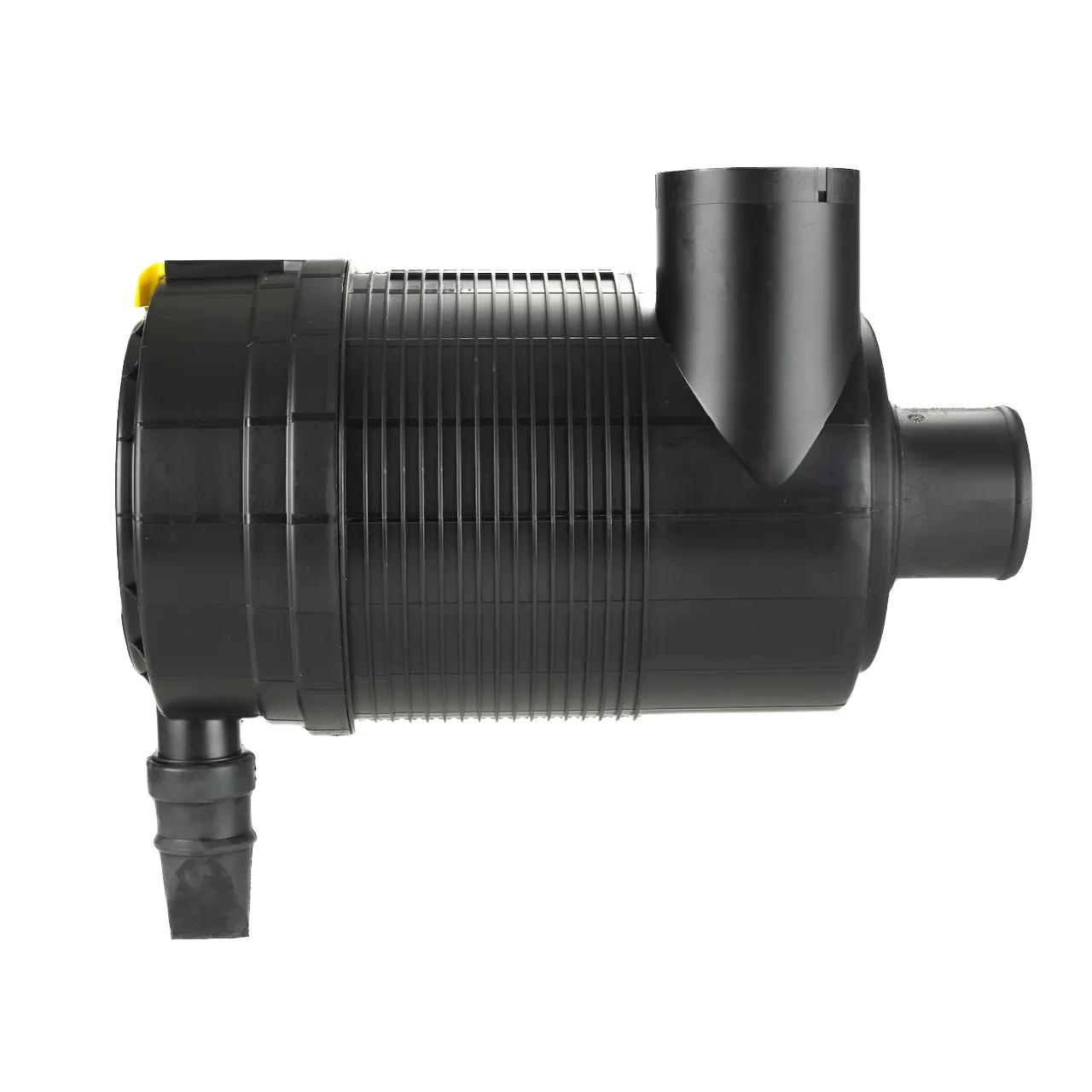

Air Filtration System L: 13,8 in, OD: 4 in
Product Overview
Specifications
| Diameter | 10.55 in (268 mm) |
| Diameter Range | 10 to 11 in |
| Family | FPG |
| Inlet Diameter | 4.49 in (114.05 mm) |
| Length | 13.8 in (350.6 mm) |
| Outlet Diameter | 4 in (101.6 mm) |
| Overall Length | 20.3 in (515.7 mm) |
| Rated Flow High Range | 329 cfm (9.32 m³/min) |
| Rated Flow Low Range | 258 cfm (8 m³/min) |
| Rated Flow Mid Range | 297 cfm (8.42 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Standard Length | 13 to 14 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
DONG100036, G100036, 2191-G100319, AF2332, AF2353, DN G100319, DN G100319, DONG100319, RS3734XP, 0701066, 10866107, 1849261, 2044798, 205985, 21000033, 2262134, 28063A, 311130002A, 31130002A, 3154698R91, 344826, 3546001, 4134340, 4146772, 5802097, 64400575, 66107X, 701066, 7304000093, 737493, 7700058783, 79454, 8273016, 83671048, 9209690034, 948272M91, A100319, FPG100319, N08566, N1009010H, R36360, R48001, DONG100319, RS3734XP, AF2353, DN G100319, DN G100319, AF2332, DONG100036, G100036, R48001, A100319, 64400575, 2044798, 4134340, 7700058783, 2262134, 948272M91, 5802097, 737493, FPG100319, 28063A, 21000033, 66107X, R36360, 701066, 344826, 0701066, 3546001, N1009010H, 3154698R91, 79454, 7304000093, 31130002A, 311130002A, 9209690034, 83671048, N08566, 8273016, 1849261, 4146772, 205985, 10866107, 2191-G100319, 463178, 7310002933, 7310003633, 802147, 802146, 4700802146, 604116, HD2470, HD2450, 4430113, 20058, 20056, 1000066891, 2102106058, 810116, 810114
