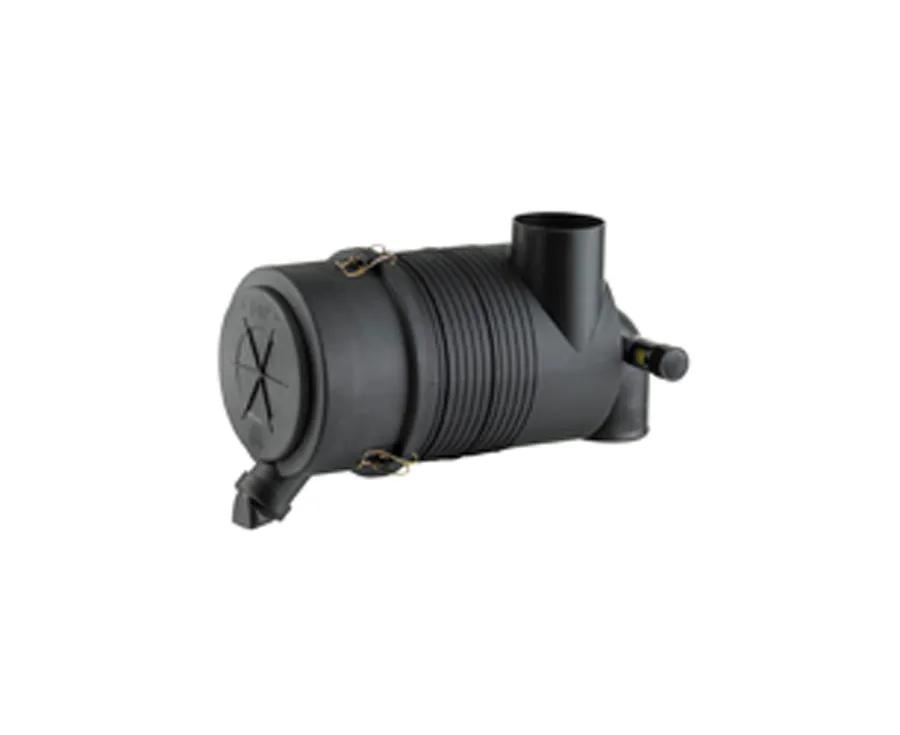

Air Filtration System L: 13,8 in, OD: 4 in
#DONG100317
Product Overview
Air cleaner, fpg radialseal alexin
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 10.55 in (268 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | FPG |
| Inlet Diameter | 4.49 in (114.05 mm) |
| Length | 13.8 in (350.6 mm) |
| Outlet Diameter | 4 in (101.6 mm) |
| Overall Length | 19.22 in (488.2 mm) |
| Rated Flow High Range | 315 cfm (8.92 m³/min) |
| Rated Flow Low Range | 248 cfm (8 m³/min) |
| Rated Flow Mid Range | 283 cfm (8.02 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 13 to 13.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| FPG100317 |
| 003001004000C |
| AU116315 |
| 1310035552 |
| 76082937 |
| N100262 |
| 7700059769 |
| 7700059769A |
| A7120100A |
| 52930 |
| 87490611 |
| 2928880 |
| 2102106021 |
| DN G100317 |
| DN G100317 |
| 4271435M91 |
| AF2332 |
| AF2353 |
| DONG100317 |
| RS3734XP |
