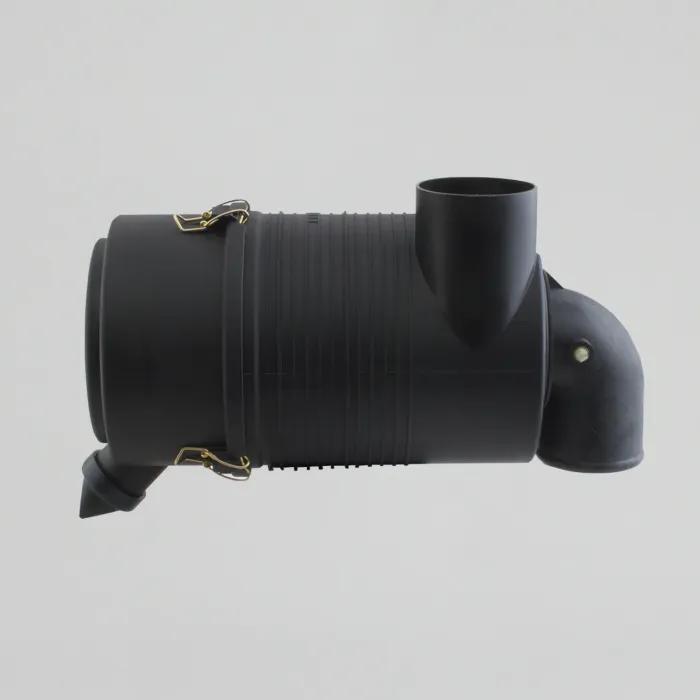

Air Filtration System L: 14,21 in
#DONG082528
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8.35 in (212.1 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FPG |
| Inlet Diameter | 3.74 in (95 mm) |
| Length | 14.21 in (361 mm) |
| Outlet Diameter | 3.5 in (88.9 mm) |
| Rated Flow High Range | 276 cfm (7.82 m³/min) |
| Rated Flow Low Range | 205 cfm (6 m³/min) |
| Rated Flow Mid Range | 244 cfm (6.91 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 14 to 14.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 34179 |
| 53290 |
| T487611011 |
| Y0602046582 |
| 120081 |
| 120081A |
| L69304 |
| 80273009 |
| 1006339 |
| M06311 |
| 59030023 |
| 2120212 |
| 69A0462 |
| 224847001 |
| 2248470011 |
| 22487001 |
| DN G082528 |
| DN G082528 |
| WR34179 |
| NX14210059 |
| F8JL9600AA |
| 2940014664212 |
| 1403057 |
| 18174088 |
| 01403057 |
| AF2270 |
| AF2286 |
| DONG082528 |
