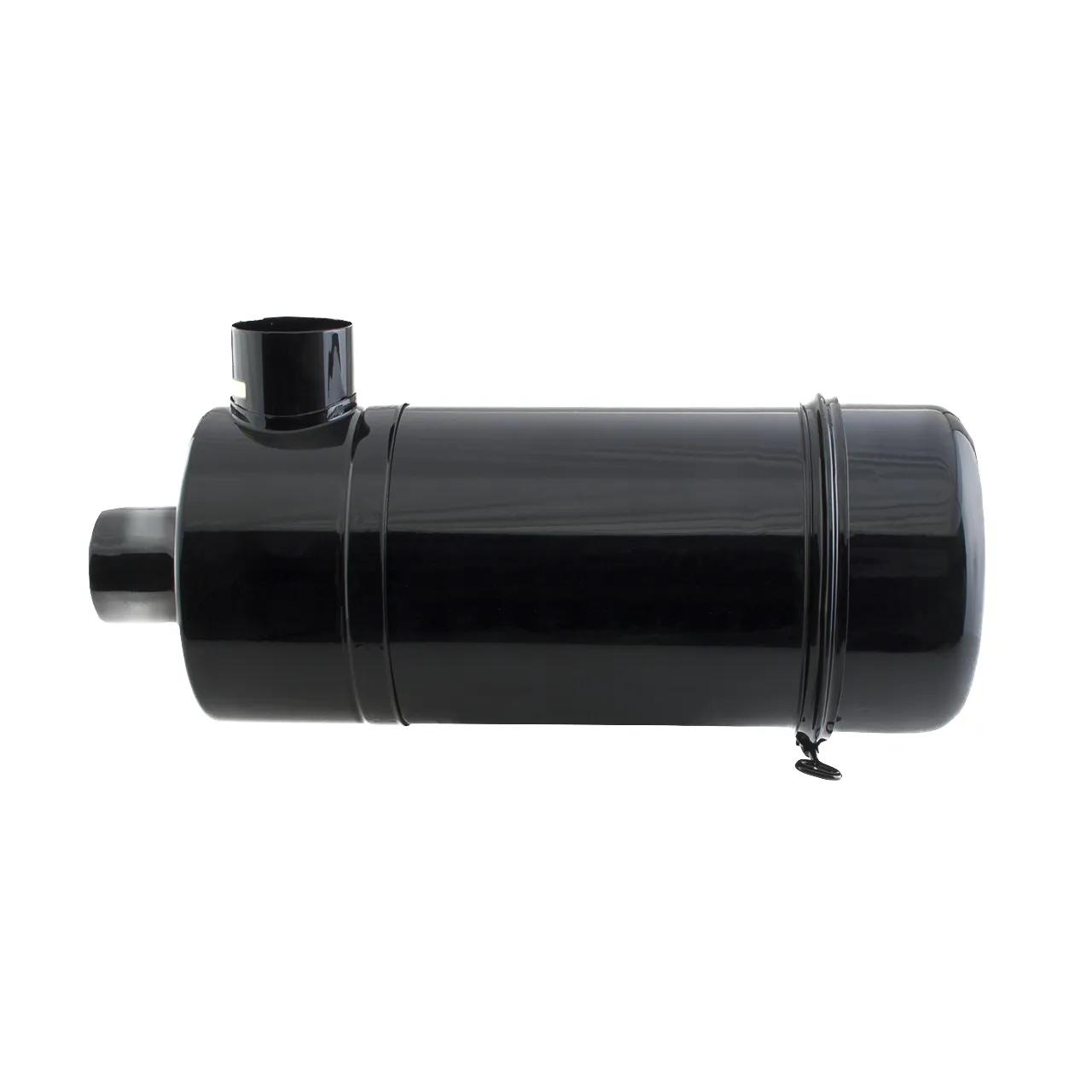

Air Filtration System L: 15,03 in, OD: 3 in, ID: 3 in
#DONA080022
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8 in (203.2 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FWA |
| Inlet Diameter | 2.99 in (75.95 mm) |
| Inner Diameter | 3 in (76,2 mm) |
| Length | 15.03 in (381.8 mm) |
| Outlet Diameter | 3 in (76.2 mm) |
| Rated Flow High Range | 227 cfm (6,43 m³/min) |
| Rated Flow Low Range | 174 cfm (5 m³/min) |
| Rated Flow Mid Range | 202 cfm (5,73 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 15 to 15.99 in |
Interchanges & Equivalent parts:
| 328181 |
| 778185 |
| 4569000120 |
| 201548 |
| 988672 |
| Q1150520 |
| 3749420 |
| 605414090025 |
| 69008764 |
| 69008769 |
| D2NFWA080022 |
| 4134198 |
| 5271823 |
| 9576A080022 |
| C7JZ9600C |
| DNA080022 |
| 9VX13113 |
| 60156 |
| 912149 |
| HD2620 |
| 38206420 |
| 60196 |
| 63012149 |
| 59512731 |
| 59623017 |
| 10724311 |
| 1340017 |
| 8097740 |
| 43790 |
| P24311 |
| A014090001 |
| LL847157 |
| 409917 |
| 2403061 |
| TD427F432 |
| UT41251 |
| 38000AA |
| 810002 |
| P310086 |
| 08097740 |
| 0778185 |
| 00810002 |
| 2126 |
| 2191-A080022 |
| DN A080022 |
| DN A080022 |
| 87126 |
| AF132K |
| DONA080022 |
| PA1681-FN |
