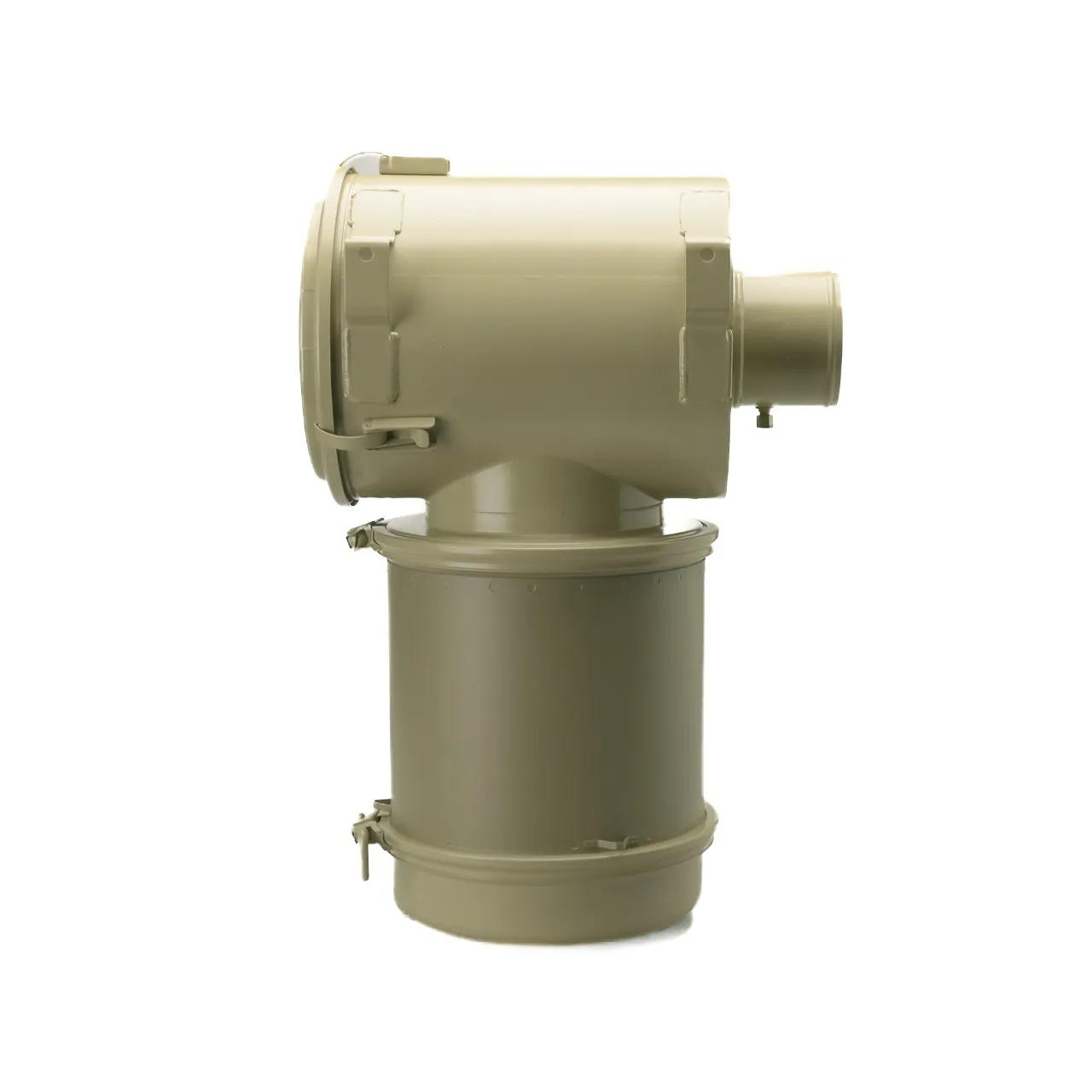

Air Filtration System L: 15,43 in, OD: 5 in, W: 14,76 in
#DONG120332
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
11.8 in (299.8 mm) |
| Diameter Range |
11 to 11.99 in |
| Family |
STG |
| Inlet Diameter |
5 in (127 mm) |
| Length |
15.43 in (392 mm) |
| Outlet Diameter |
5 in (127 mm) |
| Rated Flow High Range |
515 cfm (14.6 m³/min) |
| Rated Flow Low Range |
389 cfm (11 m³/min) |
| Rated Flow Mid Range |
455.56 cfm (12.9 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
15 to 15.99 in |
| Style |
Tubular |
| Width |
14.76 in (375 mm) |
| G120332 |
| P0850553 |
| A075060 |
| P850553 |
| 1X8139 |
| 15914 |
| 4710001 |
| HD9790 |
| GD1415937 |
| 37216704SUB |
| 9018191 |
| 810128 |
| DN G120332 |
| 04710001 |
| 00810128 |
| 2191-G120332 |
| AF327 |
| AF328 |
| DONG120332 |
| G120045 |
| DN G120332 |
