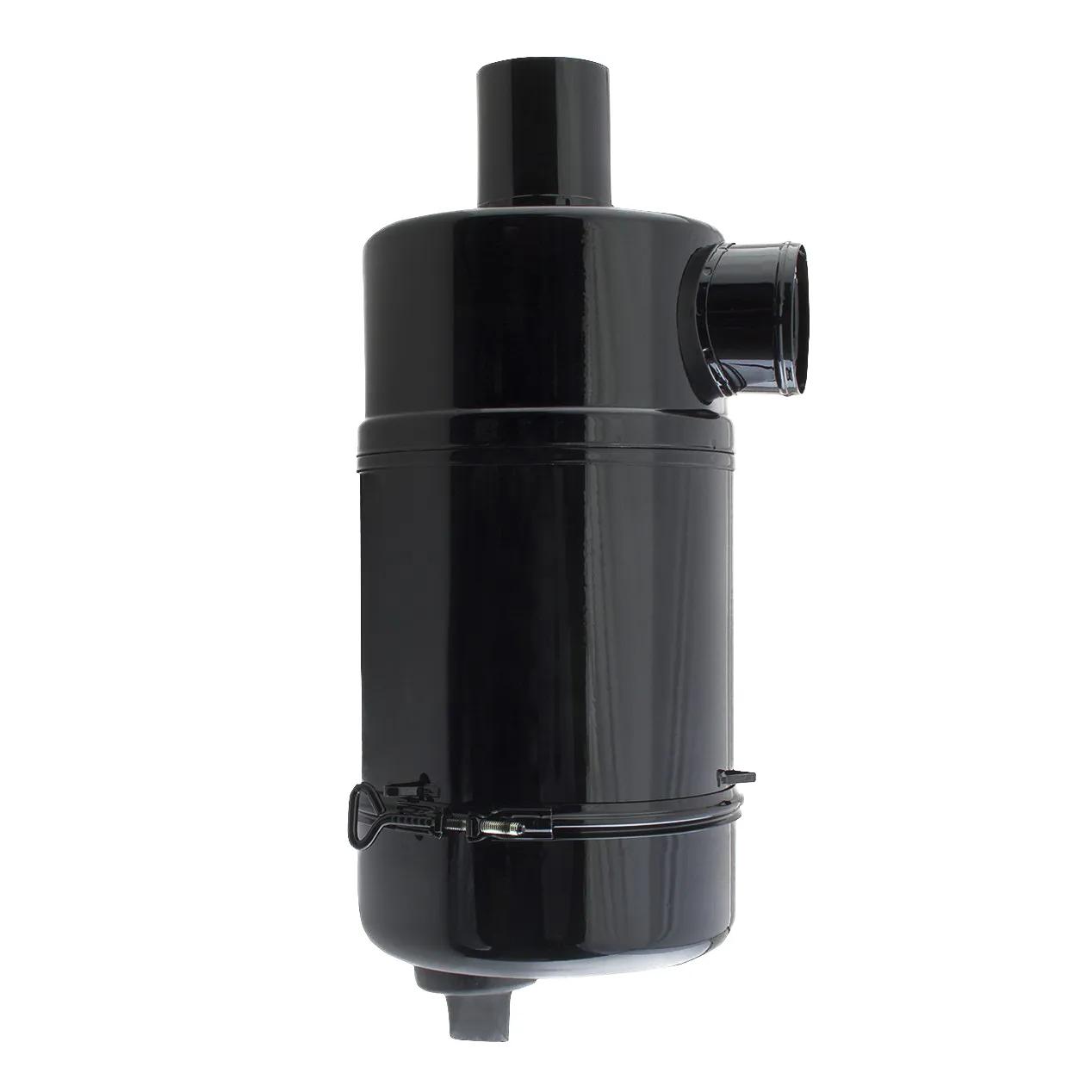

Air Filtration System L: 15,89 in, OD: 4 in, ID: 3,75 in
#DONA100019
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 10.2 in (259.08 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | FWA |
| Inlet Diameter | 3.74 in |
| Inner Diameter | 3,75 in (95,3 mm) |
| Length | 15.89 in |
| Outlet Diameter | 4 in |
| Overall Length | 26.76 in |
| Rated Flow High Range | 332 cfm |
| Rated Flow Low Range | 255 cfm |
| Rated Flow Mid Range | 297 cfm |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O |
| Restriction MR | 8 in H2O |
| Length Range | 15 to 15.99 in |
Interchanges & Equivalent parts:
| A100019 |
| ENE0087 |
| 853521163 |
| FWA100019 |
| 885767C91 |
| 116706 |
| 985200019 |
| 70659388 |
| 154513 |
| 2191A100019 |
| RD551490 |
| 64116706 |
| 1522781 |
| 69037100 |
| 810708000 |
| 2153001 |
| 21530011 |
| AF130K |
| DONA100019 |
| PA1636-FN |
| DN A100019 |
| DN A100019 |
